Bricked Tox 3 Tv Box - help with recovery

Help & Support Recovery
1

Dear Colleagues,
I have managed to brick a Tox 3 Android Box with a s905X4 Chipset.
I attach three pictures of the circuit boards:
S905X4 Amlogic Board Tox 3 Android Box - Album on Imgur

I’m not sure where the NAND Flash chip is in order to use the short pin method?.
Any help is appreciated.
Thanks

2

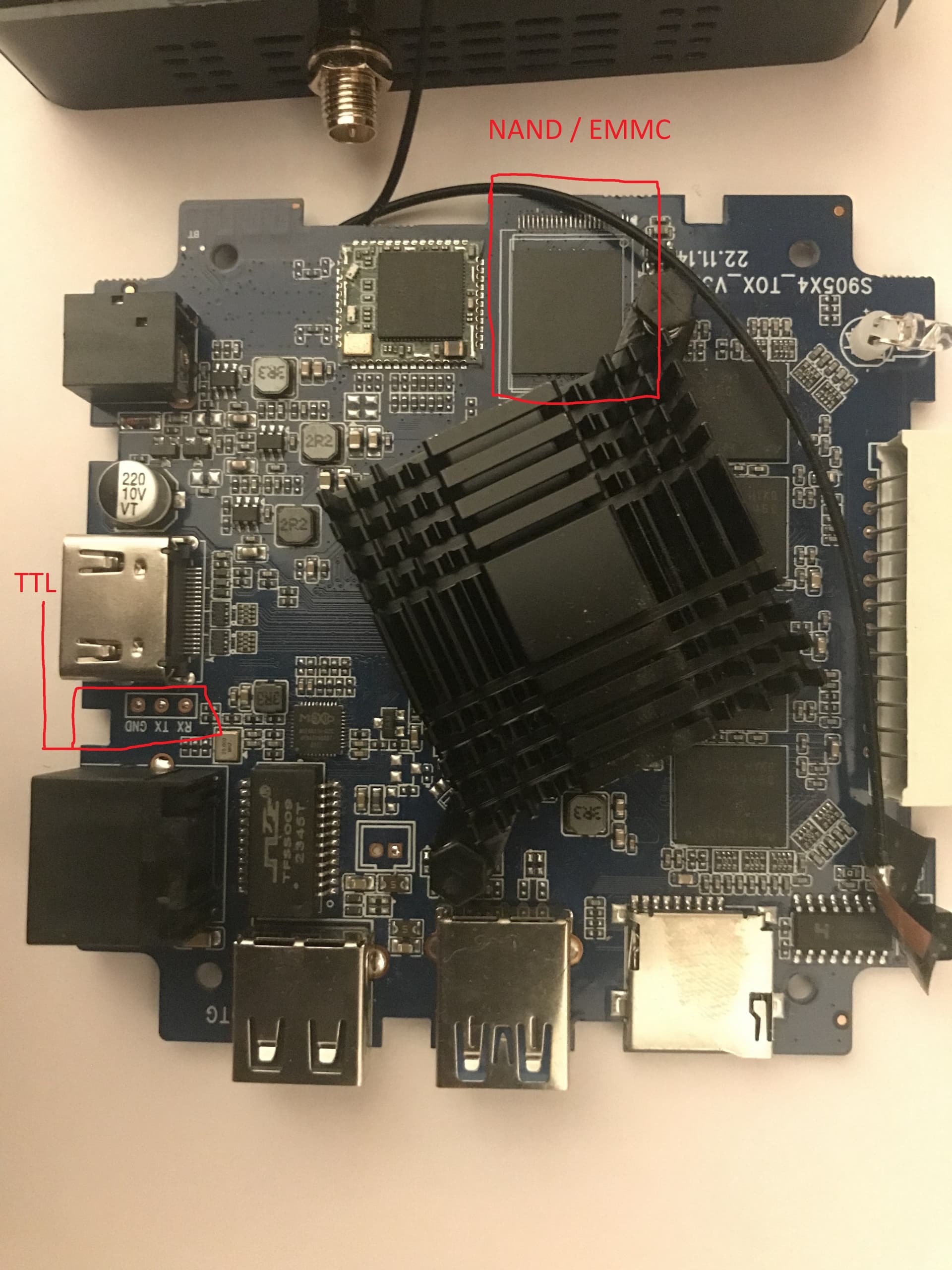

i have marked the chip and the ttl connections on the board

shHehsc
shHehsc1920×2560 329 KB

you maybe must remove the cooler to reach the second halve of pins to use the short pin method

3

Dear Moglyn,
Thank you and appreciated.
Can I ask:

  1. How do I remove the heatsink as there are two (that look like) black bolts at the top and bottom corner. Picture: Imgur: The magic of the Internet
  2. What is the TTL for?
  3. What’s the best ‘accurate’ tool for shorting the pins ? (is there a specific electricians tool for doing this).
    Thanks.
4

1 They are plastic/spring loaded, flip PCB over and use needle nose pliers and pinch tabs to push out./ try not to cut them off so can be reinserted

2.TTL is for U- art serial communication

3.some like to use Automotive 12 volt tester/probe has a fine point on end
Tweezers ,

1 Like
5

Thank you guys - will update you in regards to progress
