Strange, I have the same device as you, with the same firmware too and I’m using the sc2_s905x4_4g_1gbit.dtb.
Can you still logon with SSH through WiFi? What do you see if you type “ethtool eth0” ?
Also, I read somewhere on this forum that you have to run “ethtool -s eth0 speed 1000 duplex full autoneg off” to get ethernet working on the Dune (although that’s not necessary in my case).
That was the first device tree that I tried. I did not know it was an issue with the drivers. So, I started testing all of my Ethernet connections.
Tried another device tree and the same thing, no connection.
Finally re-read this thread and another person had the same issue, but the Ugoos device tree worked for him and it worked for me.
I did NOT even try to test anything with WiFi.
I received my Dune Homatics box about a year or more ago. When did you receive your box?? Perhaps they have different Ethernet “cards” internally.
Mine is from April 2023. I’m in Europe and I ordered it from Amazon Netherlands.
It appears that your is “older” than mine. I really don’t want to open it up to see what hardware is inside. Getting too old and can’t see very well anyway.
I ordered mine directly from Dune, as I recall.
Yes can confirm
My Kinhank G1 thinks it is Ugoos X4
Running linux version 4.9.269 (docker@…
Unreal
Ran ethtool eth0|grep -i speed
Comes back as 1000Mb/s
Wondering if there is a new pcb rev in G1, as we could not get gbit running in April…
This is not a speed test! The chip is capable of 1gbit but only 100mbit does actually work.
There should be a 4.9 dtb for the devices soon in nightly…
My report for Nokia 8010 (kernel 5.4.242, nokia sw version 12.8.5221) regading DV FEL and using CE NG 21.1.1 (sc2_s905x4_4g_1gbit.dtb) stable on LG oled C2 tv.
Note: I was previously using NE 21.1.1
I used iperf3 test it get 1gbit，Isn’t it actually speed？How can I test actually speed.

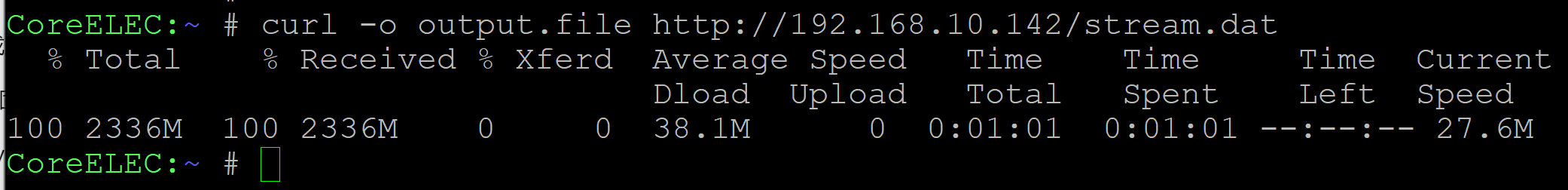

try download any file test via wget command ssh
and see speed download
Run both client and server to test both ways.
When i connect direct to modem
Command returns 1000mb/s
When i connect to router with only 100mb port
Command returns 100mb/s
Good news is dedicated DTB on its way!!!
Thx Portisch
Team CoreELEC
CoreELEC:~ # iperf3 -c 192.168.10.142
Connecting to host 192.168.10.142, port 5201
[ 5] local 192.168.10.201 port 52228 connected to 192.168.10.142 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 111 MBytes 930 Mbits/sec 0 342 KBytes
[ 5] 1.00-2.00 sec 111 MBytes 931 Mbits/sec 0 485 KBytes
[ 5] 2.00-3.00 sec 111 MBytes 929 Mbits/sec 0 552 KBytes
[ 5] 3.00-4.00 sec 112 MBytes 943 Mbits/sec 0 570 KBytes
[ 5] 4.00-5.00 sec 111 MBytes 931 Mbits/sec 0 605 KBytes
[ 5] 5.00-6.00 sec 111 MBytes 929 Mbits/sec 0 605 KBytes
[ 5] 6.00-7.00 sec 111 MBytes 933 Mbits/sec 0 605 KBytes
[ 5] 7.00-8.00 sec 111 MBytes 931 Mbits/sec 111 435 KBytes
[ 5] 8.00-9.00 sec 111 MBytes 934 Mbits/sec 0 526 KBytes
[ 5] 9.00-10.00 sec 112 MBytes 935 Mbits/sec 0 526 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 1.09 GBytes 933 Mbits/sec 111 sender
[ 5] 0.00-10.00 sec 1.08 GBytes 930 Mbits/sec receiver
iperf Done.
CoreELEC:~ # iperf3 -s
-----------------------------------------------------------
Server listening on 5201 (test #1)
-----------------------------------------------------------
Accepted connection from 192.168.10.142, port 25212
[ 5] local 192.168.10.201 port 5201 connected to 192.168.10.142 port 25213
[ ID] Interval Transfer Bitrate
[ 5] 0.00-1.00 sec 109 MBytes 913 Mbits/sec
[ 5] 1.00-2.00 sec 112 MBytes 942 Mbits/sec
[ 5] 2.00-3.00 sec 112 MBytes 942 Mbits/sec
[ 5] 3.00-4.00 sec 112 MBytes 943 Mbits/sec
[ 5] 4.00-5.00 sec 112 MBytes 942 Mbits/sec
[ 5] 5.00-6.00 sec 112 MBytes 943 Mbits/sec
[ 5] 6.00-7.00 sec 112 MBytes 942 Mbits/sec
[ 5] 7.00-8.00 sec 112 MBytes 942 Mbits/sec
[ 5] 8.00-9.00 sec 112 MBytes 943 Mbits/sec
[ 5] 9.00-10.00 sec 112 MBytes 942 Mbits/sec
[ 5] 10.00-10.02 sec 2.25 MBytes 991 Mbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate
[ 5] 0.00-10.02 sec 1.10 GBytes 939 Mbits/sec receiver
-----------------------------------------------------------
Server listening on 5201 (test #2)
Try this speed test
script.speedtester-1.1.3+matrix.1.zip (1.5 MB)
Can use the install from zip function in CoreELEC
Kinhank g1 with Ugoos DTB
Returns gigabit speeds
Dune hd box, atv12 firmware, kodi restarts alot, led to the box reboot into safe mode mode.
Ssh cant connect (it shows information at the beginning then disconnect).
Ethernet is not working (can see ip address asigned but cant connect to network)
I literally had mine shipped and I can’t even cancel my order anymore. I really wish I had AV1 and I was going to use this box forever… Now I’m sad that an option existed but I wasn’t aware of it when I bought my AM6b+ 3 weeks ago.
On the other hand the GPU in S922X is much more powerful so I can play games smoothly. Another thought is whether VS10 DV uses GPU and does it need the beefy GPU of 922x.
EDIT: seems like the DV for 905x4 is 2 days old and not weeks old… oh well technology changes.
reboot into safe mode mode , is it a hardware problem, or your keyboard is stuck
They are both great boxes. The S922X-J will feel much faster especially after you install it on the eemc and enable HO400.
You can use the S905X4 as your android/streaming box and the S922x as your CoreELEC media box. It’s a much nicer experience like that.
This discovery will enable FEL support for many more users and make it much more durable for the future.
