S7d, s905x5m (2025)

Finally a device with the new S905X5 SoC.

Hopefully the manufacturer will be able to provide the necessary files to get CE working.

USB 2.0 ?? ( X96 X4 Amlogic S905X4 has USB 3.0) and NO DV…, not interested.

I tried posting about this on reddit yesterday and the mods there hid, and locked my post. Couldn’t even reply. What a dump.

Looking forward to discussion on it, thank you

Don’t mix up S905X5 (S6) and S905X5M (S7d).
S905X5M indeed only has USB2.0 Phy, it’s a upgraded version of S905Y5 (S7)

2 Likes

I was hoping for H.266 (VVC), WiFi 6 and DV but doesn’t seem to be the case with this device.

SDMC has a new device S905X5, but it’s not sold under a commercial brand yet.
S905X5 4K Ultra Box

1 Like

Excellent news, will we have a TOX5 with cost benefit? It would be great, since probably the ucode of this box would already be 4.1, correct? CE NO more stable.

Hopefully TrustOnX go back to an Amlogic SoC.

1 Like

The soulmate of CE :smiley: (Hardkernel)
ODROID-C5
S905X5M_4GiB RAM_1Gb Ethernet
only negative part is (DC power jack), it should be a USB type C port. But they mentioned that. (board dimensions and the locations of the connectors are identical to the ODROID-C4. Therefore, cases and most add-on boards for the C4 can be used as is.)
ODROID-C5 – ODROID

2 Likes

I simply use type C to barrel adapters, they are great.

I use one on my gateway, my laptop, and several other devices and all work flawlessly.

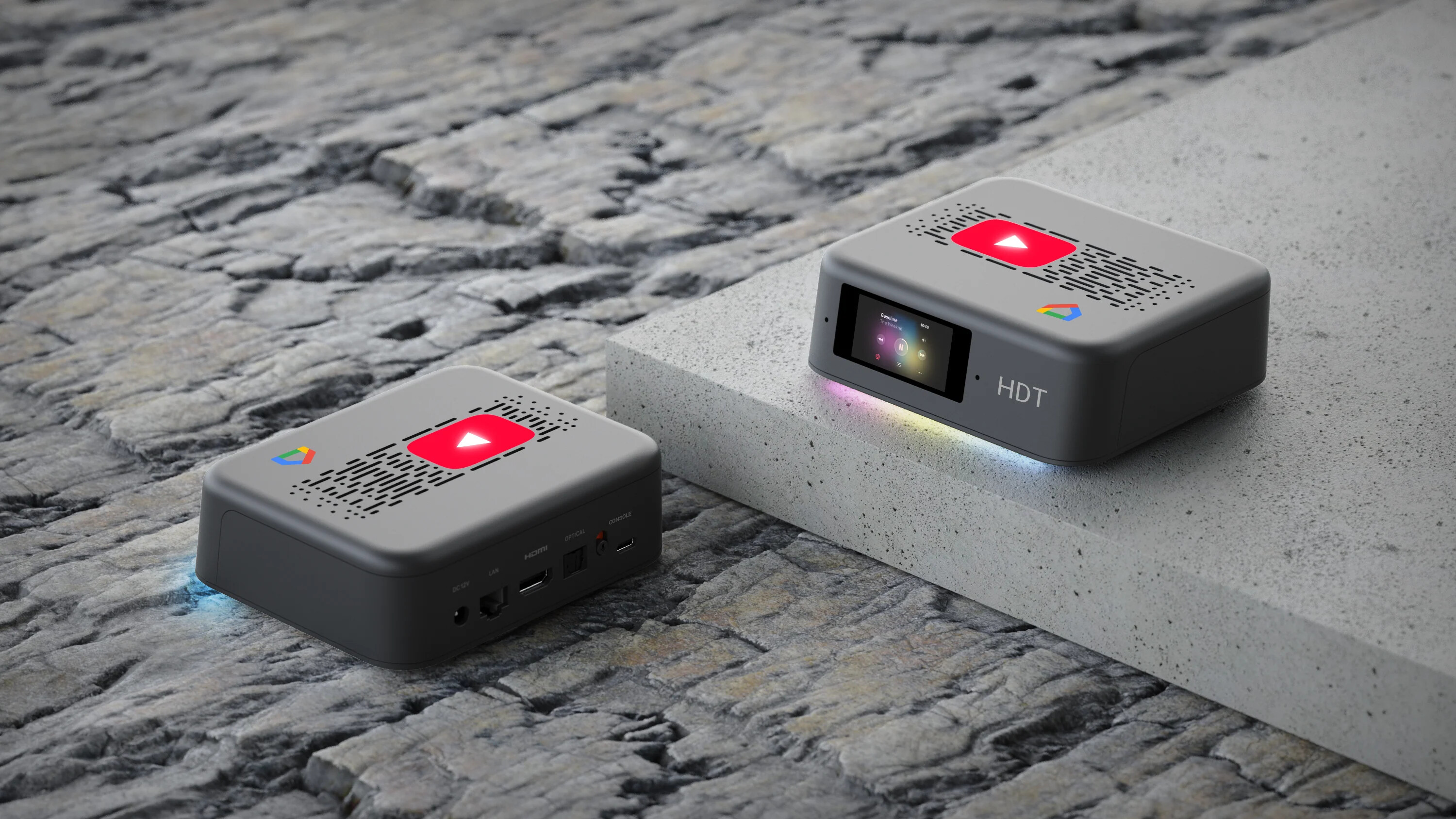

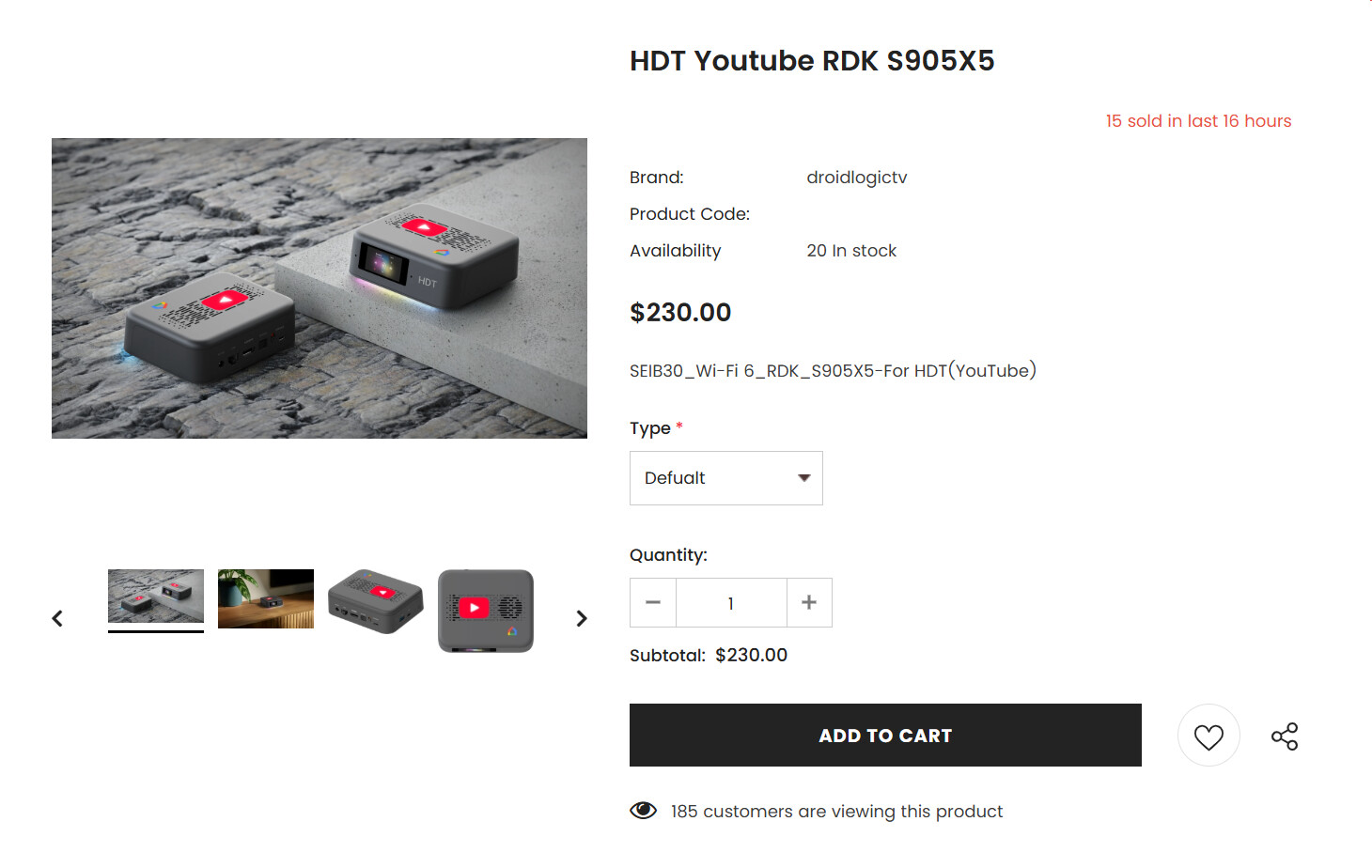

anyone know what this is

Notes

For SEI Robotics & Google HDT project prototype only. Please confirm before you order.

it has s905x-k

it’s pretty popular

15 sold in 16 hours, 185 viewing right now.

I also found this

https://drive.google.com/drive/folders/1hASl9WhcExcH3L5VoN0MvWxYNFPGy9GQ

1 Like

Note carefully the RDK OS which I know is the OS my cable STB uses https://rdkcentral.com/

1 Like

I also found this, not sure how trust worthy it is

Ugoos am9 model on the Amlogic s905x5 processor

Estimated date of receipt: July 2025.

Ugoos am9 2025 model on new processor
A new model on a new stone from Amlogic, which according to Antutu tests surpasses the previous x4 revision, 163,122 versus 101,519 for the s905x4. This indicates high processor performance. The 4 GB LPDDR4X RAM is really very fast, in the pro version, which will appear in winter, it will be expanded to 8 GB. HDMI of the new revision HDMI 2.1b with support for the HD CEC function. The internal memory is 64 GB, but in the pro version it will be expanded to 128 GB. Three high-speed USB 3.0 ports and USB-C OTG for flashing the box using a PC.

Important: The console has two USB Type C ports, they are different because the OTG port has a 5V power supply, and the port for 12V power supply. If you connect 12V power to the OTG port, the console will burn out. When selling these devices, we seal the OTG port with a warranty sticker to avoid user error.

If we compare Ugoos am9 with the previous model am8
Although the AM index implies that the console is top-end, the processor in the am9 is clearly weaker than the x928s, although it has the ability to install 8 GB of RAM. It is correct to compare it with the also new x5m model on a cut-down Amlogic s905x5 m5 processor, which has a RAM limit of 4 GB.

According to the characteristics, you can see that the set-top box has a new Android 14, a new video chip. If you plan to just watch videos and will not play heavy games, then am9 will suit you. The set-top box has all the functionality and support for which Ugoos products are chosen. Wi-Fi 6 support will provide high speed over the air. If the TV supports 120 Hz, then it is better to buy sk1 or AM8. There is an optical spdif output for connecting a home theater.

If you need a set-top box with the newest processor and the latest Android 14 operating system, then you should buy Ugoos am9. You can’t expect a new operating system to appear on am8, since the OS is tied to the processor model. It is worth considering that the X and AM set-top boxes are manufactured in different factories and the components used, even with equal characteristics, differ and directly affect the service life.

Ugoos am9 specifications
Amlogic SoC S905X5 Quad core ARMv9.0
Cortex-A510 CPU
ARM G310 V5
Neural network accelerator (NNA) with Tensor
programmable engine (TPU) architecture 3.2~4 TOPS
4GB LPDDR4X
64/128GB (EMMC)
Android 14
2T2R 802.11 a/b/g/n/ac/ax WIFI 6 MIMO
IEEE 802.3 10/100/1000M Ethernet
Bluetooth 5.3 Module
HDMI 2.1b transmitter including both controller and PHY supporting eARC, CEC, ALLM, VRR, QMS, Dynamic HDR and HDCP 2.2/2.3, 4Kx2K@60fps max
resolution output & AUX+MIC AV output 3xUSB 3.0 & 1xUSB-C OTG 2.0
H.266 VVC main 10@L5.2, AV1 MP-10@L5.2, VP9 Profile-2, H.265 HEVC MP-10@L5, AVS3-P2 Profile, H.264 AVC, MPEG-4, WMV/VC-1 SP/MP/AP, AVS P16(AVS+)/AVS-P2, MPEG-(2&1) MP/HL MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Type-C power adapter 12V 2.0A
Conclusion: Suitable for those who plan to watch TV and movies. New hardware and a well-known manufacturer will ensure long-term operation and software support from Ugoos.

Brief characteristics:
Display : no display
Wi-Fi : built-in
Remote IR sensor : no
External power supply : yes
Body : metal
Interface : USB 2.0 / 3.0, Ethernet, RCA, HDMI
Front panel control buttons : yes
Availability of DVB C : no
Availability of AC 3 : yes
Number of USB ports : 4 ports
Operating system : Android
Number of tuners : possibility of installing additional ones
RAM : 4 GB

price on that site is 12000 russian ₽
which works out as $150 USD

1 Like

A prototype device / a developer Kit for developers.
Same as this previous model with s905x4
Google ADT-4 (Developer Kit) - Android TV Guide

1 Like

the score for the AM9 according to that site match exactlyin
gadgetversus

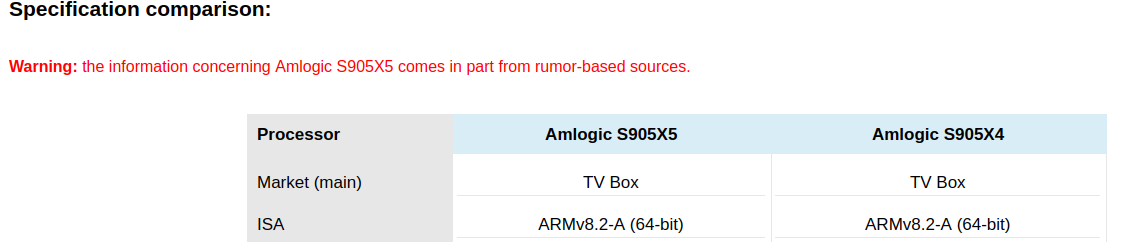

so I compared against the S922x-j

no FEL but it’s faster than the AM6B+ by 36% and able to do other things.

you forgot to screenshot the top of that page that says the s905x5 info is based on rumors and speculation. :grin:

3 Likes

I got carried away lol

for anyone not following YadaYada has pointed towards this page

this is just a comparison of the two socs, which is secondary information . fact is you can place an order for the AM9 and expect delivery in July if you live in Russia. That’s the real news

the Russian article said “which according to Antutu tests”
meaning they didn’t test or don’t have the devices at hand.

More boxes with S905X5M (S7D)
Xiaomi Box 5 & Box 5 Max launched
The max variant comes with 4GB RAM and 64GB storage, DV & HDR, WI-FI 6 & BT5.2, HyperOS.
TV-Boxes designed for the Chinese domestic market, and English is supported. No info on streaming services apps like Netflix
Priced at $70

1 Like

Curious if this is the same as the also recently released Xiaomi TV Box S 3rd Gen. Looking at Aliexpress, I cannot find the Box 5.
I watched a video of @clarkss12 comparing the Xiaomi S 2nd Gen to the S 3rd Gen and there wasn’t much difference.
It would seem the S905x5, not the S905x5m, will be the one to watch when it hopefully arrives later this year.

1 Like

Nope, The S 3rd device is a global ATV14 oriented box and it’s compatible with paid streaming APPS. Only it has 2GB RAM.
More like a replacement for older model S 2nd generation.
Yep, not much of a difference between those two.
The box 5 & max were just launched on 15 May, and it will probably take a bit more time to see them available on Chinese online stores.

1 Like
