I used the latest nightly 20251105 and AVL6862-22.0.6.3
First, I tried the parallel DTB. It gave an Ir2c error. Therefore, tvheadend and dvbv5-scan did not perform a scan.
parelel_dtb_dmesg.txt (74.2 KB)
paralelevb.txt (1.6 KB)
Couldn't find demux device node
WARNING device dvb0.demux0 not found
Then I tried the dtb series. Dmesg saw avl6762, but I couldnāt find it in either tvheadend or scanv5.
[ 17.540651] meson-g12a-pinctrl pinctrl@ff800014: invalid function tsin_a_ao in map table
[ 17.540672] meson-g12a-pinctrl pinctrl@ff800014: invalid function tsin_a_ao in map table
serial_dtb_dmesg.txt (74.0 KB)
I am sending the Android dtb and logs.
dtb.img (256 KB)
2dtb.img (92 KB)
gpio.txt (671 Bytes)
dvb.txt (45.5 KB)
ts.txt (67.7 KB)
error.txt (26.9 KB)
dmesgdvb-t.txt (2.5 KB)
dmesg.txt (284.0 KB)
parallel and serial dtb files are exactly the same ragarding i2c setup, and in dmesg from serial dtb there are no i2c errors. Donāt know what You did, but it is for sure not related to dtb. Maybe You rebooted somehow from android which turned off the power to the avl ? I donāt know. Try again.
those pinctrl errors should happen from the beginning, the ts0 input pins configuration was wrong in all dtb files I sent You, I donāt understand why it worked before ā¦ Nevertheless try this, I hope the pin configuration is now correct:
sm1_s905x3_avl6762_serial.dtb (77.0 KB)
Thank you very much for your efforts. Dvb-c is working now.
During this process, I received very strange dmesg logs. I got two different results with the same dtb. I did a bunch of fresh installs.
Ok great, the box is MagicSee C500 Pro ? and the DVB-C is on TS0 serial input ?
The working dtb files are in this latest message. According to this, since DVB-C is working, you should know whether ts0 is serial or not. Because I only did a channel scan. Iāll send dmesg if needed.
-STB: Mgicsee C500 pro 4gb ram/32gb mmc
sm1_s905x3_avl6762_serial.dtb (77.0 KB)
working-dvb-c-_dmesg.txt (109.5 KB)
working-dvb-c-_dmesgdvb.txt (34.1 KB)
@taki I compiled the driver for avl6261, You can try it:
AVL6862-22.0.6.3.zip (527.5 KB)
and use this dtb:
sm1_s905x3_magicsee_c500_pro_4g.dtb (77.6 KB)
Thanks. Tvheadend doesnt see avl6261 but
avl62x1:avl62x1_attach INFO: driver version 3.8.6
[ 48.560702]
[ 48.560710] avl62x1:avl_bsp_assoc_i2c_adapter(): assoc I2C for demod_id 0
[ 48.562446] i2c i2c-2: avl_bsp_linux: i2c wr failed=-6 len=3
[ 48.562465] avl62x1:avl62x1_attach ERROR: attach failed reading id
[ 48.562472] Demod: attach demod1 [id 28] fail
[ 48.562478] Demod: adapter null, call aml_dvb_get_adapter
[ 48.562512] amlogic-dvb-demux dvb-demux: DVB: registering adapter 0 frontend 0 (Availink AVL6762)...
[ 48.568124] Demod: demod1 [id 28] had not attached
[ 48.568141] aml_dvb_extern_attach_work demod 0 attach done
[ 48.568283] Demod: demod0 [id 15] had attached
[ 48.568300] aml_attach_detach_dtvdemod: cb id 28
[ 48.568304] avl62x1:avl62x1_attach INFO: driver version 3.8.6
[ 48.568304]
[ 48.568313] avl62x1:avl_bsp_assoc_i2c_adapter(): assoc I2C for demod_id 0
[ 48.568439] i2c i2c-2: avl_bsp_linux: i2c wr failed=-6 len=3
[ 48.568449] avl62x1:avl62x1_attach ERROR: attach failed reading id
[ 48.568463] Demod: attach demod1 [id 28] fail
[ 48.568469] Demod: demod0 [id 15] had registered.
[ 48.568473] Demod: demod1 [id 28] had not attached
dmesg_avl62xx.txt (77.2 KB)
grep_dvb.txt (1.9 KB)
maybe i2c address is wrong, I took it from the availink repo. Do:
i2cdetect -y 2
Iām out right now, so Iāll try i2c2 again. But after dmesg appeared during the new rules setup, I ran i2cdetec. It found nothing for i2c, but only 0x14 for i2c3. I wonder if Iām using a common pin for sda and scl.
There might be wrong i2c configuration, try with this:
sm1_s905x3_magicsee_c500_pro_4g.dtb (77.6 KB)
CoreELEC:~ # i2cdetect -y 2
0 1 2 3 4 5 6 7 8 9 a b c d e f
00: -- -- -- -- -- -- -- --
10: -- -- -- -- 14 -- -- -- -- -- -- -- -- -- -- --
20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
30: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
50: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
70: -- -- -- -- -- -- -- --
CoreELEC:~ # i2cdetect -y 3
0 1 2 3 4 5 6 7 8 9 a b c d e f
00: -- -- -- -- -- -- -- --
10: -- -- -- -- 14 -- -- -- -- -- -- -- -- -- -- --
20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
30: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
50: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
70: -- -- -- -- -- -- -- --
CoreELEC:~ #
newdmesg.txt (78.2 KB)
newdvb.txt (2.7 KB)

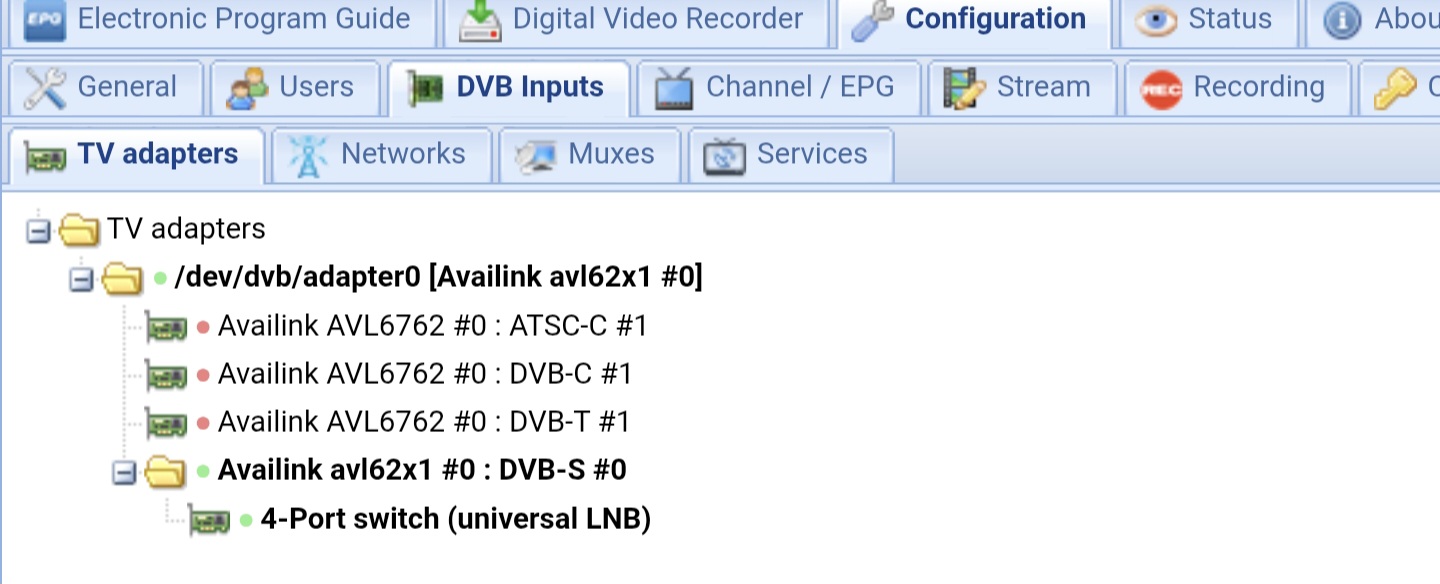

Is it working ? I think that in tvheadend there should be two frontends. In dmesg there were added two frontends but with the same index ā¦ put output of:
ls -al /dev/dvb/adapter0
I scanned dvb-s bu no find signal and channels. I will try
CoreELEC:~ # ls -al /dev/dvb/adapter0
total 0
drwxr-xr-x 2 root root 300 Oct 13 18:02 .
drwxr-xr-x 3 root root 60 Oct 13 18:01 ..
crw-rw---- 1 root video 212, 6 Oct 13 18:02 ca0
crw-rw---- 1 root video 212, 22 Oct 13 18:02 ca1
crw-rw---- 1 root video 212, 4 Oct 13 18:02 demux0
crw-rw---- 1 root video 212, 20 Oct 13 18:02 demux1
crw-rw---- 1 root video 212, 36 Oct 13 18:02 demux2
crw-rw---- 1 root video 212, 5 Oct 13 18:02 dvr0
crw-rw---- 1 root video 212, 21 Oct 13 18:02 dvr1
crw-rw---- 1 root video 212, 37 Oct 13 18:02 dvr2
crw-rw---- 1 root video 212, 3 Oct 13 18:02 frontend0
crw-rw---- 1 root video 212, 19 Oct 13 18:02 frontend1
crw-rw---- 1 root video 212, 7 Oct 13 18:02 net0
crw-rw---- 1 root video 212, 23 Oct 13 18:02 net1
crw-rw---- 1 root video 212, 39 Oct 13 18:02 net2

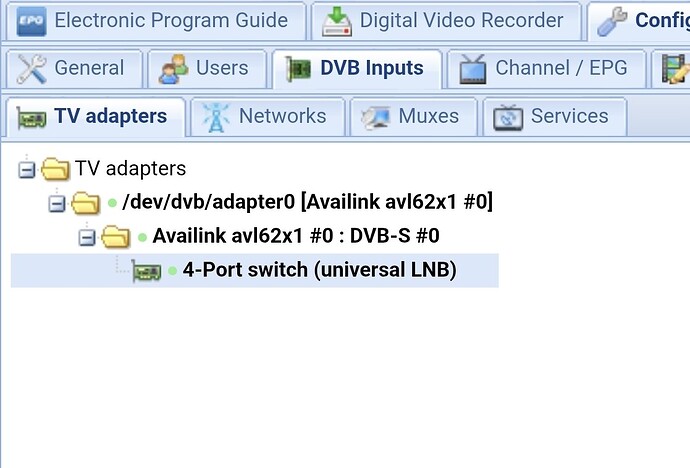

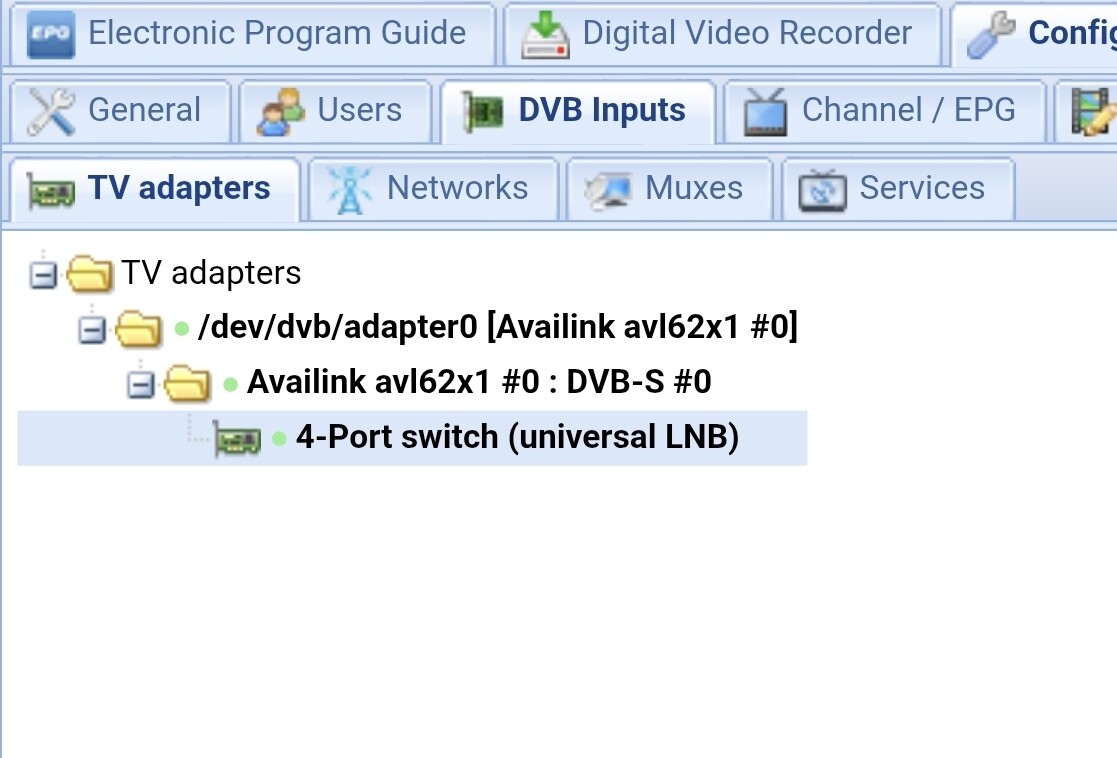

It looks OK, in tv headend also. actually in tvheadend the #0 is for frontend 0 and #1 is for frontend1 .
So first thing is to make sure that the DVB-S tuner works. I made a DTB with only DVB-S tuner and DVB-T removed. Try it:
sm1_s905x3_magicsee_c500_pro_4g_only_avl6261.dtb (77.0 KB)
If it will not work do the scan with dvbv5-scan (the same as You did for mecool K5 here S905X4 built in DVB - #169 by rozpruwacz) and paste output here
I am trying
CoreELEC:~ # dmesg | grep -i dvb
[ 2.089616] dvb power gpio invalid
[ 2.089735] aml_dvb_extern_init: OK, version: V1.28
[ 46.561017] probe amlogic dvb driver [V2.02]
[ 46.561192] aml_dvb_get_adapter need register adapter first.
[ 46.561195] DVB: registering new adapter (amlogic-dvb)
[ 46.566469] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 46.566479] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 46.566482] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 46.566485] DVB: reset ASYNC FIFOs
[ 46.566759] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 46.566765] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 46.566768] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 46.566770] DVB: reset ASYNC FIFOs
[ 46.566775] DVB:dmx_reset_dmx_hw_ex_unlock into
[ 46.566816] DVB: demux0 smallsec buf disable
[ 46.566820] DVB: demux0 timeout disable
[ 46.566823] DVB: demux0 timeout enable:timeout(9000),ch(0xfffffff8),match(1)
[ 46.566869] DVB: demux0 smallsec buf disable
[ 46.566871] DVB: demux0 timeout disable
[ 46.566873] DVB: demux0 timeout enable:timeout(9000),ch(0xfffffff8),match(1)
[ 49.549576] Demod: adapter null, call aml_dvb_get_adapter
[ 49.549587] amlogic-dvb-demux dvb-demux: DVB: registering adapter 0 frontend 0 (Availink avl62x1)...
[ 49.553949] aml_dvb_extern_attach_work demod 0 attach done
[ 49.560871] aml_dvb_extern_attach_work demod 0 attach done
[ 50.553787] amlogic-dvb-demux dvb-demux: DVB: adapter 0 frontend 0 frequency 0 out of range (950000..2150000)
[ 60.802256] Modules linked in: ir_rc6_decoder ir_nec_decoder meson_ir rc_core 8021q amvdec_avs2_fb(O) amvdec_av1_fb(O) amvdec_h265_fb(O) amvdec_vp9_fb(O) amvdec_vp9(O) amvdec_av1(O) amvdec_vc1(O) hci_uart btqca serdev amvdec_mmpeg4(O) btintel btbcm amvdec_mmpeg12(O) amvdec_mmjpeg(O) amvdec_h266(O) amvdec_h265(O) bluetooth amvdec_mh264(O) amvdec_h264mvc(O) amvdec_mavs(O) amvdec_avs3(O) amvdec_avs2(O) mali_kbase(O) aic8800_bsp(O) rtw_8822cs(O) rtw_8822c(O)
rtw_sdio(O) rtw_core(O) dvb_meson(O) openvfd(O) avl62x1(O) av201x aml_hardware_dmx(O) stream_input(O) pts_server(O) decoder_common(O) firmware(O) media_clock(O) nfsd nfs_acl nfnetlink autofs4
CoreELEC:~ #
CoreELEC:~ # ls -al /dev/dvb/adapter0
total 0
drwxr-xr-x 2 root root 280 Oct 13 18:02 .
drwxr-xr-x 3 root root 60 Oct 13 18:01 ..
crw-rw---- 1 root video 212, 6 Oct 13 18:02 ca0
crw-rw---- 1 root video 212, 22 Oct 13 18:02 ca1
crw-rw---- 1 root video 212, 4 Oct 13 18:02 demux0
crw-rw---- 1 root video 212, 20 Oct 13 18:02 demux1
crw-rw---- 1 root video 212, 36 Oct 13 18:02 demux2
crw-rw---- 1 root video 212, 5 Oct 13 18:02 dvr0
crw-rw---- 1 root video 212, 21 Oct 13 18:02 dvr1
crw-rw---- 1 root video 212, 37 Oct 13 18:02 dvr2
crw-rw---- 1 root video 212, 3 Oct 13 18:02 frontend0
crw-rw---- 1 root video 212, 7 Oct 13 18:02 net0
crw-rw---- 1 root video 212, 23 Oct 13 18:02 net1
crw-rw---- 1 root video 212, 39 Oct 13 18:02 net2
CoreELEC:~ #
[ 167.285767] Acquire TS
[ 177.601439] Acquire TS
[ 187.917769] Acquire TS
[ 198.221756] Acquire TS
[ 208.513780] Acquire TS
[ 218.843709] Acquire TS
[ 229.124708] Acquire TS
[ 239.468960] Acquire TS
[ 249.771018] Acquire TS
[ 260.092976] Acquire TS
[ 270.399024] Acquire TS
[ 280.695017] Acquire TS
[ 290.999018] Acquire TS
[ 301.323013] Acquire TS
[ 311.619019] Acquire TS
[ 321.915021] Acquire TS
[ 332.225748] Acquire TS
[ 342.521785] Acquire TS
[ 352.825755] Acquire TS
[ 363.123111] Acquire TS
[ 373.451699] Acquire TS
[ 383.757753] Acquire TS
[ 394.053750] Acquire TS
[ 404.007805] Acquire TS
[ 404.385754] Acquire TS
[ 414.679703] Acquire TS
[ 424.977748] Acquire TS
[ 435.273747] Acquire TS
[ 445.595698] Acquire TS
[ 455.900118] Acquire TS
[ 466.215752] Acquire TS
[ 476.503720] Acquire TS
Tested and
CoreELEC:~ # dvbv5-scan -l UNIVERSAL -S 1 /storage/.kodi/addons/service.tvheadend43/dvb-scan/dvb-s/Turksat-3A-42.0E
Using LNBf UNIVERSAL
Old European Universal. Nowadays mostly replaced by Astra 19.2E
Freqs : 10800 to 11800 MHz, LO: 9750 MHz
Freqs : 11600 to 12700 MHz, LO: 10600 MHz
ERROR command BANDWIDTH_HZ (5) not found during retrieve
Cannot calc frequency shift. Either bandwidth/symbol-rate is unavailable (yet).
Scanning frequency #1 10952840
RF (0x01) Scanning frequency #2 10958000 RF (0x01) Scanning frequency #3 10964300 RF (0x01) Scanning frequency #4 10967300 RF (0x01) Scanning frequency #5 10975000 RF (0x01) Scanning frequency #6 10980000 RF (0x01) Scanning frequency #7 10985100 RF (0x01) Scanning frequency #8 10986100 RF (0x01) Scanning frequency #9 10998100 RF (0x01) Scanning frequency #10 11007100 RF (0x01) Scanning frequency #11 11012000 RF (0x01) Scanning frequency #12 11026100 RF (0x01) Scanning frequency #13 11045000 RF (0x01) Scanning frequency #14 11053000 RF (0x01) Scanning frequency #15 11054000 RF (0x01) Scanning frequency #16 11062000 RF (0x01) Scanning frequency #17 11069000 RF (0x01) Scanning frequency #18 11082600 RF (0x01) Scanning frequency #19 11091500 RF (0x01) Scanning frequency #20 11096000 RF (0x01) Scanning frequency #21 11100500 RF (0x01) Scanning frequency #22 11105000 RF (0x01) Scanning frequency #23 11109500 RF (0x01) Scanning frequency #24 11127080 ERROR FE_SET_PROPERTY: Invalid argument
ERROR dvb_fe_set_parms failed: Invalid argument
Scanning frequency #25 11127840
ERROR FE_SET_PROPERTY: Invalid argument
ERROR dvb_fe_set_parms failed: Invalid argument
Scanning frequency #26 11128580
ERROR FE_SET_PROPERTY: Invalid argument
ERROR dvb_fe_set_parms failed: Invalid argument
Scanning frequency #27 11129340
ERROR FE_SET_PROPERTY: Invalid argument
ERROR dvb_fe_set_parms failed: Invalid argument
Scanning frequency #28 11130030
ERROR FE_SET_PROPERTY: Invalid argument
ERROR dvb_fe_set_parms failed: Invalid argument
Scanning frequency #29 11132000
RF (0x01) Scanning frequency #30 11139100 RF (0x01) Scanning frequency #31 11178300 RF (0x01) Scanning frequency #32 11180000 RF (0x01) Scanning frequency #33 11345000 RF (0x01) Scanning frequency #34 11460300 RF (0x01) Scanning frequency #35 11469300 RF (0x01) Scanning frequency #36 11478220 RF (0x01) Scanning frequency #37 11487220 RF (0x01) Scanning frequency #38 11503100 RF (0x01) Scanning frequency #39 11503500 RF (0x01) Scanning frequency #40 11510000 RF (0x01) Scanning frequency #41 11523500 RF (0x01) Scanning frequency #42 11526000 RF (0x01) Scanning frequency #43 11558000 RF (0x01) Scanning frequency #44 11598100 RF (0x01) Scanning frequency #45 11606200 RF (0x01) Scanning frequency #46 11676000 RF (0x01) Scanning frequency #47 12515000 RF (0x01) Scanning frequency #48 12524000 RF (0x01) Scanning frequency #49 12530000 RF (0x01) Scanning frequency #50 12559000 RF (0x01) Scanning frequency #51 12570800 RF (0x01) Scanning frequency #52 12574300 RF (0x01) Scanning frequency #53 12577000 RF (0x01) Scanning frequency #54 12589000 RF (0x01) Scanning frequency #55 12605000 RF (0x01) Scanning frequency #56 12610000 RF (0x01) Scanning frequency #57 12634000 RF (0x01) Scanning frequency #58 12641000 RF (0x01) Scanning frequency #59 12642000 RF (0x01) Scanning frequency #60 12653000 RF (0x01) Scanning frequency #61 12655000 RF (0x01) Scanning frequency #62 12669500 RF (0x01) Scanning frequency #63 12685000 RF (0x01) Scanning frequency #64 12728900 ERROR frequency: 12728.90 MHz is out of LNBf range
ERROR FE_SET_PROPERTY: Invalid argument
ERROR dvb_fe_set_parms failed: Invalid argument
Scanning frequency #65 12729000
ERROR frequency: 12729.00 MHz is out of LNBf range
ERROR FE_SET_PROPERTY: Invalid argument
ERROR dvb_fe_set_parms failed: Invalid argument
CoreELEC:~ #
dvbv5scan.txt (10.1 KB)
ERROR FE_SET_PROPERTY: Invalid argument
ERROR dvb_fe_set_parms failed: Invalid argument
Unfortunately this looks like a problem with the avl6261 driver code. I donāt know how to fix that.
