Yes it’s deep fake
You know the tbs developer said the m88rs6060 driver take most of the code from montage m88ds3013. I mean the base is similar so its not so far to modify to match
And also I said from the beginning it will be easier for you than me
Do you want my dts?
what device Your using ?
My device 2g
I mean what manufacturer and model ?
Device in Egypt called starnet-applex3 it very similar to gtcombo
Could You test this version ?
AVL6862-22.0.5.2.zip (429.3 KB)
This version I want to push to the official repo.
It requires additional property fe0_ts_out_mode to be set to 1 for parallel mode in dts, something like this:
dvb-extern {
compatible = "amlogic, dvb-extern";
dev_name = "dvb-extern";
status = "okay";
fe_num = <0x01>;
fe0_demod = "m88dm6k";
fe0_i2c_adap_id = <&i2c2>;
fe0_demod_i2c_addr = <0x69>;
fe0_ts = <0x01>;
fe0_ts_out_mode = <1>;
};
diff -ruN common_drivers/arch/arm64/boot/dts/amlogic/Makefile common_drivers2/arch/arm64/boot/dts/amlogic/Makefile
--- common_drivers/arch/arm64/boot/dts/amlogic/Makefile 2025-10-16 20:15:50.471014557 +0300
+++ common_drivers2/arch/arm64/boot/dts/amlogic/Makefile 2025-10-16 20:08:45.470503493 +0300
@@ -66,6 +66,8 @@
dtb-y += sm1_s905x3_beelink_gt1mini2_4g.dtb
dtb-y += sm1_s905x3_buzztv_xrs4500.dtb
dtb-y += sm1_s905x3_odroid_c4.dtb
+dtb-y += sm1_s905x3_starnet.dtb
+dtb-y += sm1_s905x3_tiger.dtb
dtb-y += sc2_s905x4_2g.dtb
dtb-y += sc2_s905x4_2g_1gbit.dtb
dtb-y += sc2_s905x4_4g.dtb
diff -ruN common_drivers/arch/arm64/boot/dts/amlogic/sm1_s905x3_starnet.dts common_drivers2/arch/arm64/boot/dts/amlogic/sm1_s905x3_starnet.dts
--- common_drivers/arch/arm64/boot/dts/amlogic/sm1_s905x3_starnet.dts 1970-01-01 02:00:00.000000000 +0200
+++ common_drivers2/arch/arm64/boot/dts/amlogic/sm1_s905x3_starnet.dts 2025-10-16 20:18:45.345244630 +0300
@@ -0,0 +1,78 @@
+#include "sm1_s905x3_2g.dts"
+
+/{
+ model = "starnet apple-x3";
+ coreelec-dt-id = "sm1_s905x3_starnet";
+
+ /delete-node/ dvb-extern;
+ /delete-node/ dvb-demux;
+ /delete-node/ demux;
+ dvb-extern {
+ compatible = "amlogic, dvb-extern";
+ dev_name = "dvb-extern";
+ status = "okay";
+
+ fe_num = <1>;
+ fe0_demod = "m88dm6k";
+ fe0_i2c_adap_id = <&i2c2>;
+ fe0_demod_i2c_addr = <0x69>;
+ fe0_reset_value = <0>;
+ fe0_reset_gpio = <&gpio GPIOZ_1 GPIO_ACTIVE_HIGH>;
+ fe0_ts = <1>;
+ };
+
+ dvb-demux {
+ compatible = "amlogic, dvb-demux";
+ dev_name = "dvb-demux";
+ status = "okay";
+ dmx =<&demux>;
+
+ ts1 = "parallel";
+ ts1_control = <0>;
+ ts1_invert = <0>;
+ pinctrl-names = "p_ts1";
+ pinctrl-0 = <&dvb_p_ts1_pins>;
+ };
+
+ demux: demux {
+ compatible = "amlogic, dmx";
+ status = "okay";
+
+ interrupts = <GIC_SPI 23 IRQ_TYPE_EDGE_RISING
+ GIC_SPI 5 IRQ_TYPE_EDGE_RISING
+ GIC_SPI 21 IRQ_TYPE_EDGE_RISING
+ GIC_SPI 19 IRQ_TYPE_EDGE_RISING
+ GIC_SPI 25 IRQ_TYPE_EDGE_RISING
+ GIC_SPI 18 IRQ_TYPE_EDGE_RISING
+ GIC_SPI 24 IRQ_TYPE_EDGE_RISING>;
+ interrupt-names = "demux0_irq",
+ "demux1_irq",
+ "demux2_irq",
+ "dvr0_irq",
+ "dvr1_irq",
+ "dvrfill0_fill",
+ "dvrfill1_flush";
+ };
+};
+
+&pinctrl_periphs {
+ dvb_p_ts1_pins: dvb_p_ts1_pins {
+ tsin_b {
+ groups = "tsin_b_sop_z\0tsin_b_valid_z\0tsin_b_clk_z\0tsin_b_din0_z\0tsin_b_din1\0tsin_b_din2\0tsin_b_din3\0tsin_b_din4\0tsin_b_din5\0tsin_b_din6\0tsin_b_din7";
+ function = "tsin_b";
+ };
+ };
+};
+
+&i2c2 {
+ status = "okay";
+ pinctrl-names="default";
+ pinctrl-0 = <&i2c2_master_pins2>;
+ clock-frequency = <100000>;
+};
+
+&i2c3 {
+ status = "disabled";
+ /delete-property/ pinctrl-names;
+ /delete-property/ pinctrl-0;
+};
diff -ruN common_drivers/arch/arm64/boot/dts/amlogic/sm1_s905x3_tiger.dts common_drivers2/arch/arm64/boot/dts/amlogic/sm1_s905x3_tiger.dts
--- common_drivers/arch/arm64/boot/dts/amlogic/sm1_s905x3_tiger.dts 1970-01-01 02:00:00.000000000 +0200
+++ common_drivers2/arch/arm64/boot/dts/amlogic/sm1_s905x3_tiger.dts 2025-10-16 20:18:41.743239814 +0300
@@ -0,0 +1,78 @@
+#include "sm1_s905x3_4g.dts"
+
+/{
+ model = "tiger 1b";
+ coreelec-dt-id = "sm1_s905x3_tiger";
+
+ /delete-node/ dvb-extern;
+ /delete-node/ dvb-demux;
+ /delete-node/ demux;
+ dvb-extern {
+ compatible = "amlogic, dvb-extern";
+ dev_name = "dvb-extern";
+ status = "okay";
+
+ fe_num = <1>;
+ fe0_demod = "m88dm6k";
+ fe0_i2c_adap_id = <&i2c2>;
+ fe0_demod_i2c_addr = <0x69>;
+ fe0_reset_value = <0>;
+ fe0_reset_gpio = <&gpio GPIOZ_1 GPIO_ACTIVE_HIGH>;
+ fe0_ts = <1>;
+ };
+
+ dvb-demux {
+ compatible = "amlogic, dvb-demux";
+ dev_name = "dvb-demux";
+ status = "okay";
+ dmx =<&demux>;
+
+ ts1 = "parallel";
+ ts1_control = <0>;
+ ts1_invert = <0>;
+ pinctrl-names = "p_ts1";
+ pinctrl-0 = <&dvb_p_ts1_pins>;
+ };
+
+ demux: demux {
+ compatible = "amlogic, dmx";
+ status = "okay";
+
+ interrupts = <GIC_SPI 23 IRQ_TYPE_EDGE_RISING
+ GIC_SPI 5 IRQ_TYPE_EDGE_RISING
+ GIC_SPI 21 IRQ_TYPE_EDGE_RISING
+ GIC_SPI 19 IRQ_TYPE_EDGE_RISING
+ GIC_SPI 25 IRQ_TYPE_EDGE_RISING
+ GIC_SPI 18 IRQ_TYPE_EDGE_RISING
+ GIC_SPI 24 IRQ_TYPE_EDGE_RISING>;
+ interrupt-names = "demux0_irq",
+ "demux1_irq",
+ "demux2_irq",
+ "dvr0_irq",
+ "dvr1_irq",
+ "dvrfill0_fill",
+ "dvrfill1_flush";
+ };
+};
+
+&pinctrl_periphs {
+ dvb_p_ts1_pins: dvb_p_ts1_pins {
+ tsin_b {
+ groups = "tsin_b_sop_z\0tsin_b_valid_z\0tsin_b_clk_z\0tsin_b_din0_z\0tsin_b_din1\0tsin_b_din2\0tsin_b_din3\0tsin_b_din4\0tsin_b_din5\0tsin_b_din6\0tsin_b_din7";
+ function = "tsin_b";
+ };
+ };
+};
+
+&i2c2 {
+ status = "okay";
+ pinctrl-names="default";
+ pinctrl-0 = <&i2c2_master_pins2>;
+ clock-frequency = <100000>;
+};
+
+&i2c3 {
+ status = "disabled";
+ /delete-property/ pinctrl-names;
+ /delete-property/ pinctrl-0;
+};
this is my patch working perfectly
starnet is 2g
tiger is 4b
both tested
starnet apple x3 or starnet 2080 both are the same
tiger is tiger 1 billion its jordan device
ok i will try you dts
yes it worked with
fe0_ts_out_mode = <1>;
without it gaining snr with no stream
but why you made it like that? is it relevant to sc2 ?
ts_out_mode setting switches between serial and parallel ts input. so if other devices use the same demod but in serial mode then they can set it in dts.
thanks for dts. I will need to work more on that before it could be merged into offical repob
you are very welcome . im here if you need more testing for that
I don’t have a computer with Ubuntu installed. However, I converted the Android DTB to DTS on CoreELEC via Entware with uarth ssh android phone. The tuner and demodulator on my device are MxL608+AVL6762 (DVB-T/T2) and AV2018+AVL6261C (DVB-S2X/S2/S).
The driver for AVL6261 is:
https://github.com/availink/amlogic_meson_dvb4linux/blob/master/dvb-avl/aml_fe_avl62x1_av201x.c
dvb-avl/aml_fe_avl62x1_av201x.c
https://github.com/availink/amlogic_meson_dvb4linux/blob/master/dvb-avl/aml_fe_avl62x1_av201x.h
dvb-avl/aml_fe_avl62x1_av201x.h
Its firmware is here:
Also, there is a source for Broadcom processors:
Additionally, the MxL608+AVL6762 is used by the Mecool KT1, and as far as I understand, it is currently patched into the CoreELEC Amlogic DVB addon and loaded into the main driver.
I need some help. The Android DTS DVB nodes are like this:
dvb_s_ts0_ao_pins {
phandle = <0x72>;
tsin_a_ao {
groups = "tsin_a_sop_ao", "tsin_a_valid_ao", "tsin_a_clk_ao", "tsin_a_din0_ao";
function = "tsin_a_ao";
};
};
dvb_p_ts1_z_pins {
phandle = <0x73>;
tsin_b {
groups = "tsin_b_sop_z", "tsin_b_valid_z", "tsin_b_clk_z", "tsin_b_din0_z", "tsin_b_din1",
"tsin_b_din2", "tsin_b_din3", "tsin_b_din4", "tsin_b_din5", "tsin_b_din6", "tsin_b_din7";
function = "tsin_b";
};
};
dtv_params_pin {
phandle = <0x74>;
mux {
groups = "GPIOH_6", "GPIOH_7", "GPIOZ_0", "GPIOZ_1", "GPIOZ_6";
function = "gpio_periphs";
};
};
dvb {
compatible = "amlogic,dvb";
dev_name = "dvb";
ts0 = "serial";
ts0_control = <0x800>;
ts0_invert = <0x00>;
ts1 = "parallel";
ts1_control = <0x00>;
ts1_invert = <0x00>;
interrupts = <0x00 0x17 0x01 0x00 0x05 0x01 0x00 0x35 0x01 0x00 0x13 0x01 0x00 0x19 0x01 0x00 0x12 0x01 0x00 0x18 0x01>;
interrupt-names = "demux0_irq", "demux1_irq", "demux2_irq", "dvr0_irq", "dvr1_irq", "dvrfill0_fill", "dvrfill1_flush";
pinctrl-names = "s_ts0", "p_ts1";
pinctrl-0 = <0x72>;
pinctrl-1 = <0x73>;
clocks = <0x02 0x39 0x02 0x43 0x02 0x40>;
clock-names = "demux", "ahbarb0", "parser_top";
};
dvb_s_ts0_ao_pins = "/pinctrl@ff800014/dvb_s_ts0_ao_pins";
dvb_p_ts1_z_pins = "/pinctrl@ff634480/dvb_p_ts1_z_pins";
I want to modify sm1_s905x3_4g.dts according to this. Maybe you can add this demod an tuner to coreelec amlogic dvb drivers
There is not enough information, upload the whole android DTS. I can prepare device tree with AVL6762 for You to test. But for AVL6261C, the drivers needs to be imported into CE project first and I don’t have time for it now. It looks like this driver MAY work, so there is some hope.

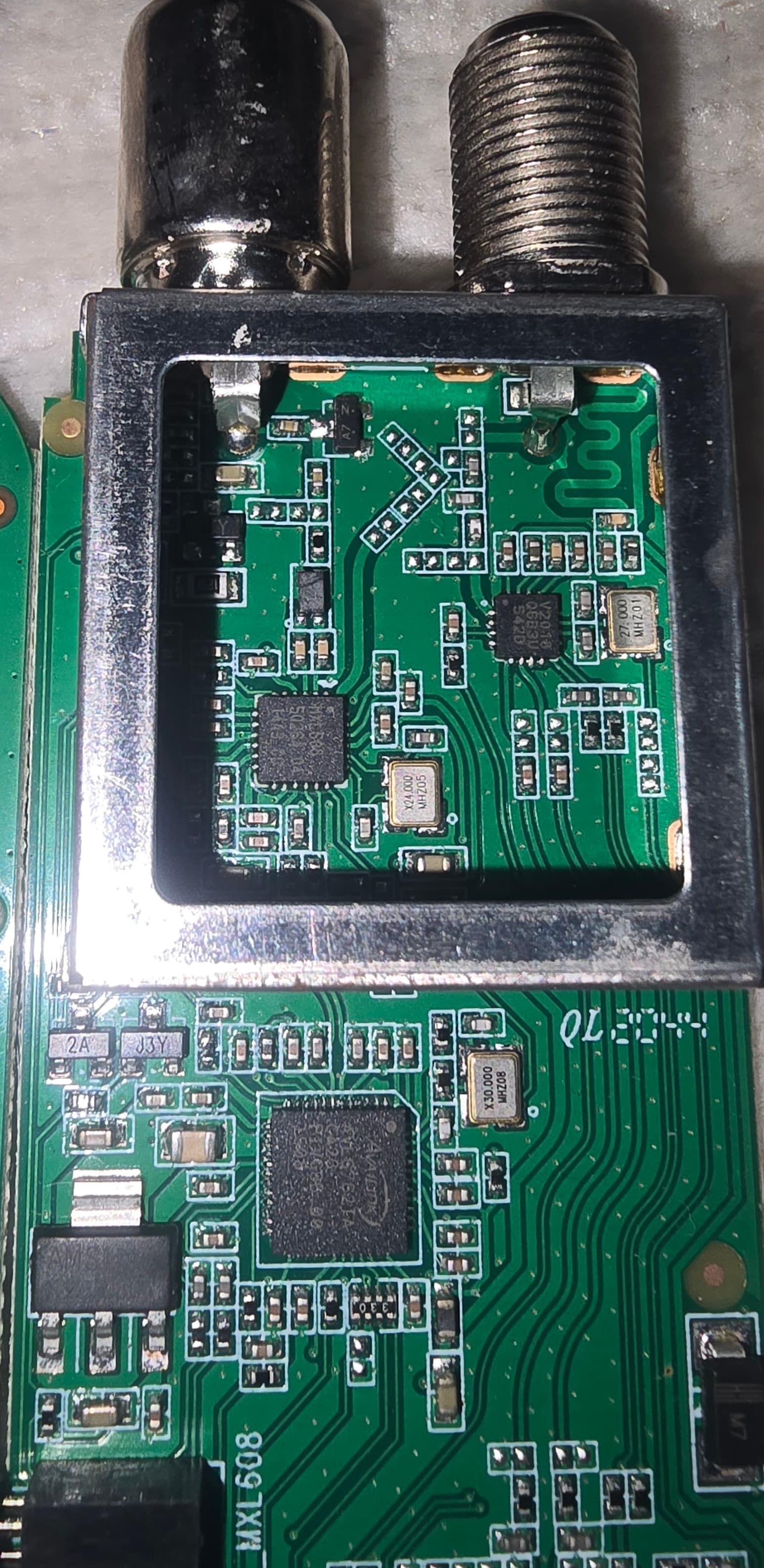

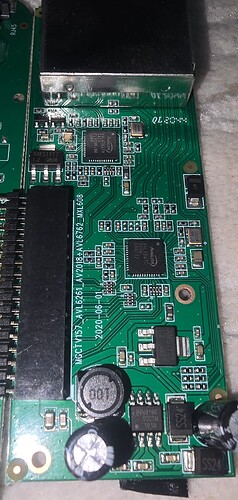

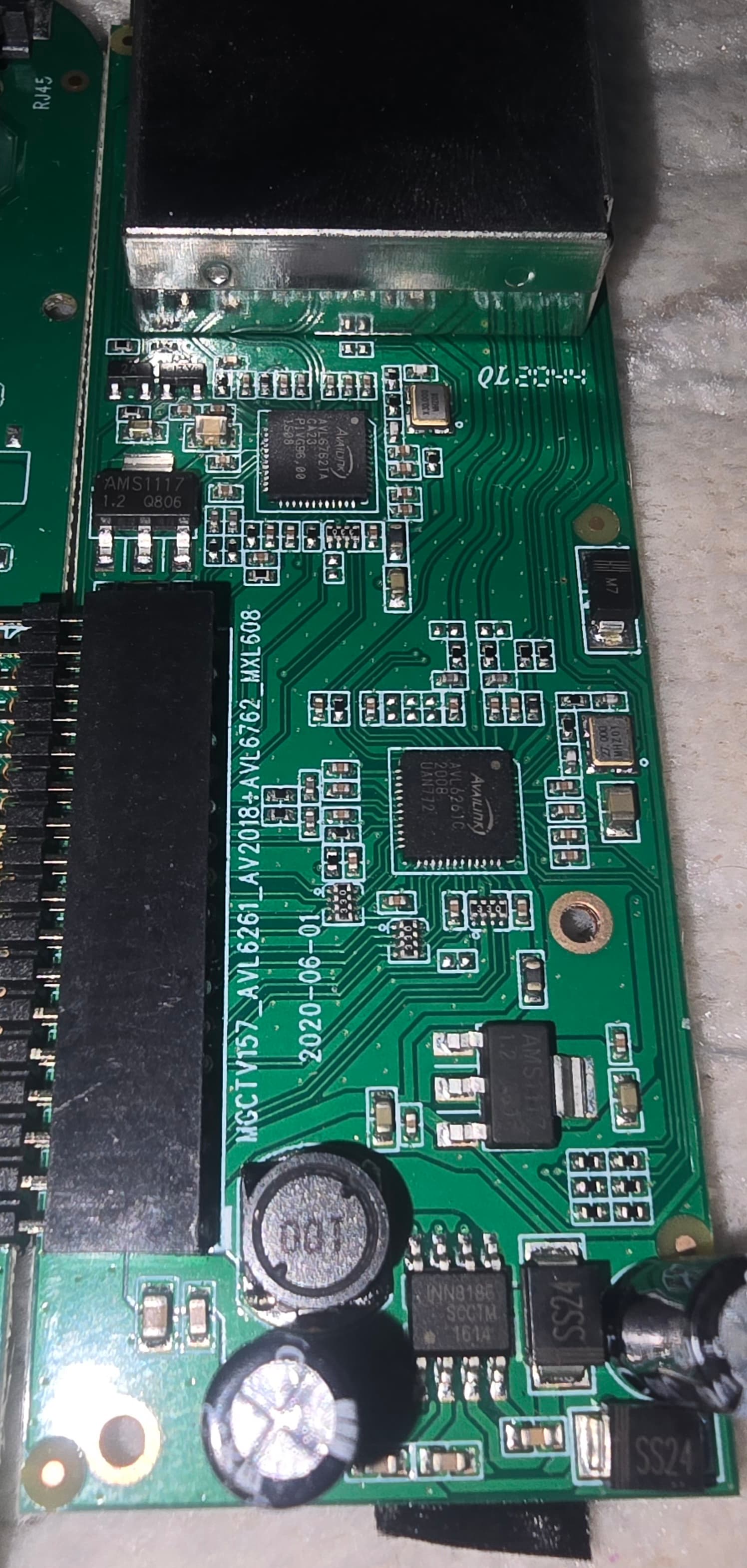

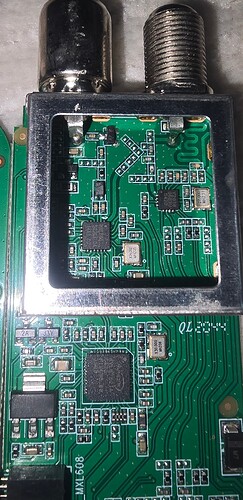

nice pictures
How do You know avl6762 is on ts0 ?
There is also no information in dts which i2c bus is used for which demod. I assumed that i2c2 is for avl6762 and i2c3 is foavl6261c.
Try this device tree:
sm1_s905x3_avl6762_serial.dtb (77.2 KB)
If frontend is not detected, then please install system-tools addon and run:
i2cdetect -y 2
i2cdetect -y 3
And then paste its output together with dmesg output here.
000, colorattribute 444,8bit
13:05:48.430 read hdmimode 1080p60hz, colorspace <NULL>, colordepth <NULL>
13:05:48.436 do_get_parse_edid: autoMode = false, manualMode=16
13:05:48.441 isYuv4kSink: false, maxTMDSRate=655
13:05:48.441 do_get_parse_edid: non-yuv4k sink: inColorSpace: HDMI_COLOR_FORMAT_RGB
13:05:48.453 do_get_parse_edid: default inColorDepth: HDMI_COLOR_DEPTH_24B
13:05:48.458 TV is same, initial mode is: 1080p60hz attr: 444,8bit
13:05:48.458 dolby_status 0
13:05:48.464 dolby_status 0
13:05:48.464 dolby_vision_process: hpd: dv disabled
13:05:48.467 Saving Environment to aml-storage...
13:05:48.472 mmc env offset: 0x4d400000
13:05:48.472 Writing to MMC(1)... done
13:05:48.481 [OSD]load fb addr from dts:/meson-fb
13:05:48.484 [OSD]load fb addr from dts:/fb
13:05:48.490 [OSD]set initrd_high: 0x7f800000
13:05:48.490 [OSD]fb_addr for logo: 0x7f800000
13:05:48.494 [OSD]load fb addr from dts:/meson-fb
13:05:48.497 [OSD]load fb addr from dts:/fb
13:05:48.503 [OSD]fb_addr for logo: 0x7f800000
13:05:48.503 [OSD]VPP_OFIFO_SIZE:0xfff01fff
13:05:48.509 [CANVAS]canvas init
13:05:48.509 [CANVAS]addr=0x7f800000 width=3840, height=2160
13:05:48.541 [OSD]osd_hw.free_dst_data: 0,1919,0,1079
13:05:48.541 [OSD]osd1_update_disp_freescale_enable
13:05:48.546 cvbs: outputmode[1080p60hz] is invalid
13:05:48.546 vpp: vpp_matrix_update: 2
13:05:48.551 set hdmitx VIC = 16
13:05:48.551 aml_audio_init
13:05:48.558 config HPLL = 5940000 frac_rate = 1
13:05:48.558 HPLL: 0x3b3a04f7
13:05:48.558 HPLL: 0x1b3a04f7
13:05:48.563 HPLLv1: 0xdb3a04f7
13:05:48.563 config HPLL done
13:05:48.563 j = 6 vid_clk_div = 1
13:05:48.566 hdmitx: set enc for VIC: 16
13:05:48.580 hdmitx phy setting done
13:05:48.599 rx version is 2.0 div=10
13:05:48.612 hdmtix: set audio
13:05:48.612 hdmi_tx_set: save mode: 1080p60hz, attr: 444,8bit, hdmichecksum: 0xa7de0000
13:05:48.618 Saving Environment to aml-storage...
13:05:48.623 mmc env offset: 0x4d400000
13:05:48.623 Writing to MMC(1)... done
13:05:48.631 dolby_status 0
13:05:48.631 dolby_status 0
13:05:48.631 hdr_packet
13:05:48.631 vpp: hdr_policy = 0
13:05:48.636 vpp: Rx hdr_info.hdr_sup_eotf_smpte_st_2084 = 0
13:05:48.636 s_version: U-Boot 2015.01
13:05:48.651 amlkey_init() enter!
13:05:48.651 amlkey_init() 71: already init!
13:05:48.653 [EFUSE_MSG]keynum is 4
13:05:48.666 [KM]Error:f[key_manage_query_size]L515:key[deviceid] not programed yet
13:05:48.672 [KM]Error:f[keymanage_dts_get_key_device]L105:oemkey key name is not exist
13:05:48.677 [KM]Error:f[_get_km_ops_by_name]L240:key oemkey not know device 4
13:05:48.683 [KM]Error:f[key_manage_query_exist]L554:There isn't dts cfg for key[oemkey]
13:05:48.689 [KM]Error:f[key_manage_query_size]L511:Fail in query key exist
13:05:48.697 gpio: pin GPIOAO_3 (gpio 3) value is 1
13:05:48.697 Command: bcb uboot-command
13:05:48.701 Start read misc partition datas!
13:05:48.703 BCB hasn't any datas,exit!
13:05:48.706 s_version: U-Boot 2015.01
13:05:48.719 amlkey_init() enter!
13:05:48.719 amlkey_init() 71: already init!
13:05:48.721 [EFUSE_MSG]keynum is 4
13:05:48.734 [KM]Error:f[key_manage_query_size]L515:key[deviceid] not programed yet
13:05:48.740 [KM]Error:f[keymanage_dts_get_key_device]L105:oemkey key name is not exist
13:05:48.746 [KM]Error:f[_get_km_ops_by_name]L240:key oemkey not know device 4
13:05:48.751 [KM]Error:f[key_manage_query_exist]L554:There isn't dts cfg for key[oemkey]
13:05:48.757 [KM]Error:f[key_manage_query_size]L511:Fail in query key exist
13:05:48.761 InUsbBurn
13:05:49.115 wait for phy ready count is 0
13:05:49.506 noSof
13:05:49.509 sof timeout, reset usb phy tuning
13:05:49.665 Hit Enter or space or Ctrl+C key to stop autoboot -- : 1 ^H^H^H 0
13:05:49.771 card in
13:05:49.771 co-phase 0x2, tx-dly 0, clock 400000
13:05:49.771 co-phase 0x2, tx-dly 0, clock 400000
13:05:49.775 co-phase 0x2, tx-dly 0, clock 400000
13:05:49.xxx co-phase 0x2, tx-dly 0, clock 400000
13:05:49.xxx co-phase 0x2, tx-dly 0, clock 40000000
13:05:49.851 init_part() 282: PART_TYPE_DOS
13:05:49.851 [mmc_init] mmc init success
13:05:49.851 Device: SDIO Port B
13:05:49.857 Manufacturer ID: 2
13:05:49.857 OEM: 544d
13:05:49.857 Name: SA08G
13:05:49.857 Tran Speed: 50000000
13:05:49.864 Rd Block Len: 512
13:05:49.864 SD version 3.0
13:05:49.864 High Capacity: Yes
13:05:49.868 Capacity: (0x1d2400000 Bytes) 7.3 GiB
13:05:49.868 mmc clock: 40000000
13:05:49.870 Bus Width: 4-bit
13:05:49.873 reading cfgload
13:05:49.882 2226 bytes read in 5 ms (434.6 KiB/s)
13:05:49.882 ## Executing script at 01080000
13:05:49.889 Using device mmc, number 0, partition 1, CoreELEC on eMMC: no
13:05:49.892 reading resolution.ini
13:05:49.899 115 bytes read in 5 ms (22.5 KiB/s)
13:05:49.902 reading config.ini
13:05:49.909 5014 bytes read in 5 ms (978.5 KiB/s)
13:05:49.912 reading kernel.img
13:05:51.611 25028608 bytes read in 1694 ms (14.1 MiB/s)
13:05:51.613 reading dtb.img
13:05:51.626 79014 bytes read in 12 ms (6.3 MiB/s)
13:05:51.634 avb2: 0
13:05:51.634 ee_gate_off ...
13:05:51.634 avb2: 0
13:05:51.634 ## Booting Android Image at 0x01080000 ...
13:05:51.636 reloc_addr =d3de7980
13:05:51.757 copy done
13:05:51.757 No androidboot.dtbo_idx configured[store]Is good fdt check header, no need decrypt!
13:05:51.761 active_slot is normal
13:05:51.767 load dtb from 0x1000000 ......
13:05:51.767 Amlogic multi-dtb tool
13:05:51.767 Single dtb detected
13:05:51.773 find 1 dtbos
13:05:51.773 No androidboot.dtbo_idx configured
13:05:51.779 And no dtbos will be applied
13:05:51.779 Uncompressing Kernel Image ... OK
13:05:52.101 kernel loaded at 0x02000000, end = 0x046be808
13:05:52.106 Loading Ramdisk to 7f107000, end 7f7ff0fc ... OK
13:05:52.143 Loading Device Tree to 000000001ffe9000, end 000000001ffff55b ... OK
13:05:52.149 fdt_fixup_memory_banks, reg:0000000000000000
13:05:52.153
13:05:52.153 Starting kernel ...
13:05:52.153
13:05:52.155 uboot time: 5865646 us
13:05:54.675 [ 0.000000] ^I07400000 - 07500000, 1024 KB, ramoops@0x07400000
13:05:54.679 [ 0.000000] ^I00000000 - 00080000, 512 KB, linux,dmc_monitor
13:05:54.684 [ 0.000000] ^I04f00000 - 05000000, 1024 KB, linux,iotrace
13:05:54.690 [ 0.000000] ^I04e00000 - 04f00000, 1024 KB, linux,defendkey
13:05:54.696 [ 0.000000] ^I41000000 - 41080000, 512 KB, linux,bl40
13:05:54.702 [ 0.000000] ^Id5800000 - f0800000, 442368 KB, linux,codec_mm_cma
13:05:54.707 [ 0.000000] ^Id1800000 - d5800000, 65536 KB, linux,vdin0_cma
13:05:54.713 [ 0.000000] ^If0900000 - f0900000, 0 KB, linux,codec_mm_reserved
13:05:54.718 [ 0.000000] ^I05000000 - 05400000, 4096 KB, linux,secmon
13:05:54.723 [ 0.000000] ^Ice400000 - d1800000, 53248 KB, linux,ion-dev
13:05:54.730 [ 0.000000] ^Icc400000 - ce400000, 32768 KB, linux,vm0_cma
13:05:54.734 [ 0.000000] ^Ic6c00000 - cc400000, 90112 KB, heap-gfx
13:05:54.740 [ 0.000000] ^Ib5c00000 - c6c00000, 278528 KB, heap-fb
13:05:54.746 [ 0.000000] ^If0900000 - f0900000, 0 KB, linux,ppmgr
13:05:54.752 [ 2.160153] invalid fiq_phy_addr
13:05:54.752 [ 2.166789] call aml_debug_mte_init() ret=-22
13:05:54.757 [ 2.169728] DMC DEBUG MEMORY ENABLED: range:0-7ffff, device=ff07fe, debug=11d
13:05:54.768 [ 2.173970] range:00000000 - 0007ffff, device:ff07fe
13:05:54.768 [ 2.178911] DMC SEC CHECK PASS.
13:05:54.773 [ 2.178911] DMC_SEC_STATUS:0
13:05:54.779 [ 2.178911] DMC_VIO_ADDR0:0
13:05:54.779 [ 2.178911] DMC_VIO_ADDR1:0
13:05:54.784 [ 2.178911] DMC_VIO_ADDR2:5124f20
13:05:54.784 [ 2.178911] DMC_VIO_ADDR3:1030400
13:05:54.797 [ 2.211371] mbox_pl_parse_dt 14
13:05:54.805 [ 2.216345] cpu regulator not ready, retry!
13:05:54.805 [ 2.217587] can't get efuse_pattern_size, use default size0x400
13:05:54.810 [ 2.220851] efuse efuse: can't get reg resource
13:05:54.816 [ 2.225565] failed to find match efuse key
13:05:54.821 [ 2.230627] defendkey ff800228.defendkey: don't config secureboot_mask
13:05:54.891 [ 2.301602] meson-gx-mmc ffe05000.sd: 5 [0x0], TIMEOUT[0x2800]
13:05:54.895 [ 2.302768] meson-gx-mmc ffe05000.sd: 5 [0x0], TIMEOUT[0x2800]
13:05:54.901 [ 2.308642] meson-gx-mmc ffe05000.sd: 5 [0x0], TIMEOUT[0x2800]
13:05:54.907 [ 2.314377] meson-gx-mmc ffe05000.sd: 5 [0x0], TIMEOUT[0x2800]
13:05:54.912 [ 2.324909] add demod ops fail -19
13:05:54.912 [ 2.324947] dvb power gpio invalid
13:05:54.918 [ 2.327825] now in codec_mm_module_init
13:05:54.923 [ 2.330242] tee_protect_mem open context failed
13:05:54.923 [ 2.335767] create prealloc task00000000205789b5, for cpu 0
13:05:54.929 [ 2.340145] create prealloc task00000000721100a8, for cpu 1
13:05:54.934 [ 2.345686] create prealloc task000000007f12c3e1, for cpu 2
13:05:54.940 [ 2.354327] error: vout_meas_ctrl_init_dft: get vdin_meas_clk err!
13:05:55.093 [ 2.504011] error: aml_vout_get_dt_info: can't get vsync irq
13:05:55.098 [ 2.506505] aml_media: unable to register osd driver, r=0xffffffed
13:05:55.103 [ 2.512259] amlogic_heap_secure_dma_buf_init: heap-secure not added in dts.
13:05:55.109 [ 2.521400] vdin0 get fclk_div5 err
13:05:55.115 [ 2.521455] vdin_drv_probe: vdin0 cannot get msr clk !!!
13:05:55.115 [ 2.525911] vpu: error: vpu_vmod_mem_pd_get: invalid vpu mod: 72
13:05:55.126 [ 2.532405] vdin1 get fclk_div5 err
13:05:55.126 [ 2.535363] vdin_drv_probe: vdin1 cannot get msr clk !!!
13:05:55.136 [ 2.547801] video_composer_module_init_1
13:05:55.136 [ 2.548358] video_composer don't find vpu_dma_mask
13:05:55.142 [ 2.550984] video_composer don't find vpu_dma_mask
13:05:55.160 [ 2.571761] no match support_4k for amlvideo2.0, disable as default
13:05:55.166 [ 2.572407] don't find codec_mm_alloc, use default parm.
13:05:55.171 [ 2.577970] no match support_4k for amlvideo2.1, disable as default
13:05:55.177 [ 2.583980] don't find codec_mm_alloc, use default parm.
13:05:55.182 [ 2.593805] vpu: error: vpu_vmod_mem_pd_get: invalid vpu mod: 72
tryed your dtb and here is uarth log. Device does not boot. Since DVB-S2X tuner data packets are large, I think it should be connected in parallel. I use CoreELEC-Amlogic-no.aarch64-22.0-Piers_alpha1-Generic.img kernel 5.1
this is not full log, You need to disable quiet mode. add coreelec='' or even better coreelec='debugging' to config.ini
18:02:15.050 銼M1:BL:511f6b:81ca2f;FEAT:A0F83180:20282000;POC:F;RCY:0;EMMC:0;READ:0;0.0;CHK:0;
18:02:15.477 bl2_stage_init 0x01
18:02:15.477 bl2_stage_init 0x81
18:02:15.477 hw id: 0x0001 - pwm id 0x00
18:02:15.483 bl2_stage_init 0xc0
18:02:15.483 bl2_stage_init 0x02
18:02:15.483
18:02:15.483 L0:00000000
18:02:15.489 L1:00000703
18:02:15.489 L2:00008067
18:02:15.489 L3:15000020
18:02:15.489 S1:00000000
18:02:15.489 B2:20282000
18:02:15.494 B1:a0f83180
18:02:15.494
18:02:15.494 TE: 166963
18:02:15.494
18:02:15.494 BL2 Built : 15:21:42, Mar 26 2020. g12a g486bc38 - gongwei.chen@droid11-sz
18:02:15.500
18:02:15.500 Board ID = 1
18:02:15.500 Set cpu clk to 24M
18:02:15.505 Set clk81 to 24M
18:02:15.505 Use GP1_pll as DSU clk.
18:02:15.505 DSU clk: 1200 Mhz
18:02:15.511 CPU clk: 1200 MHz
18:02:15.511 Set clk81 to 166.6M
18:02:15.511 eMMC boot @ 0
18:02:15.517 sw8 s
18:02:15.517 board id: 1
18:02:15.517 Load FIP HDR DDR from eMMC, src: 0x00010200, des: 0xfffd0000, size: 0x00004000, part: 0
18:02:15.533 fw parse done
18:02:15.607 PIEI prepare done
18:02:15.607 00000000
18:02:15.607 emmc switch 1 ok
18:02:15.607 ddr saved addr:00016000
18:02:15.611 Load ddr parameter from eMMC, src: 0x02c00000, des: 0xfffd0000, size: 0x00001000, part: 0
18:02:15.617 00000000
18:02:15.617 emmc switch 0 ok
18:02:15.617 fastboot data verify
18:02:15.623 result: 255
18:02:15.623 Cfg max: 12, cur: 1. Board id: 255. Force loop cfg
18:02:15.628 DDR4 probe
18:02:15.628
18:02:15.628 LPDDR4_PHY_V_0_1_21-Built : 15:37:51, Mar 26 2020. g12a gf098346 - gongwei.chen@droid11-sz
18:02:15.635 ddr clk to 1320MHz
18:02:15.683
18:02:15.683 dmc_version 0001
18:02:15.692 Check phy result
18:02:15.692 INFO : End of initialization
18:02:15.692 INFO : End of read enable training
18:02:15.698 INFO : End of fine write leveling
18:02:15.698 INFO : ERROR : Training has failed!
18:02:15.703 1D training failed
18:02:15.703 Cfg max: 12, cur: 2. Board id: 255. Force loop cfg
18:02:15.708 DDR4 probe
18:02:15.708 ddr clk to 912MHz
18:02:15.757
18:02:15.757 dmc_version 0001
18:02:15.765 Check phy result
18:02:15.765 INFO : End of initialization
18:02:15.765 INFO : End of read enable training
18:02:15.771 INFO : End of fine write leveling
18:02:15.771 INFO : End of read dq deskew training
18:02:15.776 INFO : End of MPR read delay center optimization
18:02:15.782 INFO : End of Write leveling coarse delay
18:02:15.782 INFO : End of write delay center optimization
18:02:15.788 INFO : End of read delay center optimization
18:02:15.793 INFO : End of max read latency training
18:02:15.798 INFO : Training has run successfully!
18:02:15.798 1D training succeed
18:02:15.853 Check phy result
18:02:15.853 INFO : End of initialization
18:02:15.958 INFO : End of 2D read delay Voltage center optimization
18:02:16.059 INFO : End of 2D write delay Voltage center optimization
18:02:16.059 INFO : Training has run successfully!
18:02:16.065
18:02:16.065 soc_vref_reg_value 0x 0000002c 0000002c 0000002d 0000002c 00000030 0000002e 0000002f 0000002c 0000002d 0000002b 0000002e 00000032 00000030 0000002f 0000002e 0000002d 0000002d 0000002e 0000002c 0000002c 00000030 0000002d 0000002e 0000002c 0000002d 00000030 0000002f 0000002e 0000002e 0000002c 0000002e 0000002c dwc_ddrphy_apb_wr((0<<20)|(2<<16)|(0<<12)|(0xb0):0001
18:02:16.098 dram_vref_reg_value 0x 0000001a
18:02:16.098 2D training succeed
18:02:16.104 auto size-- 65535DDR cs0 size: 4096MB
18:02:16.104 DDR cs1 size: 0MB
18:02:16.110 DMC_DDR_CTRL: 0050002dDDR size: 3928MB
18:02:16.110 cs0 DataBus test pass
18:02:16.115 cs0 AddrBus test pass
18:02:16.115
18:02:16.115 non-sec scramble use zero key
18:02:16.115 ddr scramble enabled
18:02:16.121
18:02:16.121 100bdlr_step_size ps== 464
18:02:16.121 result report
18:02:16.121 boot times 0Enable ddr reg access
18:02:16.126 00000000
18:02:16.126 emmc switch 3 ok
18:02:16.126 Authentication key not yet programmed
18:02:16.132 get rpmb counter error 0x00000007
18:02:16.138 00000000
18:02:16.138 emmc switch 0 ok
18:02:16.138 Load FIP HDR from eMMC, src: 0x00010200, des: 0x01700000, size: 0x00004000, part: 0
18:02:16.143 Load BL3X from eMMC, src: 0x00078200, des: 0x01768000, size: 0x000f6c00, part: 0
18:02:16.340 0.0;M3 CHK:0;cm4_sp_mode 0
18:02:16.353 [Image: g12a_v1.1.3394-7d43064d5 2020-05-07 15:37:06 gongwei.chen@droid11-sz]
18:02:16.358 OPS=0x01
18:02:16.358 ring efuse init
18:02:16.365 2b 0b 01 00 01 1b 32 00 00 13 38 38 57 4b 52 50
18:02:16.365 [0.014467 Inits done]
18:02:16.369 secure task start!
18:02:16.369 high task start!
18:02:16.369 low task start!
18:02:16.370 boot bl31
18:02:16.383 NOTICE: BL31: v1.3(release):5d6723eeb
18:02:16.383 NOTICE: BL31: Built : 15:05:59, Mar 17 2020
18:02:16.388 NOTICE: BL31: G12A normal boot!
18:02:16.411 NOTICE: BL31: BL33 decompress pass
18:02:16.411 ERROR: Error initializing runtime service opteed_fast
18:02:16.416
18:02:16.416
18:02:16.416 U-Boot 2015.01 (Oct 13 2020 - 19:23:24)
18:02:16.421
18:02:16.421 DRAM: 3.8 GiB
18:02:16.421 Relocation Offset is: d6d72000
18:02:16.457 mmu cfg end: 0xe0000000
18:02:16.457 mmu cfg end: 0xe0000000
18:02:16.490 spi_post_bind(spifc): req_seq = 0
18:02:16.490 register usb cfg[0][1] = 00000000d7e98388
18:02:16.495 NAND: get_sys_clk_rate_mtd() 292, clock setting 200!
18:02:16.501 bus cycle0: 6,timing: 7
18:02:16.501 NAND device id: 0 ff ff ff ff ff
18:02:16.507 No NAND device found!!!
18:02:16.507 nand init failed: -6
18:02:16.507 get_sys_clk_rate_mtd() 292, clock setting 200!
18:02:16.512 bus cycle0: 6,timing: 7
18:02:16.512 NAND device id: 0 ff ff ff ff ff
18:02:16.518 No NAND device found!!!
18:02:16.518 nand init failed: -6
18:02:16.523 MMC: aml_priv->desc_buf = 0x00000000d3d62a70
18:02:16.523 aml_priv->desc_buf = 0x00000000d3d64db0
18:02:16.529 SDIO Port B: 0, SDIO Port C: 1
18:02:16.535 co-phase 0x3, tx-dly 0, clock 400000
18:02:16.535 co-phase 0x3, tx-dly 0, clock 400000
18:02:16.539 co-phase 0x3, tx-dly 0, clock 400000
18:02:16.548 emmc/sd response timeout, cmd8, cmd->cmdarg=0x1aa, status=0x1ff2800
18:02:16.555 emmc/sd response timeout, cmd55, cmd->cmdarg=0x0, status=0x1ff2800
18:02:16.680 co-phase 0x3, tx-dly 0, clock 400000
18:02:16.686 co-phase 0x3, tx-dly 0, clock 40000000
18:02:16.686 [set_emmc_calc_fixed_adj][875]find fixed adj_delay=20
18:02:16.693 init_part() 297: PART_TYPE_AML
18:02:16.693 [mmc_init] mmc init success
18:02:16.714 Amlogic multi-dtb tool
18:02:16.714 Multi dtb detected
18:02:16.714 Multi dtb tool version: v2 .
18:02:16.720 Support 2 dtbs.
18:02:16.720 aml_dt soc: sm1 platform: ac213 variant: 4g
18:02:16.725 dtb 0 soc: sm1 plat: ac213 vari: 2g
18:02:16.731 dtb 1 soc: sm1 plat: ac213 vari: 4g
18:02:16.737 Find match dtb: 1
18:02:16.737 start dts,buffer=00000000d3d67620,dt_addr=00000000d3d7e620
18:02:16.743 get_partition_from_dts() 92: ret 0
18:02:16.748 Amlogic multi-dtb tool
18:02:16.748 Multi dtb detected
18:02:16.748 Multi dtb tool version: v2 .
18:02:16.753 Support 2 dtbs.
18:02:16.753 aml_dt soc: sm1 platform: ac213 variant: 4g
18:02:16.759 dtb 0 soc: sm1 plat: ac213 vari: 2g
18:02:16.765 dtb 1 soc: sm1 plat: ac213 vari: 4g
18:02:16.768 Find match dtb: 1
18:02:16.769 parts: 17
18:02:16.773 00: logo 0000000000800000 1
18:02:16.777 01: recovery 0000000001800000 1
18:02:16.781 02: misc 0000000000800000 1
18:02:16.786 03: dtbo 0000000000800000 1
18:02:16.790 04: cri_data 0000000000800000 2
18:02:16.794 05: param 0000000001000000 2
18:02:16.800 06: boot 0000000001000000 1
18:02:16.800 set has_boot_slot = 0
18:02:16.805 07: rsv 0000000001000000 1
18:02:16.809 08: metadata 0000000001000000 1
18:02:16.813 09: vbmeta 0000000000200000 1
18:02:16.817 10: tee 0000000002000000 1
18:02:16.822 11: vendor 0000000014000000 1
18:02:16.826 12: odm 0000000008000000 1
18:02:16.830 13: system 0000000050000000 1
18:02:16.835 14: product 0000000008000000 1
18:02:16.839 15: cache 0000000046000000 2
18:02:16.843 16: data ffffffffffffffff 4
18:02:16.850 init_part() 297: PART_TYPE_AML
18:02:16.850 eMMC/TSD partition table have been checked OK!
18:02:16.860 crc32_s:0x1577dad == storage crc_pattern:0x1577dad!!!
18:02:16.869 crc32_s:0xee152b83 == storage crc_pattern:0xee152b83!!!
18:02:16.880 crc32_s:0x79f50f07 == storage crc_pattern:0x79f50f07!!!
18:02:16.880 mmc env offset: 0x4d400000
18:02:16.88x In: serial
18:02:16.88x Out: serial
18:02:16.88x Err: serial
18:02:16.895 reboot_mode=cold_boot
18:02:16.895 [store]To run cmd[emmc dtb_read 0x1000000 0x40000]
18:02:16.908 _verify_dtb_checksum()-3476: calc b96c7eb8, store b96c7eb8
18:02:16.921 _verify_dtb_checksum()-3476: calc b96c7eb8, store b96c7eb8
18:02:16.921 dtb_read()-3691: total valid 2
18:02:16.927 update_old_dtb()-3672: do nothing
18:02:16.927 Amlogic multi-dtb tool
18:02:16.933 Multi dtb detected
18:02:16.933 Multi dtb tool version: v2 .
18:02:16.938 Support 2 dtbs.
18:02:16.938 aml_dt soc: sm1 platform: ac213 variant: 4g
18:02:16.944 dtb 0 soc: sm1 plat: ac213 vari: 2g
18:02:16.949 dtb 1 soc: sm1 plat: ac213 vari: 4g
18:02:16.952 Find match dtb: 1
18:02:16.962 amlkey_init() enter!
18:02:16.979 [EFUSE_MSG]keynum is 4
18:02:16.993 vpu: driver version: v20190313
18:02:16.993 vpu: detect chip type: 11
18:02:16.993 vpu: clk_level default: 7(666667000Hz), max: 7(666667000Hz)
18:02:16.998 vpu: clk_level in dts: 7
18:02:17.006 vpu: vpu_power_on
18:02:17.006 vpu: set_vpu_clk
18:02:17.006 vpu: set clk: 666667000Hz, readback: 666666667Hz(0x100)
18:02:17.011 vpu: set_vpu_clk finish
18:02:17.011 vpu: vpu_module_init_config
18:02:17.017 vpp: vpp_init
18:02:17.017 vpp: vpp osd2 matrix rgb2yuv..............
18:02:17.022 hdr_func 4, hdr_process_select 0x1
18:02:17.022 cvbs: cpuid:0x2b
18:02:17.027 cvbs: find performance_pal config
18:02:17.027 Net: dwmac.ff3f0000amlkey_init() enter!
18:02:17.059 amlkey_init() 71: already init!
18:02:17.062 [EFUSE_MSG]keynum is 4
18:02:17.074
18:02:17.074 CONFIG_AVB2: null
18:02:17.074 Start read misc partition datas!
18:02:17.080 info->magic =
18:02:17.080 info->version_major = 1
18:02:17.080 info->version_minor = 0
18:02:17.086 info->slots[0].priority = 15
18:02:17.086 info->slots[0].tries_remaining = 7
18:02:17.091 info->slots[0].successful_boot = 0
18:02:17.091 info->slots[1].priority = 14
18:02:17.097 info->slots[1].tries_remaining = 7
18:02:17.097 info->slots[1].successful_boot = 0
18:02:17.103 info->crc32 = -1075449479
18:02:17.103 active slot = 0
18:02:17.103 wipe_data=successful
18:02:17.108 wipe_cache=successful
18:02:17.108 upgrade_step=2
18:02:17.108 reboot_mode:::: cold_boot
18:02:17.112 s_version: U-Boot 2015.01
18:02:17.124 amlkey_init() enter!
18:02:17.124 amlkey_init() 71: already init!
18:02:17.127 [EFUSE_MSG]keynum is 4
18:02:17.140 [KM]Error:f[key_manage_query_size]L515:key[deviceid] not programed yet
18:02:17.146 [KM]Error:f[keymanage_dts_get_key_device]L105:oemkey key name is not exist
18:02:17.152 [KM]Error:f[_get_km_ops_by_name]L240:key oemkey not know device 4
18:02:17.157 [KM]Error:f[key_manage_query_exist]L554:There isn't dts cfg for key[oemkey]
18:02:17.163 [KM]Error:f[key_manage_query_size]L511:Fail in query key exist
18:02:17.168 hpd_state=0
18:02:17.168 do_hpd_detect: hdmimode=1080p60hz
18:02:17.174 do_hpd_detect: colorattribute=444,8bit
18:02:17.174 Saving Environment to aml-storage...
18:02:17.182 mmc env offset: 0x4d400000
18:02:17.182 Writing to MMC(1)... done
18:02:17.190 no sink, fallback to 720p60hz[4]
18:02:17.190 hdr mode is 0
18:02:17.190 dv mode is ver:0 len: 0
18:02:17.193 hdr10+ mode is 0
18:02:17.235 read hdmichecksum 0x00000000, colorattribute 444,8bit
18:02:17.235 read hdmimode 1080p60hz, colorspace <NULL>, colordepth <NULL>
18:02:17.240 do_get_parse_edid: autoMode = false, manualMode=16
18:02:17.246 isYuv4kSink: false, maxTMDSRate=150
18:02:17.251 do_get_parse_edid: non-yuv4k sink: inColorSpace: HDMI_COLOR_FORMAT_RGB
18:02:17.261 do_get_parse_edid: default inColorDepth: HDMI_COLOR_DEPTH_24B
18:02:17.264 TV is same, initial mode is: 576cvbs attr: 444,8bit
18:02:17.269 dolby_status 0
18:02:17.269 dolby_status 0
18:02:17.269 dolby_vision_process: no tv and dv disabled
18:02:17.273 Saving Environment to aml-storage...
18:02:17.278 mmc env offset: 0x4d400000
18:02:17.278 Writing to MMC(1)... done
18:02:17.284 [OSD]load fb addr from dts:/meson-fb
18:02:17.287 [OSD]load fb addr from dts:/fb
18:02:17.293 [OSD]set initrd_high: 0x7f800000
18:02:17.293 [OSD]fb_addr for logo: 0x7f800000
18:02:17.297 [OSD]load fb addr from dts:/meson-fb
18:02:17.300 [OSD]load fb addr from dts:/fb
18:02:17.306 [OSD]fb_addr for logo: 0x7f800000
18:02:17.306 [OSD]VPP_OFIFO_SIZE:0xfff01fff
18:02:17.312 [CANVAS]canvas init
18:02:17.312 [CANVAS]addr=0x7f800000 width=3840, height=2160
18:02:17.344 [OSD]osd_hw.free_dst_data: 0,719,0,575
18:02:17.344 [OSD]osd1_update_disp_freescale_enable
18:02:17.345 vpp: vpp_matrix_update: 2
18:02:17.351 cvbs_performance_enhancement
18:02:17.351 cvbs_config_hdmipll_g12a
18:02:17.357 cvbs_set_vid2_clk
18:02:17.357 dolby_status 0
18:02:17.357 dolby_status 0
18:02:17.362 hdr_packet
18:02:17.362 vpp: hdr_policy = 0
18:02:17.362 vpp: Rx hdr_info.hdr_sup_eotf_smpte_st_2084 = 0
18:02:17.366 s_version: U-Boot 2015.01
18:02:17.379 amlkey_init() enter!
18:02:17.379 amlkey_init() 71: already init!
18:02:17.381 [EFUSE_MSG]keynum is 4
18:02:17.395 [KM]Error:f[key_manage_query_size]L515:key[deviceid] not programed yet
18:02:17.400 [KM]Error:f[keymanage_dts_get_key_device]L105:oemkey key name is not exist
18:02:17.406 [KM]Error:f[_get_km_ops_by_name]L240:key oemkey not know device 4
18:02:17.412 [KM]Error:f[key_manage_query_exist]L554:There isn't dts cfg for key[oemkey]
18:02:17.417 [KM]Error:f[key_manage_query_size]L511:Fail in query key exist
18:02:17.426 gpio: pin GPIOAO_3 (gpio 3) value is 1
18:02:17.426 Command: bcb uboot-command
18:02:17.429 Start read misc partition datas!
18:02:17.432 BCB hasn't any datas,exit!
18:02:17.434 s_version: U-Boot 2015.01
18:02:17.447 amlkey_init() enter!
18:02:17.447 amlkey_init() 71: already init!
18:02:17.450 [EFUSE_MSG]keynum is 4
18:02:17.463 [KM]Error:f[key_manage_query_size]L515:key[deviceid] not programed yet
18:02:17.469 [KM]Error:f[keymanage_dts_get_key_device]L105:oemkey key name is not exist
18:02:17.474 [KM]Error:f[_get_km_ops_by_name]L240:key oemkey not know device 4
18:02:17.480 [KM]Error:f[key_manage_query_exist]L554:There isn't dts cfg for key[oemkey]
18:02:17.485 [KM]Error:f[key_manage_query_size]L511:Fail in query key exist
18:02:17.489 InUsbBurn
18:02:17.845 wait for phy ready count is 0
18:02:18.234 noSof
18:02:18.237 sof timeout, reset usb phy tuning
18:02:18.393 Hit Enter or space or Ctrl+C key to stop autoboot -- : 1 0
18:02:18.499 card in
18:02:18.499 co-phase 0x2, tx-dly 0, clock 400000
18:02:18.499 co-phase 0x2, tx-dly 0, clock 400000
18:02:18.504 co-phase 0x2, tx-dly 0, clock 400000
18:02:18.651 co-phase 0x2, tx-dly 0, clock 400000
18:02:18.651 co-phase 0x2, tx-dly 0, clock 40000000
18:02:18.659 init_part() 282: PART_TYPE_DOS
18:02:18.659 [mmc_init] mmc init success
18:02:18.659 Device: SDIO Port B
18:02:18.664 Manufacturer ID: 2
18:02:18.664 OEM: 544d
18:02:18.664 Name: SA08G
18:02:18.664 Tran Speed: 50000000
18:02:18.670 Rd Block Len: 512
18:02:18.670 SD version 3.0
18:02:18.670 High Capacity: Yes
18:02:18.677 Capacity: (0x1d2400000 Bytes) 7.3 GiB
18:02:18.677 mmc clock: 40000000
18:02:18.678 Bus Width: 4-bit
18:02:18.680 reading cfgload
18:02:18.690 2226 bytes read in 6 ms (362.3 KiB/s)
18:02:18.690 ## Executing script at 01080000
18:02:18.696 Using device mmc, number 0, partition 1, CoreELEC on eMMC: no
18:02:18.700 reading resolution.ini
18:02:18.707 115 bytes read in 6 ms (18.6 KiB/s)
18:02:18.710 reading config.ini
18:02:18.718 5018 bytes read in 6 ms (816.4 KiB/s)
18:02:18.722 reading kernel.img
18:02:20.420 25028608 bytes read in 1693 ms (14.1 MiB/s)
18:02:20.421 reading dtb.img
18:02:20.435 79014 bytes read in 12 ms (6.3 MiB/s)
18:02:20.442 avb2: 0
18:02:20.442 ee_gate_off ...
18:02:20.442 avb2: 0
18:02:20.442 ## Booting Android Image at 0x01080000 ...
18:02:20.445 reloc_addr =d3de7980
18:02:20.566 copy done
18:02:20.566 No androidboot.dtbo_idx configured[store]Is good fdt check header, no need decrypt!
18:02:20.570 active_slot is normal
18:02:20.577 load dtb from 0x1000000 ......
18:02:20.577 Amlogic multi-dtb tool
18:02:20.577 Single dtb detected
18:02:20.582 find 1 dtbos
18:02:20.582 No androidboot.dtbo_idx configured
18:02:20.588 And no dtbos will be applied
18:02:20.588 Uncompressing Kernel Image ... OK
18:02:20.910 kernel loaded at 0x02000000, end = 0x046be808
18:02:20.915 Loading Ramdisk to 7f107000, end 7f7ff0fc ... OK
18:02:20.953 Loading Device Tree to 000000001ffe9000, end 000000001ffff55b ... OK
18:02:20.957 fdt_fixup_memory_banks, reg:0000000000000000
18:02:20.961
18:02:20.961 Starting kernel ...
18:02:20.961
18:02:20.964 uboot time: 5644682 us
18:02:23.471 [ 0.000000] 07400000 - 07500000, 1024 KB, ramoops@0x07400000
18:02:23.475 [ 0.000000] 00000000 - 00080000, 512 KB, linux,dmc_monitor
18:02:23.481 [ 0.000000] 04f00000 - 05000000, 1024 KB, linux,iotrace
18:02:23.486 [ 0.000000] 04e00000 - 04f00000, 1024 KB, linux,defendkey
18:02:23.492 [ 0.000000] 41000000 - 41080000, 512 KB, linux,bl40
18:02:23.497 [ 0.000000] d5800000 - f0800000, 442368 KB, linux,codec_mm_cma
18:02:23.503 [ 0.000000] d1800000 - d5800000, 65536 KB, linux,vdin0_cma
18:02:23.509 [ 0.000000] f0900000 - f0900000, 0 KB, linux,codec_mm_reserved
18:02:23.514 [ 0.000000] 05000000 - 05400000, 4096 KB, linux,secmon
18:02:23.520 [ 0.000000] ce400000 - d1800000, 53248 KB, linux,ion-dev
18:02:23.525 [ 0.000000] cc400000 - ce400000, 32768 KB, linux,vm0_cma
18:02:23.531 [ 0.000000] c6c00000 - cc400000, 90112 KB, heap-gfx
18:02:23.536 [ 0.000000] b5c00000 - c6c00000, 278528 KB, heap-fb
18:02:23.542 [ 0.000000] f0900000 - f0900000, 0 KB, linux,ppmgr
18:02:23.547 [ 2.148150] invalid fiq_phy_addr
18:02:23.547 [ 2.154856] call aml_debug_mte_init() ret=-22
18:02:23.553 [ 2.157656] DMC DEBUG MEMORY ENABLED: range:0-7ffff, device=ff07fe, debug=11d
18:02:23.564 [ 2.162010] range:00000000 - 0007ffff, device:ff07fe
18:02:23.564 [ 2.166943] DMC SEC CHECK PASS.
18:02:23.570 [ 2.166943] DMC_SEC_STATUS:0
18:02:23.575 [ 2.166943] DMC_VIO_ADDR0:0
18:02:23.575 [ 2.166943] DMC_VIO_ADDR1:0
18:02:23.581 [ 2.166943] DMC_VIO_ADDR2:5124f20
18:02:23.581 [ 2.166943] DMC_VIO_ADDR3:1030400
18:02:23.592 [ 2.198736] mbox_pl_parse_dt 14
18:02:23.600 [ 2.203447] cpu regulator not ready, retry!
18:02:23.600 [ 2.204638] can't get efuse_pattern_size, use default size0x400
18:02:23.606 [ 2.207951] efuse efuse: can't get reg resource
18:02:23.611 [ 2.212608] failed to find match efuse key
18:02:23.617 [ 2.217796] defendkey ff800228.defendkey: don't config secureboot_mask
18:02:23.685 [ 2.287433] meson-gx-mmc ffe05000.sd: 5 [0x0], TIMEOUT[0x2800]
18:02:23.690 [ 2.288600] meson-gx-mmc ffe05000.sd: 5 [0x0], TIMEOUT[0x2800]
18:02:23.695 [ 2.294490] meson-gx-mmc ffe05000.sd: 5 [0x0], TIMEOUT[0x2800]
18:02:23.701 [ 2.300202] meson-gx-mmc ffe05000.sd: 5 [0x0], TIMEOUT[0x2800]
18:02:23.708 [ 2.311622] add demod ops fail -19
18:02:23.708 [ 2.311660] dvb power gpio invalid
18:02:23.714 [ 2.314313] now in codec_mm_module_init
18:02:23.714 [ 2.316949] tee_protect_mem open context failed
18:02:23.719 [ 2.322298] create prealloc task00000000d449e620, for cpu 0
18:02:23.725 [ 2.326882] create prealloc task00000000f3e345f7, for cpu 1
18:02:23.730 [ 2.332406] create prealloc task000000005e313613, for cpu 2
18:02:23.736 [ 2.341657] error: vout_meas_ctrl_init_dft: get vdin_meas_clk err!
18:02:23.751 [ 2.354299] error: aml_vout_get_dt_info: can't get vsync irq
18:02:23.756 [ 2.356818] aml_media: unable to register osd driver, r=0xffffffed
18:02:23.762 [ 2.362585] amlogic_heap_secure_dma_buf_init: heap-secure not added in dts.
18:02:23.768 [ 2.371842] vdin0 get fclk_div5 err
18:02:23.773 [ 2.371900] vdin_drv_probe: vdin0 cannot get msr clk !!!
18:02:23.773 [ 2.376203] vpu: error: vpu_vmod_mem_pd_get: invalid vpu mod: 72
18:02:23.784 [ 2.382764] vdin1 get fclk_div5 err
18:02:23.784 [ 2.385726] vdin_drv_probe: vdin1 cannot get msr clk !!!
18:02:23.794 [ 2.397810] video_composer_module_init_1
18:02:23.794 [ 2.398330] video_composer don't find vpu_dma_mask
18:02:23.800 [ 2.401027] video_composer don't find vpu_dma_mask
18:02:23.821 [ 2.424387] no match support_4k for amlvideo2.0, disable as default
18:02:23.827 [ 2.425030] don't find codec_mm_alloc, use default parm.
18:02:23.83x [ 2.430615] no match support_4k for amlvideo2.1, disable as default
18:02:23.838 [ 2.436567] don't find codec_mm_alloc, use default parm.
18:02:23.843 [ 2.446259] vpu: error: vpu_vmod_mem_pd_get: invalid vpu mod: 72
18:02:49.548 [ 28.150503] INFO: rcu_preempt detected stalls on CPUs/tasks:
18:02:49.553 [ 28.150554] 0-...0: (8 ticks this GP) idle=843/1/0x4000000000000000 softirq=1306/1307 fqs=2625
18:03:52.569 [ 91.170503] INFO: rcu_preempt detected stalls on CPUs/tasks:
18:03:52.573 [ 91.170541] 0-...0: (8 ticks this GP) idle=843/1/0x4000000000000000 softirq=1306/1307 fqs=10502
18:04:55.588 [ 154.190504] INFO: rcu_preempt detected stalls on CPUs/tasks:
18:04:55.593 [ 154.190541] 0-...0: (8 ticks this GP) idle=843/1/0x4000000000000000 softirq=1306/1307 fqs=18379
18:05:58.618 [ 217.218503] INFO: rcu_preempt detected stalls on CPUs/tasks:
18:05:58.623 [ 217.218540] 0-...0: (8 ticks this GP) idle=843/1/0x4000000000000000 softirq=1306/1307 fqs=26258
18:07:01.637 [ 280.238503] INFO: rcu_preempt detected stalls on CPUs/tasks:
18:07:01.642 [ 280.238541] 0-...0: (8 ticks this GP) idle=843/1/0x4000000000000000 softirq=1306/1307 fqs=34135
18:08:04.668 [ 343.266502] INFO: rcu_preempt detected stalls on CPUs/tasks:
18:08:04.672 [ 343.266540] 0-...0: (8 ticks this GP) idle=843/1/0x4000000000000000 softirq=1306/1307 fqs=42014
18:09:07.686 [ 406.286500] INFO: rcu_preempt detected stalls on CPUs/tasks:
18:09:07.691 [ 406.286538] 0-...0: (8 ticks this GP) idle=843/1/0x4000000000000000 softirq=1306/1307 fqs=49816
18:10:10.715 [ 469.314499] INFO: rcu_preempt detected stalls on CPUs/tasks:
18:10:10.719 [ 469.314537] 0-...0: (8 ticks this GP) idle=843/1/0x4000000000000000 softirq=1306/1307 fqs=57601
18:11:13.742 [ 532.342499] INFO: rcu_preempt detected stalls on CPUs/tasks:
18:11:13.748 [ 532.342537] 0-...0: (8 ticks this GP) idle=843/1/0x4000000000000000 softirq=1306/1307 fqs=65391
18:12:16.771 [ 595.370499] INFO: rcu_preempt detected stalls on CPUs/tasks:
18:12:16.776 [ 595.370536] 0-...0: (8 ticks this GP) idle=843/1/0x4000000000000000 softirq=1306/1307 fqs=73179
nothing changed, still there is no full kernel log. it should spit a lot of text
About | FAQ | Terms of Service | Privacy Policy | Legal Notice
