Device freezes while loading kernel. With this sm1_s905x3_4g.dts everything works except the dvb part.
add demod ops fail -19
18:02:23.708 [ 2.311660] dvb power gpio invalid
Most likely gpio pin conflict, if other dts parts are the same as coreelec dtb
Without full kernel log i cant tell what is wrong. Ar yiu using latest nightly ?
Gpio log only means that the power pin is not configured which is true and does not cause box to freeze
22.0-Piers_alpha1
hmm, yeah … that proves nothing
Maybe lets do this:
download current nightly version from here CoreELEC nightly builds and use fresh sd/usb drive (do not reuese storage partition from other installations, let the CE create it for you from scratch).
use sm1_s905x3_4g.dtb as your dtb.img and see if that works. If it Does work then use device tree I sent you and see if it boots succesfully.
Dmesg eror
[ 2.080538] dvb power gpio invalid
[ 2.080618] aml_dvb_extern_init: OK, version: V1.28
[ 19.969539] probe amlogic dvb driver [V2.02]
[ 19.969741] aml_dvb_get_adapter need register adapter first.
[ 19.969745] DVB: registering new adapter (amlogic-dvb)
[ 20.002145] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 20.002181] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 20.002187] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 20.002191] DVB: reset ASYNC FIFOs
[ 20.002658] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 20.002692] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 20.002696] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 20.002699] DVB: reset ASYNC FIFOs
[ 20.002707] DVB:dmx_reset_dmx_hw_ex_unlock into
[ 20.002772] DVB: demux0 smallsec buf disable
[ 20.002782] DVB: demux0 timeout disable
[ 20.002787] DVB: demux0 timeout enable:timeout(9000),ch(0xfffffff8),match(1)
[ 20.002846] DVB: demux0 smallsec buf disable
[ 20.002854] DVB: demux0 timeout disable
[ 20.002856] DVB: demux0 timeout enable:timeout(9000),ch(0xfffffff8),match(1)
[ 20.002919] DVB: demux1 smallsec buf disable
[ 20.002923] DVB: demux1 timeout disable
[ 20.002926] DVB: demux1 timeout enable:timeout(9000),ch(0xfffffff8),match(1)
[ 20.002976] DVB: demux1 smallsec buf disable
[ 20.002980] DVB: demux1 timeout disable
[ 20.002982] DVB: demux1 timeout enable:timeout(9000),ch(0xfffffff8),match(1)
[ 20.353315] i2c i2c-2: dvb_meson: i2c wr failed=-6 len=3
[ 20.353366] i2c i2c-2: dvb_meson: i2c rd failed=-6 len=4
[ 20.353414] i2c i2c-2: dvb_meson: i2c wr failed=-6 len=3
[ 20.353462] i2c i2c-2: dvb_meson: i2c rd failed=-6 len=4
[ 20.353467] i2c i2c-2: dvb_meson: attach failed reading id
[ 20.353582] i2c i2c-2: dvb_meson: i2c wr failed=-6 len=3
[ 20.353630] i2c i2c-2: dvb_meson: i2c rd failed=-6 len=4
[ 20.353678] i2c i2c-2: dvb_meson: i2c wr failed=-6 len=3
[ 20.353724] i2c i2c-2: dvb_meson: i2c rd failed=-6 len=4
[ 20.353729] i2c i2c-2: dvb_meson: attach failed reading id
[ 20.353816] i2c i2c-2: dvb_meson: i2c wr failed=-6 len=3
[ 20.353865] i2c i2c-2: dvb_meson: i2c rd failed=-6 len=4
[ 20.353914] i2c i2c-2: dvb_meson: i2c wr failed=-6 len=3
[ 20.353961] i2c i2c-2: dvb_meson: i2c rd failed=-6 len=4
[ 20.353967] i2c i2c-2: dvb_meson: attach failed reading id
dmesg.txt (112.7 KB)
i2c
i2c-detec
i2c-2 i2c Meson I2C adapter I2C adapter
i2c-3 i2c Meson I2C adapter I2C adapter
i2c-3
i2c-3
0 1 2 3 4 5 6 7 8 9 a b c d e f
00: -- -- -- -- -- -- -- --
10: -- -- -- -- 14 -- -- -- -- -- -- -- -- -- -- --
20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
30: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
50: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
sm1_s905x3_avl6762_serial_i2c3.dtb (77.2 KB)
[ 29.012840] Error : -2 can't load the video/video_ucode.bin.[ 29.012843] get data from fsys fail.
[ 29.012846] invalid file type.
[ 29.051807] Amlogic A/V streaming port init
[ 29.069087] probe amlogic dvb driver [V2.02]
[ 29.069186] ts0: serial
[ 29.069347] ts0_control: 0x800
[ 29.069354] ts0_invert: 0x0
[ 29.069357] ts1: parallel
[ 29.069364] ts1_control: 0x0
[ 29.069368] read error:ts2_control: 0x0
[ 29.069372] aml_dvb_get_adapter need register adapter first.[ 29.069376] DVB: registering new adapter (amlogic-dvb)
[ 29.069980] get irq num demux0_irq:50
[ 29.086108] get irq num demux1_irq:68
[ 29.097680] get irq num demux2_irq:69
[ 29.108904] get async0_irq:70
[ 29.109138] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 29.109144] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 29.109147] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 29.109149] DVB: reset ASYNC FIFOs
[ 29.109163] get async1_irq:71
[ 29.109359] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 29.109363] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 29.109366] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 29.109368] DVB: reset ASYNC FIFOs
[ 29.109373] DVB:dmx_reset_dmx_hw_ex_unlock into
[ 29.109414] DVB: demux0 smallsec buf disable
[ 29.109417] DVB: demux0 timeout disable
[ 29.109420] DVB: demux0 timeout enable:timeout(9000),ch(0xfffffff8),match(1)
[ 29.109561] DVB: demux0 smallsec buf disable
[ 29.109567] DVB: demux0 timeout disable
[ 29.109569] DVB: demux0 timeout enable:timeout(9000),ch(0xfffffff8),match(1)
[ 29.109616] DVB: demux1 smallsec buf disable
[ 29.109619] DVB: demux1 timeout disable
[ 29.109621] DVB: demux1 timeout enable:timeout(9000),ch(0xfffffff8),match(1)
[ 29.109663] DVB: demux1 smallsec buf disable
[ 29.109665] DVB: demux1 timeout disable
[ 29.109668] DVB: demux1 timeout enable:timeout(9000),ch(0xfffffff8),match(1)
[ 29.230317] Console: switching to colour dummy device 80x25
[ 29.372319] tuner_attach_register_cb: register type 22, current num 1, modnum 1
[ 29.372368] aml_attach_detach_dtvdemod: cb id 11
[ 29.372421] [demod_attach_register_cb]:register type 11, current num 1, modnum 1
[ 29.889532] i2c i2c-3: dvb_meson: i2c wr failed=-110 len=3
CoreELEC:~ # i2cdetect -y 2
0 1 2 3 4 5 6 7 8 9 a b c d e f
00: -- -- -- -- -- -- -- --
10: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
30: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
50: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
70: -- -- -- -- -- -- -- --
CoreELEC:~ # i2cdetect -y 3
0 1 2 3 4 5 6 7 8 9 a b c d e f
00: -- -- -- -- -- -- -- --
10: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
30: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
50: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
70: -- -- -- -- -- -- -- --
Why You upload only part of the dmesg ? this does not make any sense. previously you posted output of i2cdetect on bus 3 which showed the demod responding, now you posted output where it is not responding. Does it magically disapeared from your device ?
I’m sorry, using SSH on the phone is a bit difficult. I noticed it after the second DTB and ran i2scan 2 or 3 times. But nothing seems connected. I’m sending the full statement.
dmesg2.txt (72.7 KB)
dmesg_debug.txt (71.9 KB)
If you use my first dtb then i2cdetect for bus 3 reports demod on addres 0x14 and if you use my second dtb then i2cdetect for bus 3 does not report anything ? Is that correct ?
CoreELEC:~ # dmesg > /storage/downloads/dmesg_debug.txt
CoreELEC:~ # i2cdetect -y 2
0 1 2 3 4 5 6 7 8 9 a b c d e f
00: -- -- -- -- -- -- -- --
10: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
30: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
50: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
70: -- -- -- -- -- -- -- --
CoreELEC:~ # i2cdetect -y 3
0 1 2 3 4 5 6 7 8 9 a b c d e f
00: -- 09 -- -- -- -- -- --
10: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
30: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
50: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
70: -- -- -- -- -- -- -- --
CoreELEC:~ # i2cdetect -y 4
Error: Could not open file `/dev/i2c-4' or `/dev/i2c/4': No such file or directory
CoreELEC:~ # dmesg | grep i2c
[ 1.840175] i2c /dev entries driver
[ 31.717493] i2c i2c-3: dvb_meson: i2c wr failed=-110 len=3
[ 32.225498] i2c i2c-3: dvb_meson: i2c rd failed=-110 len=4
[ 32.737531] i2c i2c-3: dvb_meson: i2c wr failed=-110 len=3
[ 33.249496] i2c i2c-3: dvb_meson: i2c rd failed=-110 len=4
[ 33.249511] i2c i2c-3: dvb_meson: attach failed reading id
[ 33.761476] i2c i2c-3: dvb_meson: i2c wr failed=-110 len=3
[ 34.273494] i2c i2c-3: dvb_meson: i2c rd failed=-110 len=4
[ 34.785494] i2c i2c-3: dvb_meson: i2c wr failed=-110 len=3
[ 35.297476] i2c i2c-3: dvb_meson: i2c rd failed=-110 len=4
[ 35.297498] i2c i2c-3: dvb_meson: attach failed reading id
CoreELEC:~ #
I scanned again and this is the result.
CoreELEC:~ # cat /sys/class/i2c-dev/i2c-*/name
Meson I2C adapter
Meson I2C adapter
CoreELEC:~ # ls /dev/i2c*
/dev/i2c-2 /dev/i2c-3
now 0×09, very interesting
Now adress 0x9 ?? Seems like broken hardware …
Try this, reduced i2c speed to 100kHz if that does not help then I don’t know what is going on, maybe this is not real avl6762 chip.
sm1_s905x3_avl6762_serial_i2c3_100khz.dtb (77.2 KB)
CoreELEC:~ # i2cdetect -r -y 3
0 1 2 3 4 5 6 7 8 9 a b c d e f
00: -- -- -- -- -- -- -- --
10: -- -- -- -- 14 -- -- -- -- -- -- -- -- -- -- --
20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
30: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
50: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
70: -- -- -- -- -- -- -- --
CoreELEC:~ #
I tried sm1_s905x3_avl6762_serial.dtb again, and it gave me the address i2c-3 0x14. I think the tuner’s power pin dtb is the correct specification; the tuner isn’t being powered. I measured the voltage input of the avl6762 with a measuring device. I think the device is either finding it and then not finding it, or it’s giving a different address because it’s not receiving enough power.
Big Thank you for your effort
Avl6762 is a demodulator not a tuner. There is no gpio for demod power in android dtb. That does not mean there is no power pin for the demod
I know the difference between a demodulator and a tuner. Some types have translation errors. Actually, I think the i2c3 0X14 I found in the i2c file is definitely correct. The i2c address in the sm1 dts file below for kernel 5.4 is the same. I assume you added this in the dtbs you provided. The only problem is that the i2c scan sometimes doesn’t detect it or gives a different number. Something’s wrong.
dvb-extern {
compatible = "amlogic, dvb-extern";
dev_name = "dvb-extern";
status = "okay";
fe_num = <1>;
fe0_demod = "Avl6762";
fe0_i2c_adap_id = <&i2c3>;
fe0_demod_i2c_addr = <0x14>;
fe0_ts = <0>;
fe0_reset_value = <0>;
fe0_reset_gpio = <&gpio GPIOZ_10 GPIO_ACTIVE_HIGH>;
fe0_ant_poweron_value = <0>;
fe0_ant_power_gpio = <&gpio GPIOH_5 GPIO_ACTIVE_HIGH>;
};
dvb-demux {
compatible = "amlogic, dvb-demux";
dev_name = "dvb-demux";
status = "okay";
dmx = <&demux>;
key_endia = <1>;
add_s2p2 = <1>;
add_ts_in = <1>;
add_asyncfifo = <1>;
ts0 = "serial";
ts0_control = <0x800>;
ts0_invert = <0>;
pinctrl-names = "s_ts0";
pinctrl-0 = <&dvb_s_ts0_pins>;
clocks = <&clkc CLKID_DEMUX
&clkc CLKID_AHB_ARB0
&clkc CLKID_PARSER>;
clock-names = "demux", "ahbarb0", "parser_top";
};
dmesg_avl.txt (79.0 KB)

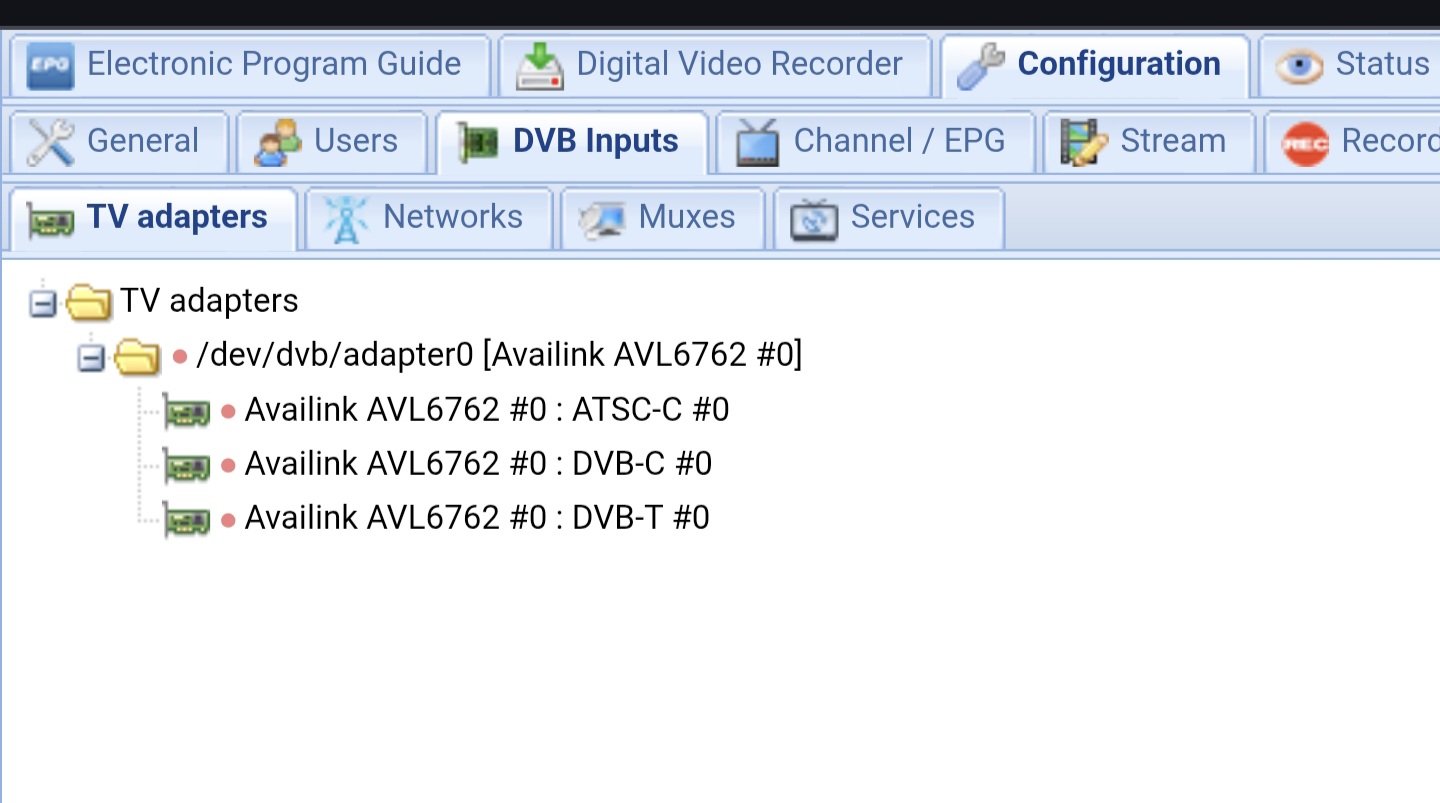

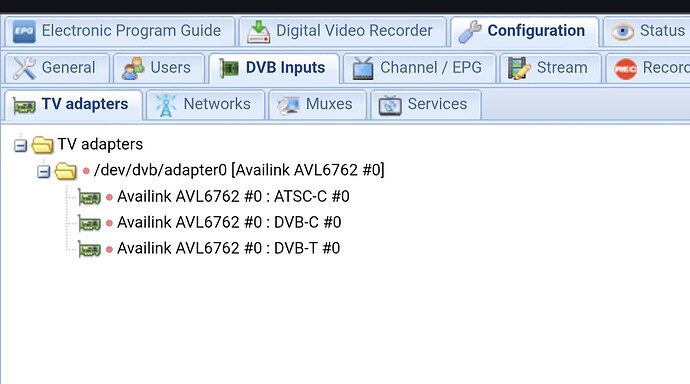

After much experimentation, the tuner was detected with the nightly build. But I searched with TVheadend, and then it disappeared from the list. The i2c device appears and disappears, or appears at a different address. I think the DTB you prepared is correct.
In android dtb there is reset pin defined. If the designer of your box was stupid enough to not connect a pullup resistor to it, then the reset pin could be floating and randomly resetting the chip. You could try to force this reset pin value to 1 with gpioset tool.
Tvheadent no found any channels
Loglevel debug: enabled
2025-10-27 23:54:07.980 mpegts: 546MHz in Kablo - tuning on Availink AVL6762 #0 : DVB-C #0
2025-10-27 23:54:07.980 subscription: 00F0: "epggrab" unsubscribing
2025-10-27 23:54:07.980 subscription: 00F3: "scan" subscribing to mux "546MHz", weight: 6, adapter: "Availink AVL6762 #0 : DVB-C #0", network: "Kablo", service: "Raw PID Subscription"
2025-10-27 23:54:12.980 mpegts: 546MHz in Kablo - scan no data, failed
2025-10-27 23:54:12.980 subscription: 00F3: "scan" unsubscribing
2025-10-27 23:54:12.980 mpegts: 666MHz in Kablo - tuning on Availink AVL6762 #0 : DVB-C #0
2025-10-27 23:54:12.980 subscription: 00F6: "scan" subscribing to mux "666MHz", weight: 6, adapter: "Availink AVL6762 #0 : DVB-C #0", network: "Kablo", service: "Raw PID Subscription"
2025-10-27 23:54:17.980 mpegts: 666MHz in Kablo - scan no data, failed
2025-10-27 23:54:17.980 subscription: 00F6: "scan" unsubscribing
2025-10-27 23:54:17.980 mpegts: 490MHz in Kablo - tuning on Availink AVL6762 #0 : DVB-C #0
2025-10-27 23:54:17.980 subscription: 00F9: "scan" subscribing to mux "490MHz", weight: 6, adapter: "Availink AVL6762 #0 : DVB-C #0", network: "Kablo", service: "Raw PID Subscription"
