Yes find any dvbs dvb-c channels
dmesg_avl6862.txt (70.5 KB)

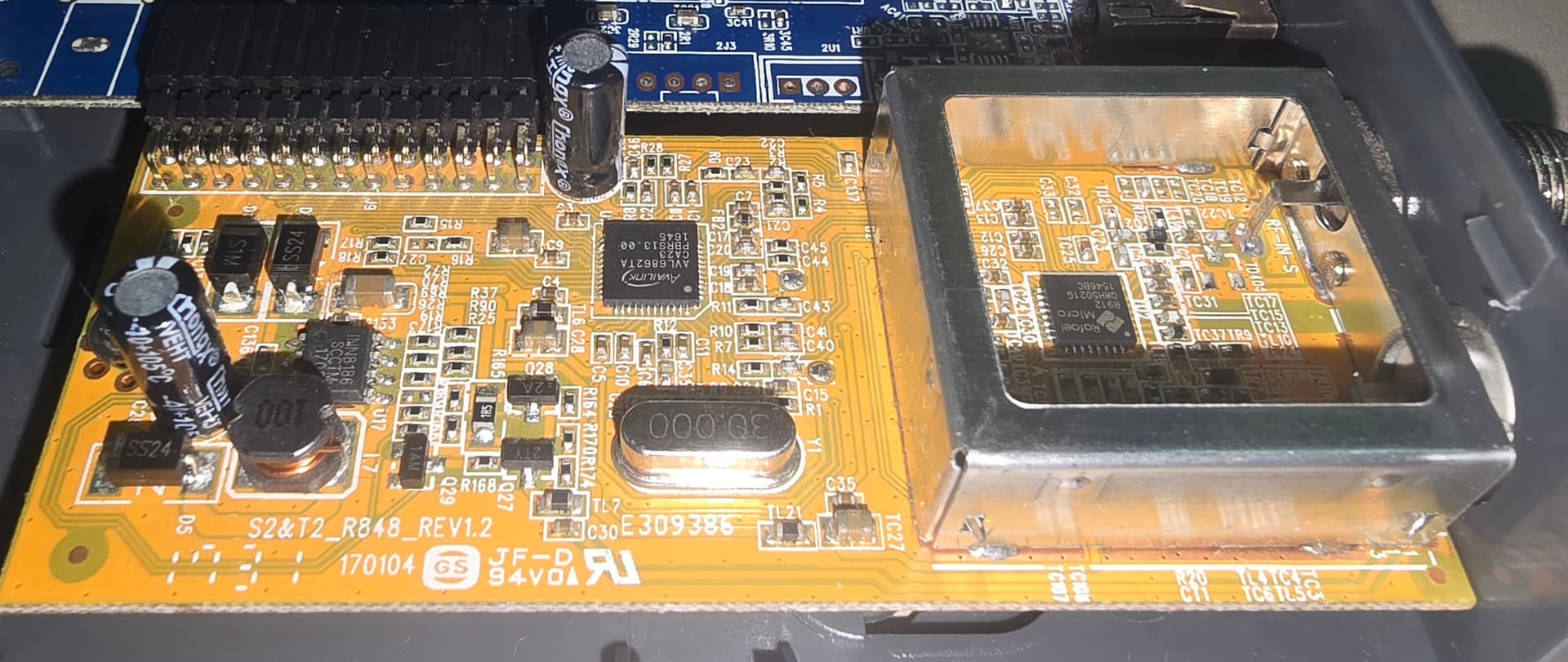

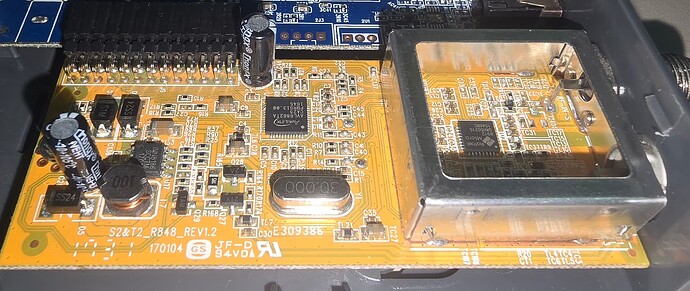

R848 driver

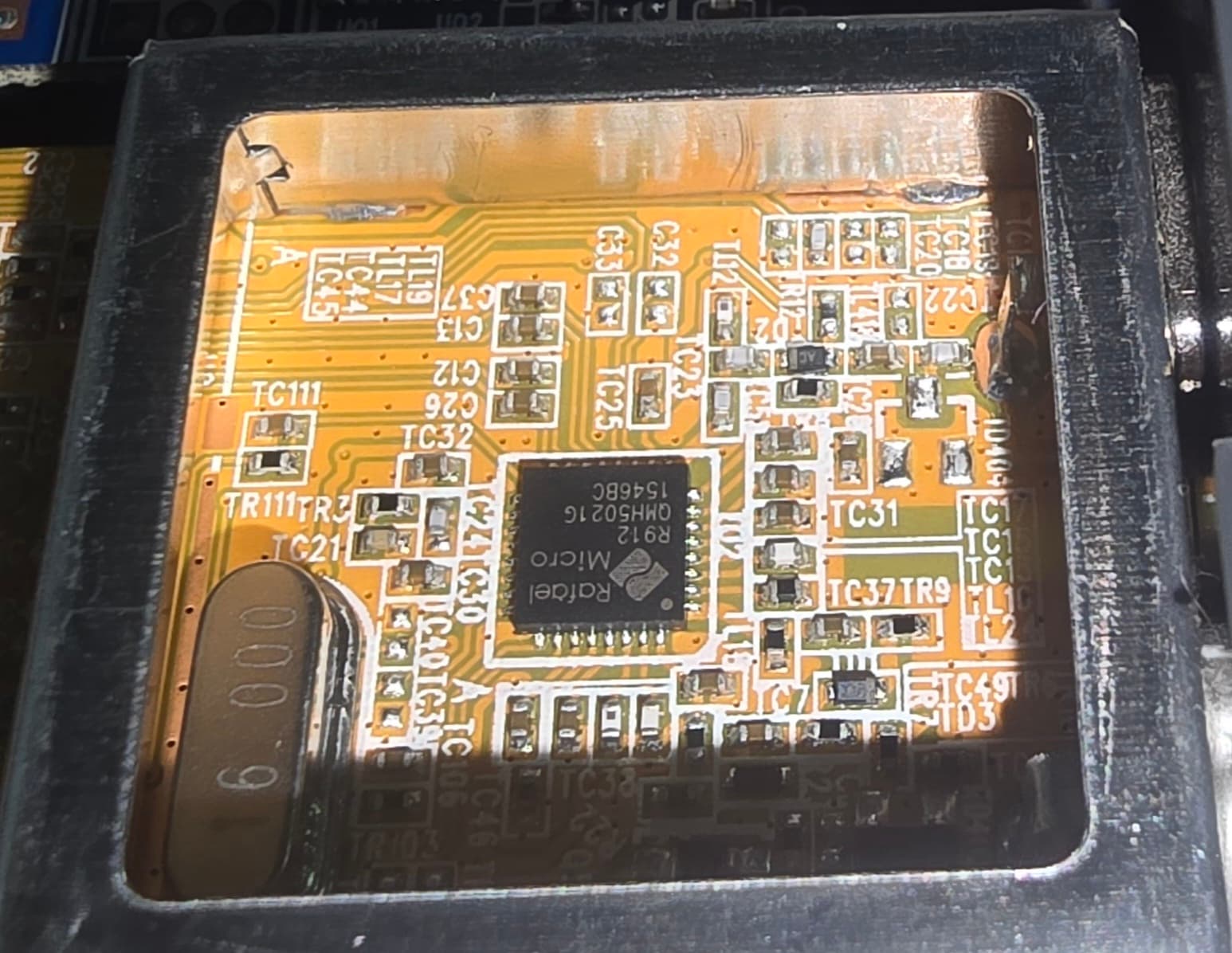

My old k1 pro tuner photo. Works well with Coreelec kernel 3.14
May be help
#include "gxl_p230_2g.dts"
/{
le-dt-id = "gxl_p230_k1_pro";
dvb {
compatible = "amlogic,dvb";
dev_name = "dvb";
ts0 = "parallel";
ts0_control = <0x0>;
ts0_invert = <0x0>;
fec_reset_gpio-gpios = <&gpio GPIODV_13 GPIO_ACTIVE_HIGH>;
power_ctrl_gpio-gpios = <&gpio GPIODV_11 GPIO_ACTIVE_LOW>;
pinctrl-names = "p_ts0", "s_ts0", "s_ts1";
pinctrl-0 = <&dvb_p_ts0_pins>;
pinctrl-1 = <&dvb_s_ts0_pins>;
pinctrl-2 = <&dvb_s_ts1_pins>;
resets = <&clock GCLK_IDX_DEMUX &clock GCLK_IDX_ASYNC_FIFO &clock GCLK_IDX_AHB_ARB0 &clock GCLK_IDX_HIU_PARSER_TOP>;
reset-names = "demux", "asyncfifo", "ahbarb0", "uparsertop";
};
dvbfe {
compatible = "amlogic,dvbfe";
//dev_name = "dvbfe";
status = "okay";
dtv_demod0 = "Avl6211";
dtv_demod0_i2c_adap_id = <2>;
dtv_demod0_i2c_addr = <0x60>;
dtv_demod0_reset_value = <0>;
dtv_demod0_reset_gpio-gpios = <&gpio GPIODV_13 GPIO_ACTIVE_LOW>;
dtv_demod0_power_gpio-gpios = <&gpio GPIODV_14 GPIO_ACTIVE_LOW>;
fe0_dtv_demod = <0>;
fe0_ts = <0>;
fe0_dev = <0>;
};
};
&pinmux {
dvb_p_ts0_pins:dvb_p_ts0_pins {
amlogic,setmask = <0x2 0x1f>;
amlogic,clrmask = <0x3 0x787 0x2 0xff000400>;
amlogic,pins = "GPIODV_0", "GPIODV_1", "GPIODV_2", "GPIODV_3", "GPIODV_4", "GPIODV_5", "GPIODV_6", "GPIODV_7", "GPIODV_8", "GPIODV_9", "GPIODV_10";
};
dvb_s_ts0_pins:dvb_s_ts0_pins {
amlogic,setmask = <0x2 0x17>;
amlogic,clrmask = <0x3 0x584 0x2 0x7000000 0x1 0x100>;
amlogic,pins = "GPIODV_0", "GPIODV_8", "GPIODV_9", "GPIODV_10";
};
dvb_s_ts1_pins:dvb_s_ts1_pins {
amlogic,setmask = <0x3 0x17>;
amlogic,clrmask = <0x2 0xf0000 0x1 0x7>;
amlogic,pins = "GPIODV_0", "GPIODV_8", "GPIODV_9", "GPIODV_10";
};
dtv_params_pin:dtv_params_pin {
amlogic,clrmask = <0x1 0x38000000 0x3 0x80>;
amlogic,pins = "GPIODV_13", "GPIODV_14", "GPIODV_15";
};
};
&i2c_a {
status = "okay";
};
&i2c_b {
status = "okay";
};
&i2c_c {
status = "okay";
};
&i2c_d {
status = "okay";
};
KI PRO has r912, which is supported in CE ā¦
I found r848 driver here: GitHub - tbsdtv/linux_media: TBS linux open source drivers, I have no idea if it will work, but worth trying. I added it to AVL6862 addon, install it:
AVL6862-22.0.5.2.zip (447.0 KB)
and use this dtb:
sm1_s905x3_mecool_k5.dtb (76.8 KB)
Youāll be lucky if it works
Dvb-c working perfectly. Here is new dmesg. No dvb s (scan no data)
dmesg_r848.txt (104.4 KB)
dmesg_error25.txt (3.6 KB)
CoreELEC:~ # tail -f /storage/.kodi/userdata/addon_data/service.tvheadend*/service.log
2025-10-30 00:59:09.483 [WARNING] linuxdvb: Availink avl6862 #0 : DVB-S #0 -
retune nodata
2025-10-30 00:59:16.912 [WARNING] linuxdvb: Availink avl6862 #0 : DVB-S #0 -
poll TIMEOUT
2025-10-30 00:59:17.534 [WARNING] linuxdvb: Availink avl6862 #0 : DVB-S #0 -
retune nodata
2025-10-30 00:59:18.431 [ INFO] mpegts: 11007.1V in Sat - scan no data, failed
2025-10-30 00:59:18.431 [ INFO] subscription: 00C7: "scan" unsubscribing
2025-10-30 00:59:18.433 [ INFO] mpegts: 11012V in Sat - tuning on Availink
avl6862 #0 : DVB-S #0
2025-10-30 00:59:18.784 [ INFO] epggrab: 11012V in Sat - registering mux for OTA EPG
2025-10-30 00:59:18.797 [ INFO] subscription: 00C9: "scan" subscribing to mux "11012V", weight: 6, adapter: "Availink avl6862 #0 : DVB-S #0", network: "Sat", service: "Raw PID Subscription"
2025-10-30 00:59:19.564 [WARNING] linuxdvb: Availink avl6862 #0 : DVB-S #0 -
poll TIMEOUT
2025-10-30 00:59:19.798 [WARNING] linuxdvb: Availink avl6862 #0 : DVB-S #0 -
retune nodata
2025-10-30 00:59:27.224 [WARNING] linuxdvb: Availink avl6862 #0 : DVB-S #0 -
poll TIMEOUT
2025-10-30 00:59:27.849 [WARNING] linuxdvb: Availink avl6862 #0 : DVB-S #0 -
retune nodata
2025-10-30 00:59:28.739 [ INFO] mpegts: 11012V in Sat - scan no data, failed
2025-10-30 00:59:28.739 [ INFO] subscription: 00C9: "scan" unsubscribing
2025-10-30 00:59:28.741 [ INFO] mpegts: 11016.1V in Sat - tuning on Availink avl6862 #0 : DVB-S #0
2025-10-30 00:59:29.092 [ INFO] epggrab: 11016.1V in Sat - registering mux
for OTA EPG
2025-10-30 00:59:29.102 [ INFO] subscription: 00CB: "scan" subscribing to mux "11016.1V", weight: 6, adapter: "Availink avl6862 #0 : DVB-S #0", network: "Sat", service: "Raw PID Subscription"
2025-10-30 00:59:29.880 [WARNING] linuxdvb: Availink avl6862 #0 : DVB-S #0 -
poll TIMEOUT
2025-10-30 00:59:30.103 [WARNING] linuxdvb: Availink avl6862 #0 : DVB-S #0 -
retune nodata
2025-10-30 00:59:37.540 [WARNING] linuxdvb: Availink avl6862 #0 : DVB-S #0 -
poll TIMEOUT
2025-10-30 00:59:38.154 [WARNING] linuxdvb: Availink avl6862 #0 : DVB-S #0 -
retune nodata
2025-10-30 00:59:39.048 [ INFO] mpegts: 11016.1V in Sat - scan no data, failed
2025-10-30 00:59:39.048 [ INFO] subscription: 00CB: "scan" unsubscribing
2025-10-30 00:59:39.049 [ INFO] mpegts: 11026.1V in Sat - tuning on Availink avl6862 #0 : DVB-S #0
2025-10-30 00:59:39.400 [ INFO] epggrab: 11026.1V in Sat - registering mux
for OTA EPG
2025-10-30 00:59:39.418 [ INFO] subscription: 00CD: "scan" subscribing to mux "11026.1V", weight: 6, adapter: "Availink avl6862 #0 : DVB-S #0", network: "Sat", service: "Raw PID Subscription"
2025-10-30 00:59:40.180 [WARNING] linuxdvb: Availink avl6862 #0 : DVB-S #0 -
poll TIMEOUT
2025-10-30 00:59:40.419 [WARNING] linuxdvb: Availink avl6862 #0 : DVB-S #0 -
retune nodata
2025-10-30 00:59:47.840 [WARNING] linuxdvb: Availink avl6862 #0 : DVB-S #0 -
poll TIMEOUT
2025-10-30 00:59:48.470 [WARNING] linuxdvb: Availink avl6862 #0 : DVB-S #0 -
retune nodata
2025-10-30 00:59:49.356 [ INFO] mpegts: 11026.1V in Sat - scan no data, failed
2025-10-30 00:59:49.356 [ INFO] subscription: 00CD: "scan" unsubscribing
2025-10-30 00:59:49.357 [ INFO] mpegts: 11054V in Sat - tuning on Availink
avl6862 #0 : DVB-S #0
2025-10-30 00:59:49.708 [ INFO] epggrab: 11054V in Sat - registering mux for OTA EPG
2025-10-30 00:59:49.717 [ INFO] subscription: 00CF: "scan" subscribing to mux "11054V", weight: 6, adapter: "Availink avl6862 #0 : DVB-S #0", network: "Sat", service: "Raw PID Subscription"
2025-10-30 00:59:50.492 [WARNING] linuxdvb: Availink avl6862 #0 : DVB-S #0 -
poll TIMEOUT
2025-10-30 00:59:50.718 [WARNING] linuxdvb: Availink avl6862 #0 : DVB-S #0 -
retune nodata
nice
[ 50.705030] i2c i2c-3: r848_set_params() delivery_system=6 frequency=1214300 symbol_rate=22000000 bandwidth_hz=29700000
[ 50.729341] Tuner Locked.
this means that the tuner tuned successfully to DVB-S2 channel (delivery_system=6), so the tuner driver seems ok.
Now the question is, does the demod is able to receive signal. So You need to do a manual scan like this:
systemctl stop service.tvheadend43
dvbv5-scan -l <LNBf_type> <scan conf file>
run dvbv5-scan -l help for possible LNBf_type values. I am not familiar with DVB-S since I do not have any DVB-S hardware. But paste here the output of scan command.

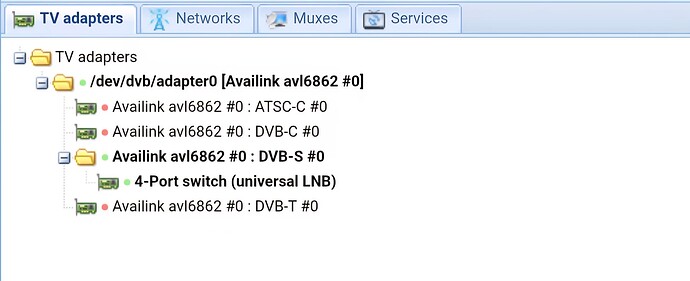

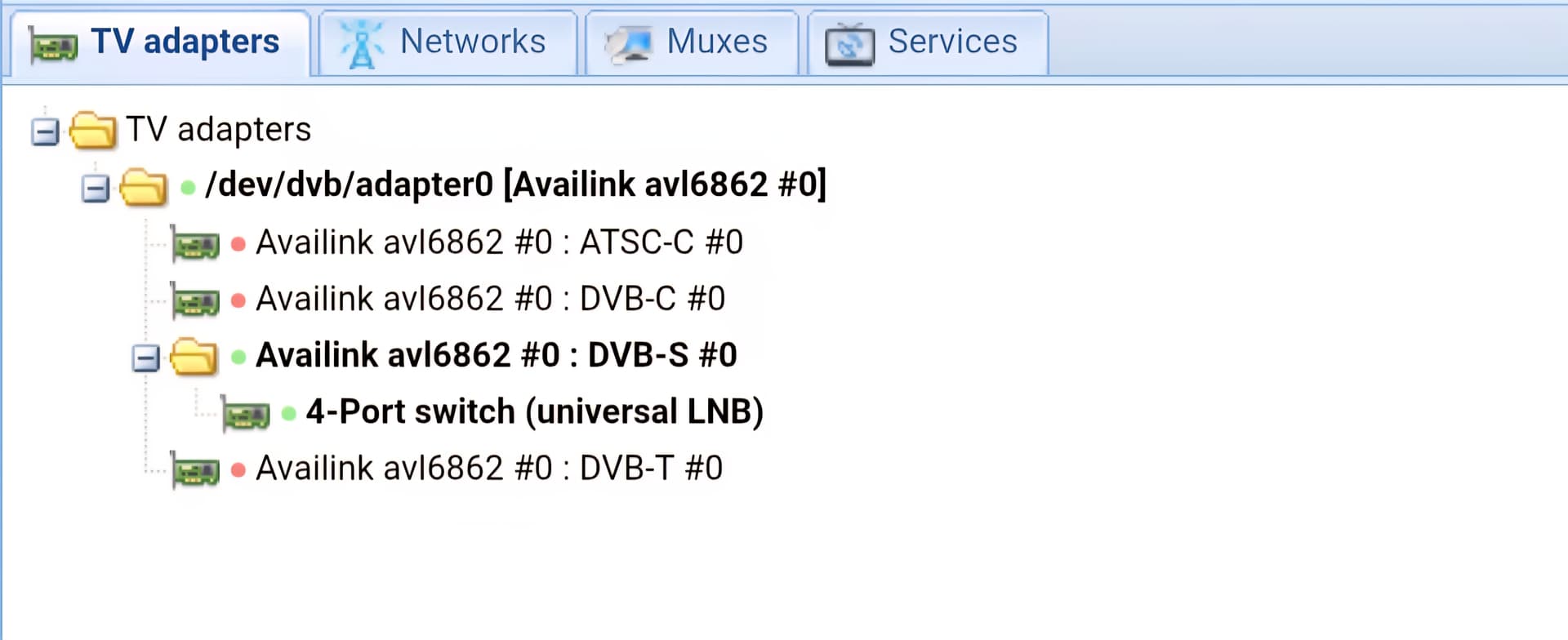

You noticed in his last attempt the demod identified as 6862 and identified before as 6762?
May be its the problem
Iām not familiar with DVBScan. How do I add these search parameters to dvbv5 diseqc port 2 (AB).

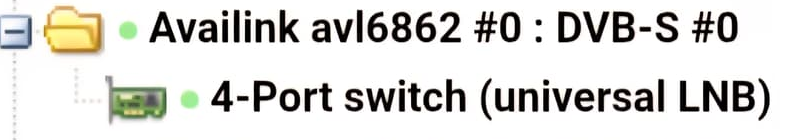

In the dmesg demod identified as AVL6862 in both cases. The name in tvheadend is different due to configuration change to support DVB-S. So this is OK.
From this:
I assum that the
-l option should be UNIVERSAL, @Mike is that correct ?
so try this:
dvbv5-scan -l UNIVERSAL channels.conf
for channels.conf content look into .kodi/addons/service.tvheadend43/dvb-scan/dvb-s/ folder. Files in this folder contains definitions of channels to scan. So just pick one definition of CHANNEL and put it into channels.conf. Ofcource values for each configuration variable should be set correctly according to your needs.
I see this in your tvheadend log
11026.1V so frequency is 11026.1 and polarisation vertical. I ses one file with this frequency and its definition is:
[CHANNEL]
DELIVERY_SYSTEM = DVBS2
FREQUENCY = 11016100
POLARIZATION = VERTICAL
SYMBOL_RATE = 7500000
INNER_FEC = 3/4
MODULATION = PSK/8
INVERSION = AUTO
Are those settings corrrect for your case ? The same settings are accessible in tvheadend mux configuration window.
The mecool K5 Coreelec TVheadend found all DVB-C channels. It streamed VLC with TVheadend. Thereās no problem with the DVB-C section. Iām receiving a DVB-C signal with the switchboard distributor. TVheadend returns a scan no data error for DVB-S/S2 transponders. The adapter appears correct in TVheadend, and Iām searching for active TPs, but the results remain the same. The satellite signal isnāt coming directly. Since it needs to be selected via the DISEQ signal, if the DISEQ signal isnāt being sent correctly in the software, the switchboard may be reporting no signal because Port AB isnāt opening. Or, the R848 tuner may be misreading the software DVB-S I2C connection. Iāll do more testing.
In dmesg output you can find this log:
Tuner Locked.
Iām not sure what it means but I assume it means that the tuner is able to receive correct DVB-S signal.
And it is easy to test my theory, just disconnect the cable and repeat scan, if You get Tuner not Locked! in the dmesg then we know that the signal is correctly received by the tuner when it reports Tuner Locked.
I will try and try dvbv5-scan with dtv-scan-tables/dvb-s/Turksat-42.0E at tvheadend Ā· tvheadend/dtv-scan-tables Ā· GitHub
It is a bit difficult to take and read uath-ssh logs with a mobile phone.
The DVB section of the Mecool K5 is now working. I manually added a DVB-S2 TP whose signal I knew, and it detected all TPs with a nit scan. TVheadend sent and broadcast the 4K TV channel via Ethernet to TVHClient without any problems. In short, DVB-S/S2 works. Of course, DVB-C also works perfectly.
Device Availink avl6862 (/dev/dvb/adapter0/frontend0) capabilities:
CAN_2G_MODULATION
CAN_FEC_1_2
CAN_FEC_2_3
CAN_FEC_3_4
CAN_FEC_4_5
CAN_FEC_5_6
CAN_FEC_6_7
CAN_FEC_7_8
CAN_FEC_AUTO
CAN_GUARD_INTERVAL_AUTO
CAN_HIERARCHY_AUTO
CAN_INVERSION_AUTO
CAN_MULTISTREAM
CAN_MUTE_TS
CAN_QAM_16
CAN_QAM_32
CAN_QAM_64
CAN_QAM_128
CAN_QAM_256
CAN_QAM_AUTO
CAN_QPSK
CAN_TRANSMISSION_MODE_AUTO
DVB API Version 5.11, Current v5 delivery system: DVBC/ANNEX_A
Supported delivery systems:
DVBT
DVBT2
[DVBC/ANNEX_A]
DVBC/ANNEX_B
DVBS
DVBS2
Frequency range for the current standard:
From: 175 MHz
To: 2.15 GHz
Symbol rate ranges for the current standard:
From: 1.00 MBauds
To: 45.0 MBauds
[ 2.133295] dvb power gpio invalid
[ 2.133427] aml_dvb_extern_init: OK, version: V1.28
[ 43.686584] probe amlogic dvb driver [V2.02]
[ 43.686773] aml_dvb_get_adapter need register adapter first.
[ 43.686777] DVB: registering new adapter (amlogic-dvb)
[ 43.699840] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 43.699847] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 43.699850] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 43.699852] DVB: reset ASYNC FIFOs
[ 43.700035] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 43.700039] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 43.700042] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 43.700044] DVB: reset ASYNC FIFOs
[ 43.700049] DVB:dmx_reset_dmx_hw_ex_unlock into
[ 43.700089] DVB: demux0 smallsec buf disable
[ 43.700093] DVB: demux0 timeout disable
[ 43.700096] DVB: demux0 timeout enable:timeout(9000),ch(0xfffffff8),match(1)
[ 43.700141] DVB: demux0 smallsec buf disable
[ 43.700144] DVB: demux0 timeout disable
[ 43.700146] DVB: demux0 timeout enable:timeout(9000),ch(0xfffffff8),match(1)
[ 44.161098] i2c i2c-3: dvb_meson: found AVL6862 family_id=0x68624955
[ 44.161115] i2c i2c-3: Load avl6862 firmware patch for DVB-S/S2 size=44108
[ 46.389546] i2c i2c-3: dvb_meson: Rafael R848 successfully attached
[ 46.389567] Demod: adapter null, call aml_dvb_get_adapter
[ 46.389577] amlogic-dvb-demux dvb-demux: DVB: registering adapter 0 frontend 0 (Availink avl6862)...
[ 46.394228] aml_dvb_extern_attach_work demod 0 attach done
[ 46.396283] aml_dvb_extern_attach_work demod 0 attach done
[ 46.954332] amlogic-dvb-demux dvb-demux: DVB: adapter 0 frontend 0 frequency 0 out of range (175000000..2150000000)
[ 46.993908] i2c i2c-3: Load avl6862 firmware patch for DVB-S/S2 size=44108
[ 50.222
tvheadend live log.log (193.3 KB)
121] i2c i2c-3: Load avl6862 firmware patch for DVB-C size=51180
[ 53.003444] DVB:dmx_get_record_flag set record dmx->id: 0
[ 53.003462] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 53.003465] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 53.003468] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 53.003470] DVB: reset ASYNC FIFOs
[ 53.003473] DVB: AF(0) [off] src:0x0->0x3 size:0x0->0x1000 factor:0x0->0x7ff
[ 53.003479] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 56.564992] Modules linked in: ir_rc6_decoder ir_nec_decoder meson_ir rc_core 8021q hci_uart amvdec_avs2_fb(O) btqca serdev btintel btbcm amvdec_av1_fb(O) amvdec_h265_fb(O) amvdec_vp9_fb(O) amvdec_vp9(O) amvdec_av1(O) amvdec_vc1(O) amvdec_mmpeg4(O) amvdec_mmpeg12(O) amvdec_mmjpeg(O) amvdec_h266(O) amvdec_h265(O) amvdec_mh264(O) amvdec_h264mvc(O) amvdec_mavs(O) bluetooth amvdec_avs3(O) amvdec_avs2(O) mali_kbase(O) aic8800_bsp(O) rtw_8822cs(O) rtw_8822c(O) rtw_sdio(O) rtw_core(O) dvb_meson(O) aml_hardware_dmx(O) stream_input(O) pts_server(O) decoder_common(O) firmware(O) media_clock(O) nfsd nfs_acl nfnetlink autofs4
[ 422.734518] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 422.734536] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 422.734540] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 422.734543] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 422.734545] DVB: reset ASYNC FIFOs
[ 422.734547] DVB: AF(0) disable asyncfifo
[ 422.734551] DVB: disable ok
[ 422.736020] i2c i2c-3: Load avl6862 firmware patch for DVB-S/S2 size=44108
[ 423.149691] i2c i2c-3: Load avl6862 firmware patch for DVB-S/S2 size=44108
[ 424.700898] DVB:dmx_get_record_flag set record dmx->id: 0
[ 424.700916] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 424.700921] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 424.700925] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 424.700928] DVB: reset ASYNC FIFOs
[ 424.700933] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 424.700940] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 434.417205] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 434.417225] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 434.417229] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 434.417231] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 434.417233] DVB: reset ASYNC FIFOs
[ 434.417236] DVB: AF(0) disable asyncfifo
[ 434.417239] DVB: disable ok
[ 435.008816] DVB:dmx_get_record_flag set record dmx->id: 0
[ 435.008853] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 435.008858] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 435.008862] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 435.008865] DVB: reset ASYNC FIFOs
[ 435.008870] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 435.008876] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 435.237562] DVB:too many channels
[ 450.757103] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 450.757123] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 450.757126] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 450.757129] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 450.757131] DVB: reset ASYNC FIFOs
[ 450.757134] DVB: AF(0) disable asyncfifo
[ 450.757137] DVB: disable ok
[ 461.778995] DVB:dmx_get_record_flag set record dmx->id: 0
[ 461.779013] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 461.779016] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 461.779020] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 461.779023] DVB: reset ASYNC FIFOs
[ 461.779028] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 461.779035] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 476.514923] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 476.514942] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 476.514946] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 476.514948] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 476.514951] DVB: reset ASYNC FIFOs
[ 476.514953] DVB: AF(0) disable asyncfifo
[ 476.514957] DVB: disable ok
[ 477.140973] DVB:dmx_get_record_flag set record dmx->id: 0
[ 477.140992] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 477.140997] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 477.140999] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 477.141002] DVB: reset ASYNC FIFOs
[ 477.141005] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 477.141012] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 479.793449] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 479.793468] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 479.793472] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 479.793474] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 479.793477] DVB: reset ASYNC FIFOs
[ 479.793479] DVB: AF(0) disable asyncfifo
[ 479.793483] DVB: disable ok
[ 480.343346] DVB:dmx_get_record_flag set record dmx->id: 0
[ 480.343364] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 480.343368] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 480.343372] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 480.343375] DVB: reset ASYNC FIFOs
[ 480.343379] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 480.343387] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 480.753645] DVB:too many channels
[ 490.766583] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 490.766603] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 490.766606] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 490.766609] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 490.766611] DVB: reset ASYNC FIFOs
[ 490.766614] DVB: AF(0) disable asyncfifo
[ 490.766617] DVB: disable ok
[ 512.066630] DVB:dmx_get_record_flag set record dmx->id: 0
[ 512.066648] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 512.066654] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 512.066657] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 512.066660] DVB: reset ASYNC FIFOs
[ 512.066664] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 512.066673] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 529.480685] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 529.480706] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 529.480710] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 529.480713] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 529.480715] DVB: reset ASYNC FIFOs
[ 529.480718] DVB: AF(0) disable asyncfifo
[ 529.480722] DVB: disable ok
[ 530.080366] DVB:dmx_get_record_flag set record dmx->id: 0
[ 530.080383] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 530.080388] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 530.080392] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 530.080395] DVB: reset ASYNC FIFOs
[ 530.080400] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 530.080408] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 548.996619] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 548.996639] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 548.996643] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 548.996646] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 548.996648] DVB: reset ASYNC FIFOs
[ 548.996650] DVB: AF(0) disable asyncfifo
[ 548.996654] DVB: disable ok
[ 549.645567] DVB:dmx_get_record_flag set record dmx->id: 0
[ 549.645582] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 549.645586] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 549.645590] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 549.645593] DVB: reset ASYNC FIFOs
[ 549.645596] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 549.645604] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 549.840047] DVB:too many channels
[ 550.368977] DVB:too many channels
[ 567.319509] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 567.319527] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 567.319530] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 567.319533] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 567.319535] DVB: reset ASYNC FIFOs
[ 567.319538] DVB: AF(0) disable asyncfifo
[ 567.319541] DVB: disable ok
[ 567.960583] DVB:dmx_get_record_flag set record dmx->id: 0
[ 567.960602] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 567.960606] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 567.960609] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 567.960612] DVB: reset ASYNC FIFOs
[ 567.960617] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 567.960625] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 568.395766] DVB:too many channels
[ 568.924267] DVB:too many channels
[ 586.501448] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 586.501466] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 586.501470] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 586.501473] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 586.501475] DVB: reset ASYNC FIFOs
[ 586.501478] DVB: AF(0) disable asyncfifo
[ 586.501481] DVB: disable ok
[ 587.074878] DVB:dmx_get_record_flag set record dmx->id: 0
[ 587.074897] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 587.074902] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 587.074906] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 587.074909] DVB: reset ASYNC FIFOs
[ 587.074913] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 587.074919] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 593.034525] DVB:too many channels
[ 605.297585] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 605.297603] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 605.297607] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 605.297609] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 605.297612] DVB: reset ASYNC FIFOs
[ 605.297614] DVB: AF(0) disable asyncfifo
[ 605.297617] DVB: disable ok
[ 647.168385] DVB:dmx_get_record_flag set record dmx->id: 0
[ 647.168402] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 647.168407] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 647.168411] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 647.168414] DVB: reset ASYNC FIFOs
[ 647.168420] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 647.168426] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 650.390345] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 650.390364] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 650.390368] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 650.390371] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 650.390373] DVB: reset ASYNC FIFOs
[ 650.390375] DVB: AF(0) disable asyncfifo
[ 650.390379] DVB: disable ok
[ 712.864764] DVB:dmx_get_record_flag set record dmx->id: 0
[ 712.864783] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 712.864787] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 712.864791] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 712.864794] DVB: reset ASYNC FIFOs
[ 712.864798] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 712.864806] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 731.125716] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 731.125735] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 731.125739] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 731.125742] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 731.125744] DVB: reset ASYNC FIFOs
[ 731.125747] DVB: AF(0) disable asyncfifo
[ 731.125750] DVB: disable ok
[ 752.293791] DVB:dmx_get_record_flag set record dmx->id: 0
[ 752.293809] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 752.293813] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 752.293817] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 752.293821] DVB: reset ASYNC FIFOs
[ 752.293826] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 752.293832] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 752.642084] DVB:too many channels
[ 770.019881] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 770.019899] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 770.019903] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 770.019906] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 770.019908] DVB: reset ASYNC FIFOs
[ 770.019910] DVB: AF(0) disable asyncfifo
[ 770.019913] DVB: disable ok
[ 770.608137] DVB:dmx_get_record_flag set record dmx->id: 0
[ 770.608156] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 770.608160] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 770.608163] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 770.608167] DVB: reset ASYNC FIFOs
[ 770.608170] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 770.608178] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 781.085232] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 781.085252] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 781.085255] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 781.085258] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 781.085260] DVB: reset ASYNC FIFOs
[ 781.085262] DVB: AF(0) disable asyncfifo
[ 781.085266] DVB: disable ok
[ 781.624507] DVB:dmx_get_record_flag set record dmx->id: 0
[ 781.624526] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 781.624529] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 781.624533] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 781.624536] DVB: reset ASYNC FIFOs
[ 781.624541] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 781.624548] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 797.116150] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 797.116169] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 797.116173] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 797.116176] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 797.116178] DVB: reset ASYNC FIFOs
[ 797.116180] DVB: AF(0) disable asyncfifo
[ 797.116184] DVB: disable ok
[ 797.679562] DVB:dmx_get_record_flag set record dmx->id: 0
[ 797.679580] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 797.679585] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 797.679588] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 797.679591] DVB: reset ASYNC FIFOs
[ 797.679594] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 797.679601] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 798.325511] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 798.325530] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 798.325534] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 798.325537] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 798.325539] DVB: reset ASYNC FIFOs
[ 798.325542] DVB: AF(0) disable asyncfifo
[ 798.325545] DVB: disable ok
[ 798.880518] DVB:dmx_get_record_flag set record dmx->id: 0
[ 798.880536] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 798.880541] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 798.880544] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 798.880547] DVB: reset ASYNC FIFOs
[ 798.880552] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 798.880559] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 799.526427] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 799.526446] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 799.526450] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 799.526453] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 799.526455] DVB: reset ASYNC FIFOs
[ 799.526458] DVB: AF(0) disable asyncfifo
[ 799.526461] DVB: disable ok
[ 800.231672] DVB:dmx_get_record_flag set record dmx->id: 0
[ 800.231690] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 800.231694] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 800.231699] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 800.231702] DVB: reset ASYNC FIFOs
[ 800.231706] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 800.231714] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 810.712800] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 810.712821] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 810.712825] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 810.712828] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 810.712830] DVB: reset ASYNC FIFOs
[ 810.712832] DVB: AF(0) disable asyncfifo
[ 810.712836] DVB: disable ok
[ 811.452466] DVB:dmx_get_record_flag set record dmx->id: 0
[ 811.452483] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 811.452488] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 811.452492] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 811.452496] DVB: reset ASYNC FIFOs
[ 811.452500] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 811.452507] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 0.000000] 04e00000 - 04f00000, 1024 KB, linux,defendkey
[ 0.000000] 0x0000000004e00000..0x0000000004efffff (1024 KiB) map non-reusable linux,defendkey
[ 0.000000] page_trace_pre_work, trace buffer:ffffff8073800000, size:400000, end:ffffff8073c00000, module: 0
[ 0.000000] arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[ 1.977503] DMC DEBUG MEMORY ENABLED: range:0-7ffff, device=ff07fe, debug=5d
[ 1.981291] range:00000000 - 0007ffff, device:ff07fe
[ 2.006801] phy_in_base: 0x50fe000, phy_out_base: 0x50ff000
[ 2.029788] meson-gx-mmc ffe07000.emmc: allocated mmc-pwrseq
[ 2.057897] meson-gx-mmc ffe05000.sd: Got CD GPIO
[ 2.124145] defendkey ff800228.defendkey: don't config secureboot_mask
[ 2.129442] defendkey ff800228.defendkey: device defendkey created OK
[ 2.152009] [hdmitx:] warn getting FEAT_DISABLE_HDMI_60HZ: 101
[ 2.152018] [hdmitx:] warn getting FEAT_DISABLE_OUTPUT_4K: 101
[ 2.152023] [hdmitx:] warn getting FEAT_DISABLE_HDCP_TX_22: 101
[ 2.152029] [hdmitx:] warn getting FEAT_DISABLE_HDMI_TX_3D: 101
[ 2.152034] [hdmitx:] warn getting FEAT_DISABLE_HDMITX: 101
[ 2.160461] aml_media: unable to register osd driver, r=0xffffffed
[ 2.277737] buffer = 0xffffffc00b880000, size = 0x40000!
[ 2.362064] Console: switching to colour frame buffer device 240x67
[ 2.384177] meson drm-subsystem: [drm] fb0: mesondrmfb frame buffer device
[ 2.384754] meson drm-subsystem: [drm] fb1: mesondrmfb frame buffer device
[ 2.624374] amlogic-new-usb2-v2 ffe09000.usb2phy: USB2 phy probe:phy_mem:0xffe09000, iomap phy_base:0xffffffc00beed000
[ 2.624847] amlogic-new-usb3-v2 ffe09080.usb3phy: This is normal phy
[ 2.625788] amlogic-new-usb3-v2 ffe09080.usb3phy: USB3 phy probe:phy_mem:0xffe09080, iomap phy_base:0xffffffc00c005080
[ 2.625992] amlogic-new-usb3-v2 ffe09080.usb3phy: Failed to get pcie_bgp
[ 2.633930] amlogic-new-usb2-v2 ffe09000.usb2phy: Not usb-phy-trim-reg
[ 2.638847] amlogic-new-usb2-v2 ffe09000.usb2phy: Not usb-phy-trim-reg
[ 2.648486] amlogic-new-usb2-v2 ffe09000.usb2phy: Not usb-phy-trim-reg
[ 2.651851] amlogic-new-usb2-v2 ffe09000.usb2phy: Not usb-phy-trim-reg
[ 2.658750] xhci-hcd-meson xhci-hcd-meson.1.auto: hcc params 0x0228fe6c hci version 0x110 quirks 0x0000400020010010
[ 2.662880] phy: ffe09000, ctrl: 0
[ 2.675282] dwc_otg: Using Buffer DMA mode
[ 2.764159] effect_v2 is not init
[ 2.764289] no node audio_effect for eq/drc info!
[ 40.983925] wifi_dummy: found enabled sdio@ffe03000
[ 41.620731] meson-gx-mmc ffe03000.sdio: card claims to support voltages below defined range
[ 45.992869] mali ffe40000.bifrost: Kernel DDK version r44p0-01eac0
[ 45.994645] mali ffe40000.bifrost: No OPPs found in device tree! Scaling timeouts using 100000 kHz
[ 45.994671] mali ffe40000.bifrost: GPU identified as 0x3 arch 7.0.9 r0p0 status 0
[ 45.994736] mali ffe40000.bifrost: No priority control manager is configured
[ 45.994846] mali ffe40000.bifrost: No memory group manager is configured
[ 46.009029] mali ffe40000.bifrost: Probed as mali0
[ 46.641548] meson8b-dwmac ff3f0000.ethernet eth0: No Safety Features support found
[ 54.853102] Not init audio effects
[ 54.855493] Not init audio effects
[ 54.858555] Not init audio effects
[ 54.860585] Not init audio effects
[ 54.862376] Not init audio effects
[ 54.899444] Not init audio effects
[ 54.903858] Not init audio effects
[ 54.928025] Not init audio effects
[ 56.565129] x23: ffffffc00914911c x22: ffffff8071bfe6c0 x21: ffffffc010f23b1c
1 Like
[ 2.133295] dvb power gpio invalid
[ 2.133427] aml_dvb_extern_init: OK, version: V1.28
[ 43.686584] probe amlogic dvb driver [V2.02]
[ 43.686773] aml_dvb_get_adapter need register adapter first.
[ 43.686777] DVB: registering new adapter (amlogic-dvb)
[ 43.699840] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 43.699847] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 43.699850] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 43.699852] DVB: reset ASYNC FIFOs
[ 43.700035] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 43.700039] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 43.700042] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 43.700044] DVB: reset ASYNC FIFOs
[ 43.700049] DVB:dmx_reset_dmx_hw_ex_unlock into
[ 43.700089] DVB: demux0 smallsec buf disable
[ 43.700093] DVB: demux0 timeout disable
[ 43.700096] DVB: demux0 timeout enable:timeout(9000),ch(0xfffffff8),match(1)
[ 43.700141] DVB: demux0 smallsec buf disable
[ 43.700144] DVB: demux0 timeout disable
[ 43.700146] DVB: demux0 timeout enable:timeout(9000),ch(0xfffffff8),match(1)
[ 44.161098] i2c i2c-3: dvb_meson: found AVL6862 family_id=0x68624955
[ 44.161115] i2c i2c-3: Load avl6862 firmware patch for DVB-S/S2 size=44108
[ 46.389546] i2c i2c-3: dvb_meson: Rafael R848 successfully attached
[ 46.389567] Demod: adapter null, call aml_dvb_get_adapter
[ 46.389577] amlogic-dvb-demux dvb-demux: DVB: registering adapter 0 frontend 0 (Availink avl6862)...
[ 46.394228] aml_dvb_extern_attach_work demod 0 attach done
[ 46.396283] aml_dvb_extern_attach_work demod 0 attach done
[ 46.954332] amlogic-dvb-demux dvb-demux: DVB: adapter 0 frontend 0 frequency 0 out of range (175000000..2150000000)
[ 46.993908] i2c i2c-3: Load avl6862 firmware patch for DVB-S/S2 size=44108
[ 50.800121] i2c i2c-3: Load avl6862 firmware patch for DVB-C size=51180
[ 53.003444] DVB:dmx_get_record_flag set record dmx->id: 0
[ 53.003462] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 53.003465] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 53.003468] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 53.003470] DVB: reset ASYNC FIFOs
[ 53.003473] DVB: AF(0) [off] src:0x0->0x3 size:0x0->0x1000 factor:0x0->0x7ff
[ 53.003479] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 56.564992] Modules linked in: ir_rc6_decoder ir_nec_decoder meson_ir rc_core 8021q hci_uart amvdec_avs2_fb(O) btqca serdev btintel btbcm amvdec_av1_fb(O) amvdec_h265_fb(O) amvdec_vp9_fb(O) amvdec_vp9(O) amvdec_av1(O) amvdec_vc1(O) amvdec_mmpeg4(O) amvdec_mmpeg12(O) amvdec_mmjpeg(O) amvdec_h266(O) amvdec_h265(O) amvdec_mh264(O) amvdec_h264mvc(O) amvdec_mavs(O) bluetooth amvdec_avs3(O) amvdec_avs2(O) mali_kbase(O) aic8800_bsp(O) rtw_8822cs(O) rtw_8822c(O) rtw_sdio(O) rtw_core(O) dvb_meson(O) aml_hardware_dmx(O) stream_input(O) pts_server(O) decoder_common(O) firmware(O) media_clock(O) nfsd nfs_acl nfnetlink autofs4
[ 422.734518] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 422.734536] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 422.734540] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 422.734543] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 422.734545] DVB: reset ASYNC FIFOs
[ 422.734547] DVB: AF(0) disable asyncfifo
[ 422.734551] DVB: disable ok
[ 422.736020] i2c i2c-3: Load avl6862 firmware patch for DVB-S/S2 size=44108
[ 423.149691] i2c i2c-3: Load avl6862 firmware patch for DVB-S/S2 size=44108
[ 424.700898] DVB:dmx_get_record_flag set record dmx->id: 0
[ 424.700916] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 424.700921] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 424.700925] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 424.700928] DVB: reset ASYNC FIFOs
[ 424.700933] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 424.700940] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 434.417205] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 434.417225] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 434.417229] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 434.417231] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 434.417233] DVB: reset ASYNC FIFOs
[ 434.417236] DVB: AF(0) disable asyncfifo
[ 434.417239] DVB: disable ok
[ 435.008816] DVB:dmx_get_record_flag set record dmx->id: 0
[ 435.008853] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 435.008858] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 435.008862] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 435.008865] DVB: reset ASYNC FIFOs
[ 435.008870] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 435.008876] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 435.237562] DVB:too many channels
[ 450.757103] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 450.757123] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 450.757126] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 450.757129] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 450.757131] DVB: reset ASYNC FIFOs
[ 450.757134] DVB: AF(0) disable asyncfifo
[ 450.757137] DVB: disable ok
[ 461.778995] DVB:dmx_get_record_flag set record dmx->id: 0
[ 461.779013] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 461.779016] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 461.779020] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 461.779023] DVB: reset ASYNC FIFOs
[ 461.779028] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 461.779035] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 476.514923] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 476.514942] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 476.514946] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 476.514948] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 476.514951] DVB: reset ASYNC FIFOs
[ 476.514953] DVB: AF(0) disable asyncfifo
[ 476.514957] DVB: disable ok
[ 477.140973] DVB:dmx_get_record_flag set record dmx->id: 0
[ 477.140992] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 477.140997] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 477.140999] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 477.141002] DVB: reset ASYNC FIFOs
[ 477.141005] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 477.141012] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 479.793449] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 479.793468] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 479.793472] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 479.793474] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 479.793477] DVB: reset ASYNC FIFOs
[ 479.793479] DVB: AF(0) disable asyncfifo
[ 479.793483] DVB: disable ok
[ 480.343346] DVB:dmx_get_record_flag set record dmx->id: 0
[ 480.343364] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 480.343368] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 480.343372] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 480.343375] DVB: reset ASYNC FIFOs
[ 480.343379] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 480.343387] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 480.753645] DVB:too many channels
[ 490.766583] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 490.766603] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 490.766606] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 490.766609] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 490.766611] DVB: reset ASYNC FIFOs
[ 490.766614] DVB: AF(0) disable asyncfifo
[ 490.766617] DVB: disable ok
[ 512.066630] DVB:dmx_get_record_flag set record dmx->id: 0
[ 512.066648] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 512.066654] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 512.066657] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 512.066660] DVB: reset ASYNC FIFOs
[ 512.066664] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 512.066673] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 529.480685] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 529.480706] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 529.480710] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 529.480713] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 529.480715] DVB: reset ASYNC FIFOs
[ 529.480718] DVB: AF(0) disable asyncfifo
[ 529.480722] DVB: disable ok
[ 530.080366] DVB:dmx_get_record_flag set record dmx->id: 0
[ 530.080383] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 530.080388] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 530.080392] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 530.080395] DVB: reset ASYNC FIFOs
[ 530.080400] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 530.080408] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 548.996619] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 548.996639] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 548.996643] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 548.996646] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 548.996648] DVB: reset ASYNC FIFOs
[ 548.996650] DVB: AF(0) disable asyncfifo
[ 548.996654] DVB: disable ok
[ 549.645567] DVB:dmx_get_record_flag set record dmx->id: 0
[ 549.645582] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 549.645586] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 549.645590] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 549.645593] DVB: reset ASYNC FIFOs
[ 549.645596] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 549.645604] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 549.840047] DVB:too many channels
[ 550.368977] DVB:too many channels
[ 567.319509] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 567.319527] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 567.319530] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 567.319533] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 567.319535] DVB: reset ASYNC FIFOs
[ 567.319538] DVB: AF(0) disable asyncfifo
[ 567.319541] DVB: disable ok
[ 567.960583] DVB:dmx_get_record_flag set record dmx->id: 0
[ 567.960602] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 567.960606] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 567.960609] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 567.960612] DVB: reset ASYNC FIFOs
[ 567.960617] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 567.960625] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 568.395766] DVB:too many channels
[ 568.924267] DVB:too many channels
[ 586.501448] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 586.501466] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 586.501470] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 586.501473] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 586.501475] DVB: reset ASYNC FIFOs
[ 586.501478] DVB: AF(0) disable asyncfifo
[ 586.501481] DVB: disable ok
[ 587.074878] DVB:dmx_get_record_flag set record dmx->id: 0
[ 587.074897] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 587.074902] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 587.074906] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 587.074909] DVB: reset ASYNC FIFOs
[ 587.074913] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 587.074919] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 593.034525] DVB:too many channels
[ 605.297585] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 605.297603] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 605.297607] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 605.297609] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 605.297612] DVB: reset ASYNC FIFOs
[ 605.297614] DVB: AF(0) disable asyncfifo
[ 605.297617] DVB: disable ok
[ 647.168385] DVB:dmx_get_record_flag set record dmx->id: 0
[ 647.168402] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 647.168407] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 647.168411] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 647.168414] DVB: reset ASYNC FIFOs
[ 647.168420] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 647.168426] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 650.390345] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 650.390364] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 650.390368] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 650.390371] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 650.390373] DVB: reset ASYNC FIFOs
[ 650.390375] DVB: AF(0) disable asyncfifo
[ 650.390379] DVB: disable ok
[ 712.864764] DVB:dmx_get_record_flag set record dmx->id: 0
[ 712.864783] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 712.864787] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 712.864791] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 712.864794] DVB: reset ASYNC FIFOs
[ 712.864798] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 712.864806] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 731.125716] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 731.125735] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 731.125739] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 731.125742] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 731.125744] DVB: reset ASYNC FIFOs
[ 731.125747] DVB: AF(0) disable asyncfifo
[ 731.125750] DVB: disable ok
[ 752.293791] DVB:dmx_get_record_flag set record dmx->id: 0
[ 752.293809] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 752.293813] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 752.293817] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 752.293821] DVB: reset ASYNC FIFOs
[ 752.293826] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 752.293832] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 752.642084] DVB:too many channels
[ 770.019881] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 770.019899] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 770.019903] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 770.019906] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 770.019908] DVB: reset ASYNC FIFOs
[ 770.019910] DVB: AF(0) disable asyncfifo
[ 770.019913] DVB: disable ok
[ 770.608137] DVB:dmx_get_record_flag set record dmx->id: 0
[ 770.608156] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 770.608160] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 770.608163] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 770.608167] DVB: reset ASYNC FIFOs
[ 770.608170] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 770.608178] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 781.085232] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 781.085252] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 781.085255] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 781.085258] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 781.085260] DVB: reset ASYNC FIFOs
[ 781.085262] DVB: AF(0) disable asyncfifo
[ 781.085266] DVB: disable ok
[ 781.624507] DVB:dmx_get_record_flag set record dmx->id: 0
[ 781.624526] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 781.624529] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 781.624533] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 781.624536] DVB: reset ASYNC FIFOs
[ 781.624541] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 781.624548] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 797.116150] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 797.116169] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 797.116173] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 797.116176] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 797.116178] DVB: reset ASYNC FIFOs
[ 797.116180] DVB: AF(0) disable asyncfifo
[ 797.116184] DVB: disable ok
[ 797.679562] DVB:dmx_get_record_flag set record dmx->id: 0
[ 797.679580] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 797.679585] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 797.679588] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 797.679591] DVB: reset ASYNC FIFOs
[ 797.679594] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 797.679601] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 798.325511] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 798.325530] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 798.325534] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 798.325537] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 798.325539] DVB: reset ASYNC FIFOs
[ 798.325542] DVB: AF(0) disable asyncfifo
[ 798.325545] DVB: disable ok
[ 798.880518] DVB:dmx_get_record_flag set record dmx->id: 0
[ 798.880536] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 798.880541] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 798.880544] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 798.880547] DVB: reset ASYNC FIFOs
[ 798.880552] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 798.880559] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 799.526427] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 799.526446] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 799.526450] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 799.526453] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 799.526455] DVB: reset ASYNC FIFOs
[ 799.526458] DVB: AF(0) disable asyncfifo
[ 799.526461] DVB: disable ok
[ 800.231672] DVB:dmx_get_record_flag set record dmx->id: 0
[ 800.231690] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 800.231694] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 800.231699] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 800.231702] DVB: reset ASYNC FIFOs
[ 800.231706] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 800.231714] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
[ 810.712800] DVB:dmx_get_record_flag clear record dmx->id: 0
[ 810.712821] DVB: Set DMX0 TS_RECORDER_ENABLE to 0
[ 810.712825] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 810.712828] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 810.712830] DVB: reset ASYNC FIFOs
[ 810.712832] DVB: AF(0) disable asyncfifo
[ 810.712836] DVB: disable ok
[ 811.452466] DVB:dmx_get_record_flag set record dmx->id: 0
[ 811.452483] DVB: Set DMX0 TS_RECORDER_ENABLE to 1
[ 811.452488] DVB: Set DMX1 TS_RECORDER_ENABLE to 0
[ 811.452492] DVB: Set DMX2 TS_RECORDER_ENABLE to 0
[ 811.452496] DVB: reset ASYNC FIFOs
[ 811.452500] DVB: AF(0) [off] src:0x3->0x3 size:0x1000->0x1000 factor:0x7ff->0x7ff
[ 811.452507] DVB: ASYNC FIFO id=0, link to DMX0, start_addr a000000, buf_size 524288,source value 0x3, factor 1
This is unrelated to our topic, but the Mecool K5ās power light is constantly red. It should actually be blue when turned on and red when in standby mode. Thereās still a GPIO error, but itās not a major issue. It can be fixed with DTS. Also, not all S905x3-based boards can read the high-speed Class 10 SD card FAT partition. This is likely due to the stock U-Boot being too slow to read it.
19:25:25.598 gpio: pin GPIOAO_3 (gpio 3) value is 1
19:25:25.598 Command: bcb uboot-command
19:25:25.601 Start read misc partition datas!
19:25:25.604 BCB hasn't any datas,exit!
19:25:25.607 s_version: U-Boot 2015.01
19:25:25.620 amlkey_init() enter!
19:25:25.620 amlkey_init() 71: already init!
19:25:25.622 [EFUSE_MSG]keynum is 4
19:25:25.635 [KM]Error:f[key_manage_query_size]L515:key[deviceid] not programed yet
19:25:25.640 [KM]Error:f[keymanage_dts_get_key_device]L105:oemkey key name is not exist
19:25:25.646 [KM]Error:f[_get_km_ops_by_name]L240:key oemkey not know device 4
19:25:25.651 [KM]Error:f[key_manage_query_exist]L554:There isn't dts cfg for key[oemkey]
19:25:25.657 [KM]Error:f[key_manage_query_size]L511:Fail in query key exist
19:25:25.660 InUsbBurn
19:25:26.016 wait for phy ready count is 0
19:25:26.407 noSof
19:25:26.410 sof timeout, reset usb phy tuning
19:25:26.566 Hit Enter or space or Ctrl+C key to stop autoboot -- : 1 ^H^H^H 0
19:25:26.671 card in
19:25:26.671 co-phase 0x2, tx-dly 0, clock 400000
19:25:26.671 co-phase 0x2, tx-dly 0, clock 400000
19:25:26.676 co-phase 0x2, tx-dly 0, clock 400000
19:25:26.708 co-phase 0x2, tx-dly 0, clock 400000
19:25:26.708 co-phase 0x2, tx-dly 0, clock 40000000
19:25:26.716 emmc/sd read error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.716 emmc/sd response crc error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.726 retry read, count: 5
19:25:26.726 emmc/sd read error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.732 emmc/sd response crc error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.737 retry read, count: 4
19:25:26.737 emmc/sd read error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.744 emmc/sd response crc error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.748 retry read, count: 3
19:25:26.754 emmc/sd read error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.759 emmc/sd response crc error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.765 retry read, count: 2
19:25:26.765 emmc/sd read error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.771 emmc/sd response crc error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.777 retry read, count: 1
19:25:26.782 emmc/sd read error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.789 emmc/sd response crc error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.794 retry read error !!!
19:25:26.794 emmc/sd read error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.800 emmc/sd response crc error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.805 retry read, count: 5
19:25:26.805 emmc/sd read error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.811 emmc/sd response crc error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.816 retry read, count: 4
19:25:26.821 emmc/sd read error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.828 emmc/sd response crc error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.800 retry read, count: 3
19:25:26.800 emmc/sd read error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.838 emmc/sd response crc error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.800 retry read, count: 2
19:25:26.849 emmc/sd read error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.855 emmc/sd response crc error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.861 retry read, count: 1
19:25:26.861 emmc/sd read error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.800 emmc/sd response crc error, cmd17, cmd->cmdarg=0x0, status=0x1ff240f
19:25:26.871 retry read error !!!
19:25:26.800 emmc/sd read error, cmd17, cmd->cmdarg=0x12000, status=0x1ff240f
19:25:26.881 emmc/sd response crc error, cmd17, cmd->cmdarg=0x12000, status=0x1ff240f
19:25:26.880 retry read, count: 5
19:25:26.880 emmc/sd read error, cmd17, cmd->cmdarg=0x12000, status=0x1ff240f
19:25:26.894 emmc/sd response crc error, cmd17, cmd->cmdarg=0x12000, status=0x1ff240f
19:25:26.899 retry read, count: 4
19:25:26.905 emmc/sd read error, cmd17, cmd->cmdarg=0x12000, status=0x1ff240f
19:25:26.912 emmc/sd response crc error, cmd17, cmd->cmdarg=0x12000, status=0x1ff240f
19:25:26.914 retry read, count: 3
19:25:26.921 emmc/sd read error, cmd17, cmd->cmdarg=0x12000, status=0x1ff240f
19:25:26.925 emmc/sd response crc error, cmd17, cmd->cmdarg=0x12000, status=0x1ff240f
19:25:26.928 retry read, count: 2
19:25:26.935 emmc/sd read error, cmd17, cmd->cmdarg=0x12000, status=0x1ff240f
19:25:26.940 emmc/sd response crc error, cmd17, cmd->cmdarg=0x12000, status=0x1ff240f
19:25:26.945 retry read, count: 1
19:25:26.945 emmc/sd read error, cmd17, cmd->cmdarg=0x12000, status=0x1ff240f
19:25:26.951 emmc/sd response crc error, cmd17, cmd->cmdarg=0x12000, status=0x1ff240f
19:25:26.956 retry read error !!!
19:25:26.962 [mmc_init] mmc init success
19:25:26.962 Device: SDIO Port B
19:25:26.962 Manufacturer ID: 6f
19:25:26.968 OEM: 303
19:25:26.968 Name: CBADS
19:25:26.968 Tran Speed: 50000000
19:25:26.968 Rd Block Len: 512
19:25:26.973 SD version 3.0
19:25:26.973 High Capacity: Yes
19:25:26.973 Capacity: (0xe90480000 Bytes) 58.3 GiB
19:25:26.979 mmc clock: 40000000
19:25:26.979 Bus Width: 4-bit
19:25:26.979 ** No partition table - mmc 0 **
19:25:26.984 (Re)start USB...
19:25:26.984 USB0: USB3.0 XHCI init start
19:25:27.195 Register 3000140 NbrPorts 2
19:25:27.195 Starting the controller
19:25:27.195 USB XHCI 1.10
19:25:27.196 scanning bus 0 for devices...
19:25:27.511 Disconnected
The dts file in mecool k5 can be added to common_drivers. DVB, LAN, Wi-Fi, and others work. Only dmesg errors are present. I donāt know if this is important or not.
Thank you very much rozpruwacz for your great support, now we can focus on getting MxL608+AVL6762 (DVB-T/T2) and AV2018+AVL6261C (DVB-S2X/S2/S) working.
i was talking about the name on tvh they are different but i didnt know he is trying with two stbs
good to hear its working .
side question when you said mecool k5 openpli did you mean vitmod android?
please upload dtb file for me to be sure which version is working. I will make a PR to push it uptream.
There is no configuration for sys_led in generic dts, i will add this.
If You reffering to:
dvb power gpio invalid
then this is not an error, it is just saying that the gpio for demod power control is not configured. It is not clear for me which gpio if any is for power control. If it works then it means that it is not required to control this gpio
You mean error in u-boot logs regarding emmc/sd ? I did not see any errors in dmesg
actually there is, the led is nofigured to GPIOAO_11. so it means that the led is on different GPIO. I need android device tree for mecool k5, can you provide it ?
Or maybe it has different polarity, try this:
echo none > /sys/class/leds/sys_led/trigger
echo 0 > /sys/class/leds/sys_led/brightness
echo 1 > /sys/class/leds/sys_led/brightness
does the led changes when changing brightness ?
The mecool K5 works very well with Android 13.2 ATV (Vitmod) software. Developer Vitaly compiled Enigma 2 and Neutrino software into Android APKs, and these apps run perfectly on Android 13.2 as DVB software. It also has Openpli 8.0 as SDcard software, making it a good option for those who want to use raw Enigma 2. Iām providing the links. Your RS6060 driver might work.
1 Like
Older GXBB and GXL devices work with Class 10 SD cards. S905x3 devices canāt read the fat portion of Class 10 SD cards. Therefore, I use either a USB or a low-speed SD card. Is it possible to reduce the read speed with uboot commands or DTS? I think the kernel adjusts the speed after the system boots. I understand the other parts. Iāll try the LED part.
DTS changes will only affect linux, not u-boot. DTS needs to be first read from SD card by u-boot
I did not see any errors regarding SD card in linux, but for sure You can change the speed somehow - I donāt know exactly how.
