SoC S7D S905X5M

Help & Support Hardware
82

No, I’m just saying that slimBOXtv firmware doesn’t interfere with its installation, once it gets supported by CoreELEC.

1 Like
83

Thanks! :+1:

84

@vpeter I have a m96 m200 so I build CE yesterday because of the new m96 m300 support but it didn’t load past the recovery screen. It might not be supported, (I hoped they were similar enough) but is there a trick to get the m300 running? I see slimbox from the m200 doesn’t use a normal image. X96 M200 — slimBOXtv

85

X96 M200 and X96 M300 are very similar and I think both should be supported.

But currently we are finishing new recovery method which will allow booting this device (and probably others too). That’s why your device is still in the dark :slight_smile:

Soon :tm:

4 Likes
86

The new install method by recovery.img is now available with last nightly 20250810.

Only change for users is need to release the reset button after a black screen and reboot when the vendor logo appears again. Then on next reboot CE should start.

4 Likes
87

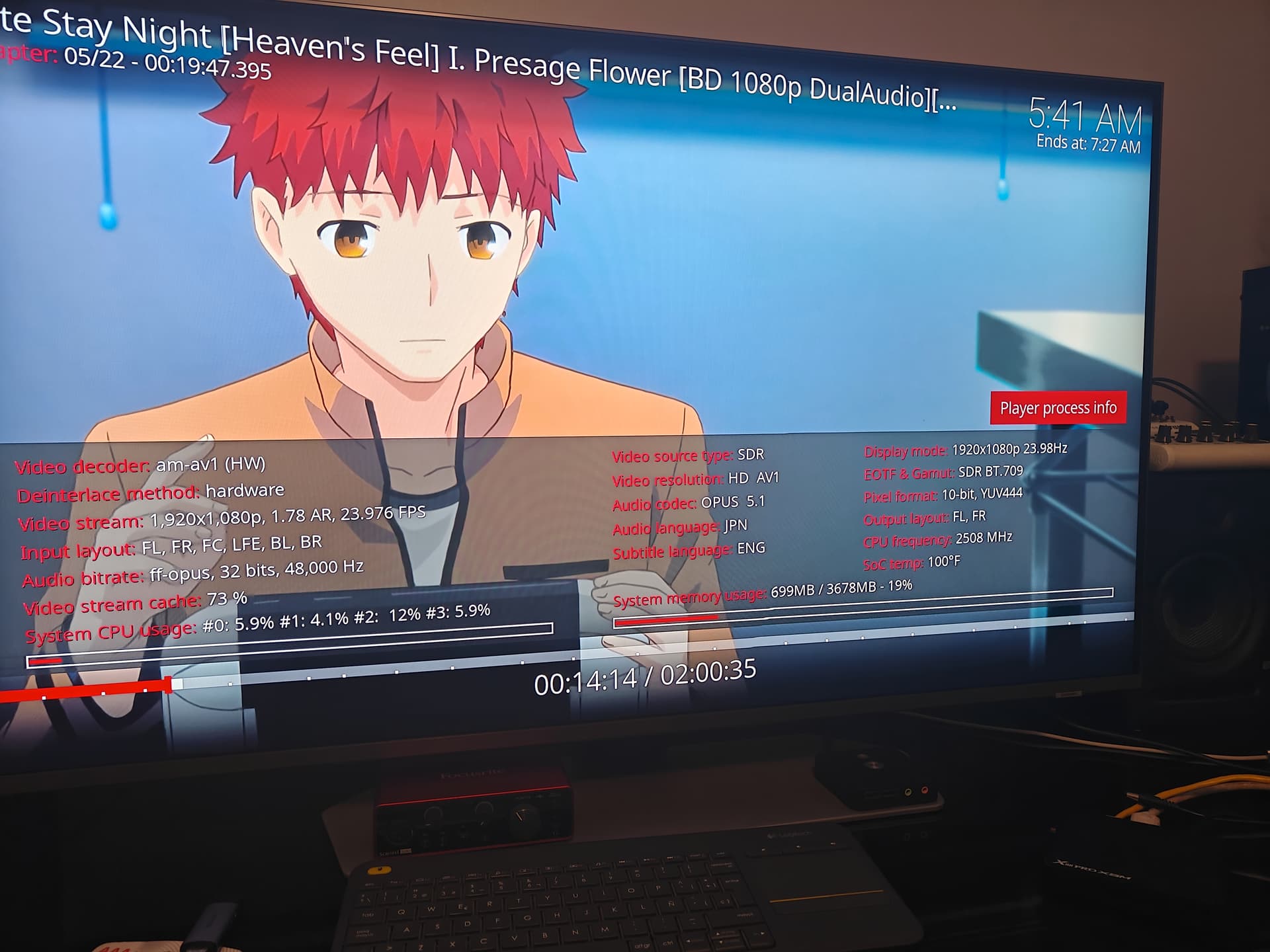

Just want to report that my X88 Pro X5M works using s7d_s905x5m_x96_m300.dtb. Boots from SD, 1G ethernet works, Wifi doesn’t.

Thanks a lot for your work!

IMG202508100541061920×1440 196 KB

1 Like
88

Better use the generic DTB:
s7d_s905x5m_4g_1gbit.dtb

For WiFi:

1 Like
89

How’d you get it too work, I’m still having no luck with my X88 Pro X5M box.

2 Likes
90

Stupid question: X88 Pro X5M does support DV right? In many AliExpress listings, only HDR & HDR10+ are mentioned. Thanks.

91

No it doesn’t support DV.

I think the only S905X5M box that supports DV is the Xiaomi Box S 3rd Gen, but whether it will also support CoreELEC is unknown.

2 Likes
92

Thanks CE team. I used adb reboot update and didn’t have to to hit any reset pin.

However on my x96 m200 I got no network plus there is a message somethink like Update Android Firmware 0.0 found. Installing USB ethernet I got this log
https://paste.coreelec.org/SigmaShocking

93

For X96 M200 use dtb for M300 - those are similar devices.

1 Like
94

Got the X88 pro X5M 2/16 and no luck for booting CE-NO until now.
Tried

s7d_s905x5m_2g.dtb
s7d_s905x5m_2g_1gbit.dtb
s7d_s905x5m_x96_m300.dtb

Each of them failed to boot up; the first two restarted Android and the third froze.
I started them up from Android using adb reboot update, as I didn’t really understand the other method.

95

The solution for non-booting device is to attach serial console to see what is going on.

That’s why we insist on getting devices in hand. Without device it’s a job for one user if you really want to get it used.

96

Can you say me what I need to order to help you log things from the serial console?
The x88 pro x5m will be a bestseller in terms of value for money.

also, I extracted the DTB from android using dd if=/dev/dtb
If you need it I can attach the file somewhere on the forum.

97

From log dt id
s7d_S905x5m_4g_1gbit.

I see you opted for the 4 and 32 gig version.

This Hobby is so addictive
Lol

I do not need another Box,but the price is so low,right now at early stage ???

What is different between M200 and M300?CPU is common Chipset/wifi/etc

98

Thanks @vpeter, not sure why I didn’t try that before posting, good now Is the VFD supposed to be working?

99

With correct config yes. Maybe @Portisch can share it (I didn’t test it yet … and this is my first device with it …)

100

@freddy why do you think I only have 32GB? /data on Android is 54GB but it isn’t mounted by CE

/dev/block/dm-50 54G 2.4G 52G 5% /data

Any I like the C5 so far as noted above and and very limited testing seems to be the same This runs at 51C and 2 watts so pretty nice.

x96:~ # iperf3 -c 172.16.3.105
Connecting to host 172.16.3.105, port 5201
[  5] local 172.16.3.22 port 41482 connected to 172.16.3.105 port 5201
[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   0.00-1.00   sec   114 MBytes   956 Mbits/sec    0    551 KBytes
[  5]   1.00-2.00   sec   112 MBytes   943 Mbits/sec    0    615 KBytes
[  5]   2.00-3.00   sec   114 MBytes   952 Mbits/sec    0    765 KBytes
[  5]   3.00-4.00   sec   112 MBytes   941 Mbits/sec    0    802 KBytes
[  5]   4.00-5.00   sec   111 MBytes   934 Mbits/sec    0    802 KBytes
[  5]   5.00-6.00   sec   113 MBytes   947 Mbits/sec    0    802 KBytes
[  5]   6.00-7.00   sec   112 MBytes   938 Mbits/sec    0    802 KBytes
[  5]   7.00-8.00   sec   112 MBytes   942 Mbits/sec    0    802 KBytes
[  5]   8.00-9.00   sec   111 MBytes   932 Mbits/sec    0    802 KBytes
[  5]   9.00-10.00  sec   112 MBytes   940 Mbits/sec    0    802 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-10.00  sec  1.10 GBytes   943 Mbits/sec    0            sender
[  5]   0.00-10.01  sec  1.10 GBytes   940 Mbits/sec                  receiver

Martin
