Similar devices, such as Dune HD Homatics, support the profile7 on Android through the special Dune application, ( Dune HD Media Center App) which is an application based on Linux, so I think it is not impossible for the CoreELEC.

Dolby Vision profile 7 FEL

  • Dune HD media center supports direct playback of Dolby Vision profile 7 FEL double-track and double-layer files. This is the most advanced Dolby Vision format. Dune HD media center plays video in this format using both tracks/layers. The important Dolby Vision information from the second track/layer (Dolby Vision RPU metadata) is transmitted to TV together with video data from the first track/layer. The passed video data uses 10-bit color depth - the maximum color depth supported by OLED-panels in OLED TVs, i.e. this fully uses the capabilities of OLED TVs. Combined with the full use of DolbyVision metadata this gives an excellent Dolby Vision picture on the TV screen.

Linux-based Dune HD OS

  • Dune HD media center runs a Linux-based Dune HD OS in a special virtual container. This Linux-based OS helps to ensure stable operation and smooth media playback.
103

We already support it like Dune APP. With dovi_lib by convert it to P8.1.
Dune APP is not doing anything else.

1 Like
104

Is there a big difference between it and dovi.ko for ugoos ?

I don’t know how this file works dovi.ko, but i see some info for “rpu_BL_bit” and “rpu_EL_bit” inside dovi.ko for Kinhank G1 with Notepad++

105

Zuma if you want to try one more try

Should be dmesg | grep dv capability

Here is result

https://paste.coreelec.org/pmcKEP

Ethernet
Wifi
Bluetooth

All working!!!

Thanks Portisch/Team CoreELEC

Will click on some adds

***Bot is editing the line you need this symbol/character

( ` ) before and after dv capability with no space

1 Like
106

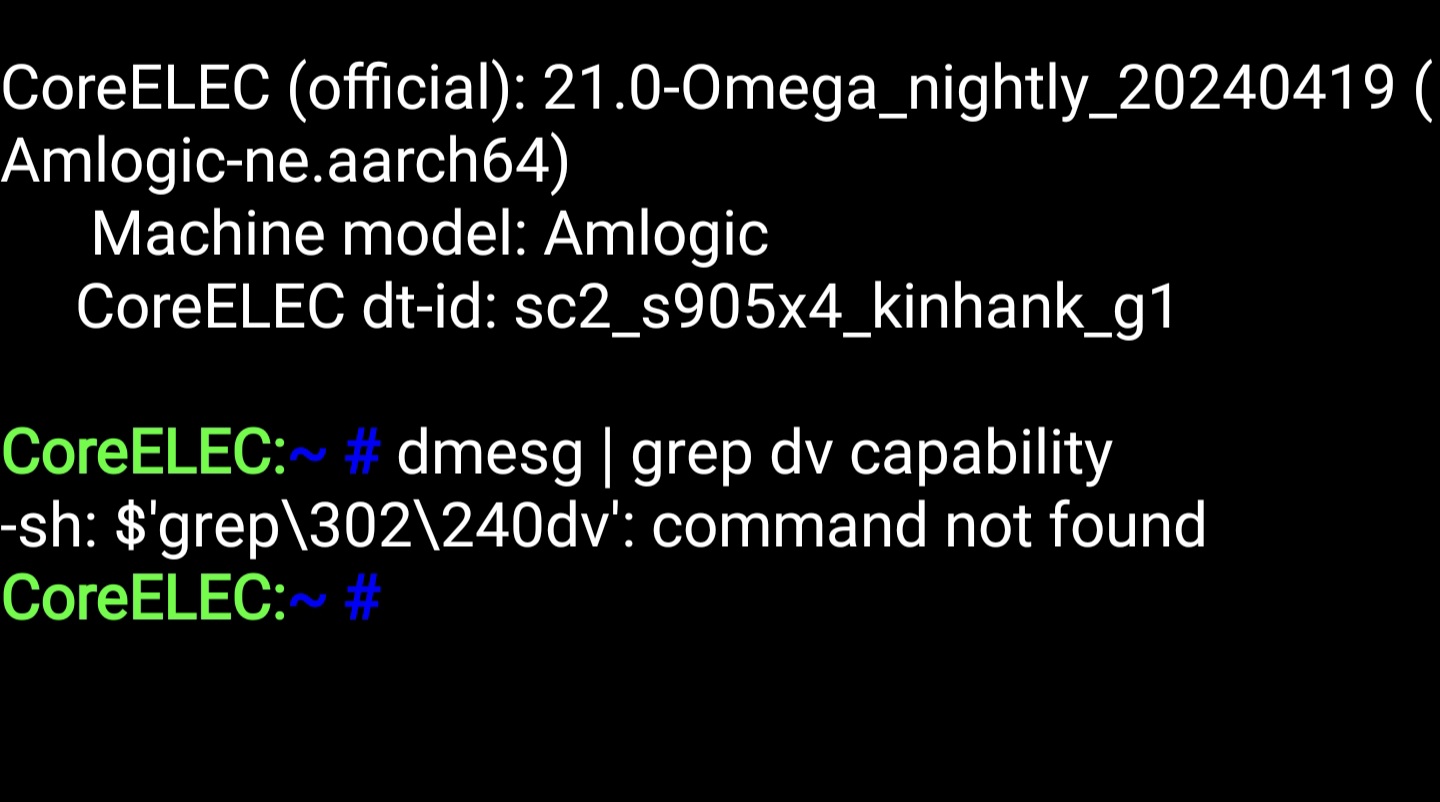

Screenshot_٢٠٢٤٠٤١٩_٢٠٤٦٥٢_Mobile SSH
Screenshot_٢٠٢٤٠٤١٩_٢٠٤٦٥٢_Mobile SSH1440×802 143 KB

107

Come on :thinking:

dmesg | grep 'dv capability'

or

dmesg | grep "dv capability"
1 Like
108

This box comes with G10 remote

However Dune Homatics 4k remote config
That Portisch/Frodo built .

Is working!!!
Basic functions

Directional pad
Volume
Back button
Power

Have not tested all buttons or mapped anything

So

Ethernet
Wifi
Bluetooth
Remote Control

All working

Thanks again Tean CoreELEC!!!

Now on to testing sone Dolby Vision!!!

1 Like
109

I’ve tried to use inject_bl301 tool to configure remote controller to switch on the device but it failed with the message:
Looks like device FIP is encrypted! Error - exit!
Is there an other method to control power on/off using the factory remote?

110

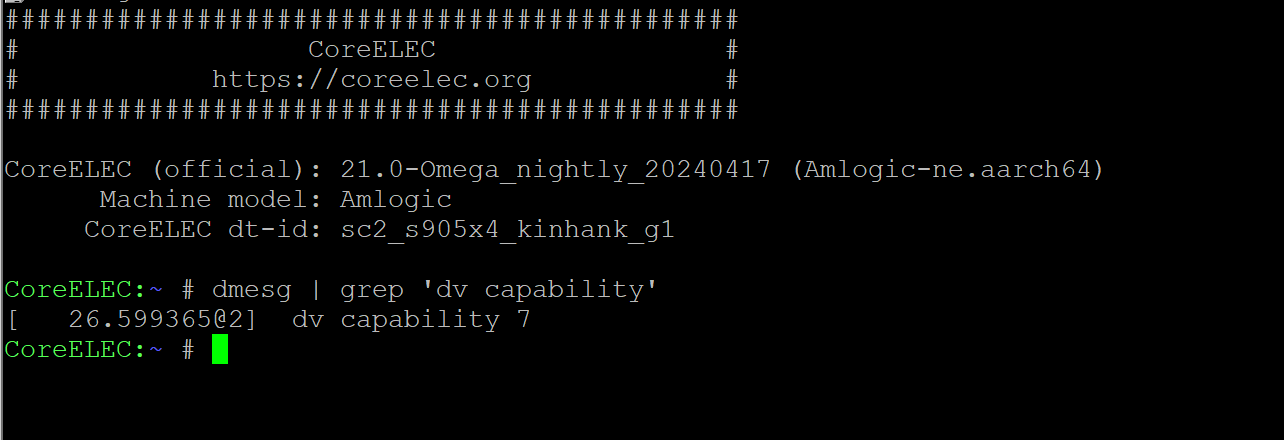

20240420232045
202404202320451284×440 12.3 KB

1 Like
111

Don’t copy/paste images if you can just copy text!

112
CoreELEC (official): 21.0-Omega_nightly_20240419 (Amlogic-ne.aarch64)
      Machine model: Amlogic
     CoreELEC dt-id: sc2_s905x4_kinhank_g1

CoreELEC:~ # dmesg | grep "dv capability"
[   14.575837@2]  dv capability 7
CoreELEC:~ # dmesg | grep 'dv capability'
[   14.575837@2]  dv capability 7
CoreELEC:~ #
113

Seems to be issues with Power off System
With or without remote control???

What does ssh shutdown
Result
Have not tried yet.

Reboot is working
Reboot fromm emmc/nand is working

If you disable CeC adapter in CoreELEC
Suspend function works

But must use power button on Front of Box to Unsuspend

When you use reboot from emmc/nand function
In Android Long press power button

Should be 3 options

Lock Down
Power off
Restart

Restart takes you to boot CoreELEC

Power off will shutdown Box
Then use power button on G10 remote
Box will boot to CoreELEC

114

ya
if send command:
CoreELEC:~ # poweroff

box shoutdown but not start again via remote power

also remote G10 not connected BT correct if run back & home in same time

115

Dont understand run back and Home???

Remote config is ir
Not Bluetooth??

Remote config is based on Homatics Dune G25 i think :thinking:

So you will not have all Button functions mapped / working

116

G10 remote have IR & BT

Screenshot_٢٠٢٤٠٤٢٠_٢٠١٤٥٣_Samsung Internet
Screenshot_٢٠٢٤٠٤٢٠_٢٠١٤٥٣_Samsung Internet1438×1576 86.5 KB

you can see in list bt

red led = IR
green led = BT

117

Ok

So back button/ return is working for me

Home button when you click on can here sound from UI
But does not return you to Home

As posted not all functions will be mapped correctly or not working at all.

Do not know about Bluetooth config???

Test n Try i guess

118

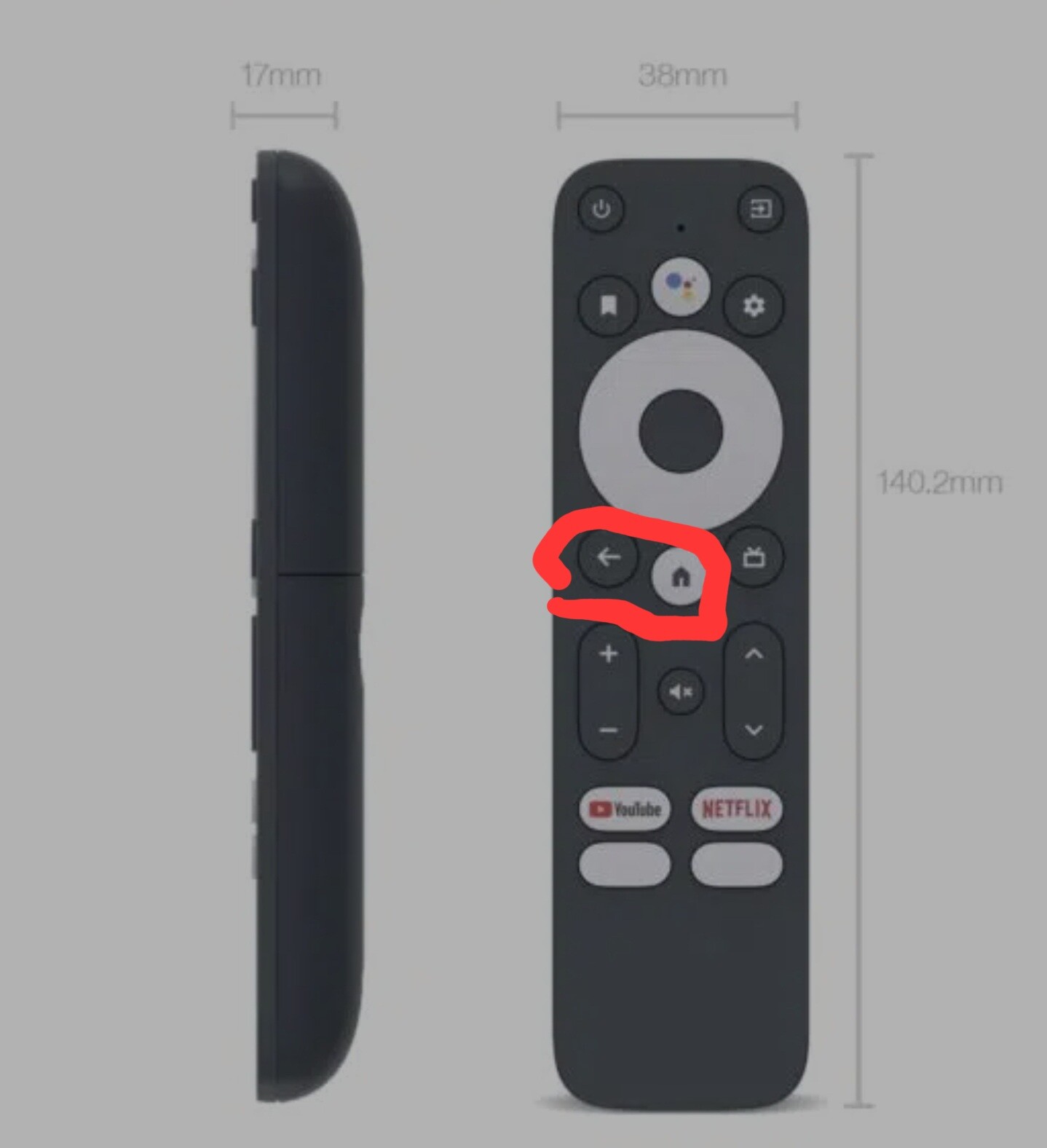

I mean, press the two buttons at the same time for a while until the remote light lights up green. This is the Bluetooth pairing status of the remote.

119

In Android the G10 is paired at setup as bluetooth accessory
And i can add soundbar/ bluetooth speakers
All is good.

In CoreELEC i do not think there is dual pairing
Multiple devices paired.
I could not get it to work
Was conflict with speakers

I did test G10 in CoreELEC paired as controller
Some functions were working
BUT the most important function (imo)
In centre of D-Pad the ok/select/enter button does not work.

For these 2 reasons iam staying with Homatics Dune
ir remote config Portisch/Frodo built

120

You need to adjust this 2 buttons with udev hwdb rule like here.

3 Likes
121

Thanks @vpeter for this link
here for G10

**CoreELEC****:****~ #** cat /proc/bus/input/devices
I: Bus=0010 Vendor=1b8e Product=0cec Version=0001
N: Name="cec_input"
P: Phys=
S: Sysfs=/devices/virtual/input/input0
U: Uniq=
H: Handlers=kbd event0
B: PROP=0
B: EV=3
B: KEY=10800000 0 1 10000 117840000000 1e168000000000 10008002

I: Bus=0010 Vendor=0001 Product=0001 Version=0100
N: Name="input_btrcu"
P: Phys=input_btrcu/input0
S: Sysfs=/devices/platform/aml_bt/input/input1
U: Uniq=
H: Handlers=kbd event1
B: PROP=0
B: EV=3
B: KEY=20 10000000000000 0

I: Bus=0010 Vendor=0001 Product=0001 Version=0100
N: Name="vad_keypad"
P: Phys=vad_keypad/input3
S: Sysfs=/devices/platform/soc/fe330000.audiobus/fe330000.audiobus:vad/input/input2
U: Uniq=
H: Handlers=kbd event2
B: PROP=0
B: EV=3
B: KEY=1 0 0 10000000000000 0

I: Bus=0010 Vendor=0001 Product=0001 Version=0100
N: Name="ir_keypad"
P: Phys=keypad/input0
S: Sysfs=/devices/platform/fe084040.meson-remote/input/input3
U: Uniq=
H: Handlers=sysrq rfkill kbd mouse0 event3
B: PROP=0
B: EV=7
B: KEY=ffffffffffffffff ffffffffffffffff ffffffffffffffff ffffffffffffffff ffffffffffffffff ffffffff00000000 70000 ffffffffffffffff ffffffffffffffff ffffffffffffffff fffffffffffffffe
B: REL=103

I: Bus=0005 Vendor=0957 Product=0008 Version=0001
N: Name="RemoteG10 Keyboard"
P: Phys=d4:9c:dd:f3:ee:19
S: Sysfs=/devices/virtual/misc/uhid/0005:0957:0008.0001/input/input4
U: Uniq=d0:1b:1f:b0:a2:63
H: Handlers=sysrq kbd leds event4
B: PROP=0
B: EV=120013
B: KEY=1000000000007 ff98007a404007ff febeffdfffefffff fff80f803c00fffe
B: MSC=10
B: LED=1f

I: Bus=0005 Vendor=0957 Product=0008 Version=0001
N: Name="RemoteG10 Consumer Control"
P: Phys=d4:9c:dd:f3:ee:19
S: Sysfs=/devices/virtual/misc/uhid/0005:0957:0008.0001/input/input5
U: Uniq=d0:1b:1f:b0:a2:63
H: Handlers=kbd event5
B: PROP=0
B: EV=1f
B: KEY=306ff 0 0 483ffff17aff32d bfd4444600000000 1 130ff38b17c000 677bfad9415fed 9ed68000004400 10000002
B: REL=1040
B: ABS=100000000
B: MSC=10

and any one need fix “ENTER” via BT G10 remote, you can copy this file to /etc/udev/hwdb.d/
and reboot
10-ur01.hwdb (50 Bytes)
