TOX3 (mobo S905X4_TOX_V3.0) “second version started from December 2022”
wifi chip - rtl8822cs
20.1_ne WiFi OK BT OK
21.0_ng WiFi OK BT OK
21.0_ne WiFi No BT OK
In the list of networks, all networks are visible, but when try to connect, nothing happens.
Fresh install - sc2_s905x4_4g_1gbit.dtb
from CoreELEC-Amlogic-ne.aarch64-21.0-Omega_nightly_20230402-Generic.img.gz
http://ix.io/4sLh
http://ix.io/4sLi
Equu
6 April 2023 04:32
728
Most recent update seems to have really messed something up for my Wifi. I can’t seem to get my machine to connect to anything besides my Yatse controller of all things. If I’m able to figure out a way to pull the logs I will.
N2+
You all can try to enable the slow sdio mode like we had with old kernel. It looks like the device is found but it can not write to it. So try these cmds:
mf
fdtput -t i /flash/dtb.img /soc/sdio@fe088000 max-frequency 170000000
sync
reboot
Also please make a complete CE log from NG where the Wifi is working.
Do this through SSH?
Then I got it
CoreELEC (official): 21.0-Omega_nightly_20230402 (Amlogic-ne.aarch64)
Machine model: Amlogic
CoreELEC dt-id: sc2_s905x4_4g_1gbit
CoreELEC:~ # mf
CoreELEC:~ # fdtput -t i dtb.img /soc/sdio@fe088000 max-frequency 170000000
Couldn’t open blob from ‘dtb.img’: No such file or directory
And how make a complete CE log?
I missed the path: /flash/dtb.img
1 Like
how make a complete CE log?
Does not work.
TOX3 (S905X4/C2 Revision 32:d)
Here are fresh installs of NG and NE.
NE WiFi does not work (there is a list of networks, it tries to connect and cannot)
NG WiFi works correctly
CoreELEC (official): 21.0-Omega_nightly_20230408 (Amlogic-ne .aarch64)
Machine model: Amlogic
CoreELEC dt-id: sc2_s905x4_4g_1gbit
CoreELEC:~ # dmesg | paste
http://ix.io/4sXM
CoreELEC (official): 21.0-Omega_nightly_20230408 (Amlogic-ng .arm)
Machine model: Amlogic
CoreELEC dt-id: sc2_s905x4_4g_1gbit
CoreELEC:~ # dmesg | paste
http://ix.io/4sXQ
Coreelec 20.1 no funciona bluetooth
mszs
21 April 2023 21:42
737
I have a X96 Max Plus Ultra 4/64 w/ 1G Ethernet.
udevadm info /sys/bus/sdio/devices/* | paste
gives http://ix.io/4tXH
and
dmesg | paste
gives http://ix.io/4tXJ
Yesterday, I saw “No Bluetooth adapter found” today it says “Bluetooth disabled”… strange
mszs
23 April 2023 14:06
739
That sounds so last century… no driver for Linux?!?
Do you happen to know if someone is working on this? How much of a chance there is to have such a driver soon? Is documentation of the chip available?
No BT and Shows duplicate networks for (wlan0 and p2p0) for WIFI - CoreELEC 20.1-Nexus (ne) Stable
Device: Tanix X4 Original Global Android 11 Amlogic S905X4 Smart TV Box 4G 32G 64G 2.4G/5G Dual WiFi 100M 4K Media Player TV
CoreELEC:~ # udevadm info /sys/bus/sdio/devices/* | paste
http://ix.io/4u68
CoreELEC:~ # dmesg | paste
http://ix.io/4u69
SDIO_ID=8888:8888
Discussed multiple times. No BT and Wifi driver is also not the “best”…
The situation with this Amlogic W1 chip will not improve.
mszs
23 April 2023 18:29
743
“will not improve”
I read somewhere that Amlogic has in the past released some source code. Do you think that things have changed, or what do you mean when you say will not improve?
gujal
27 April 2023 20:41
744
Any chance the source code for the W1-AML chip available here?
http://openlinux.amlogic.com/Android/Mbox/10.0_ReleaseInfo
Thanks
Hi guys.

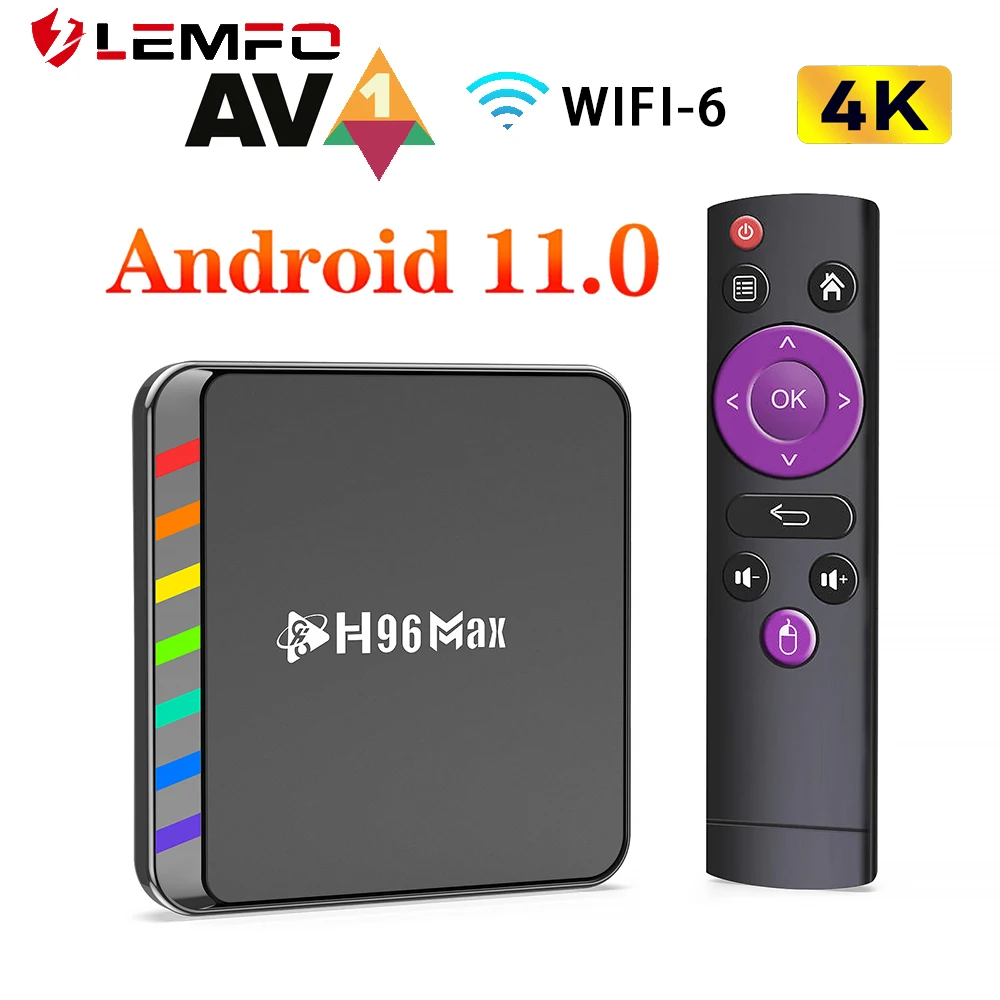

I’m considering to buy a H96 Max W2, since it’s the only TV Box I found with the S905W2 SoC and WiFi 6. It’s also very cheap at around 38 euros for the 4 GB of RAM and 64 GB of internal storage version.
I’m just wondering if anybody else got one and if WiFi is working on CoreELEC. Thanks!
ruz88
23 May 2023 04:39
746
X96 X4 TV box v1.3 (spec S905X4_4GB_64GB_1Gb LAN) running v21.0 Alpha1 release.
[on sc2_s905x4_4g_1gbit DTB file]
BT adapter not found error
LAN port not working
WiFi working
[on sc2_s905x4_4g DTB file]
BT adapter not found error
LAN working
WiFi working
I have no idea on the WiFi/BT chipset model. How to check without opening the case?
Go to post # 1 of 719
There is command for ssh
Click on 719
Jump to 1
1 Like
