3D Frame Packed (MVC) output with CoreELEC?

That means, the current dev-builds in this thread need to update from a 19.5 version, although they are named 21.1? Or does this not make a difference? I would assume it does?

1 Like

Well, this is what I have done and it works. Give it a try, who knows?

If you read the posts in this thread you will see that, after CE 9.2.8, @Portisch made the first tar using 19 Matrix

Yeah I read that a while ago, but assumed it was since changed to CE21 due to the naming of the files. I will test with 19.5 today :-). Thanks for the heads up!

For me it plays just normal on my test equipment with the FSBS sample:


It looks same as the HSBS sample.

1 Like

Same here very good.
May I ask what is your 3d TV?
Also How you get all those infos on top of image?

Now include the Vertex and I see the crash with FSBS.
It’s because now the TV “support” 4k to and this resolution is chosen. But it should choose 1080p24hz.

So, I tested with a base version CE19.5, updated to latest dev build from here.

I am getting the exact same result, whenever the resolution tries to switch, everything from the UI freezes. I made short videos to show whats happening. I guess, this is related to the Ugoos as it seems to work fine on other hardware?

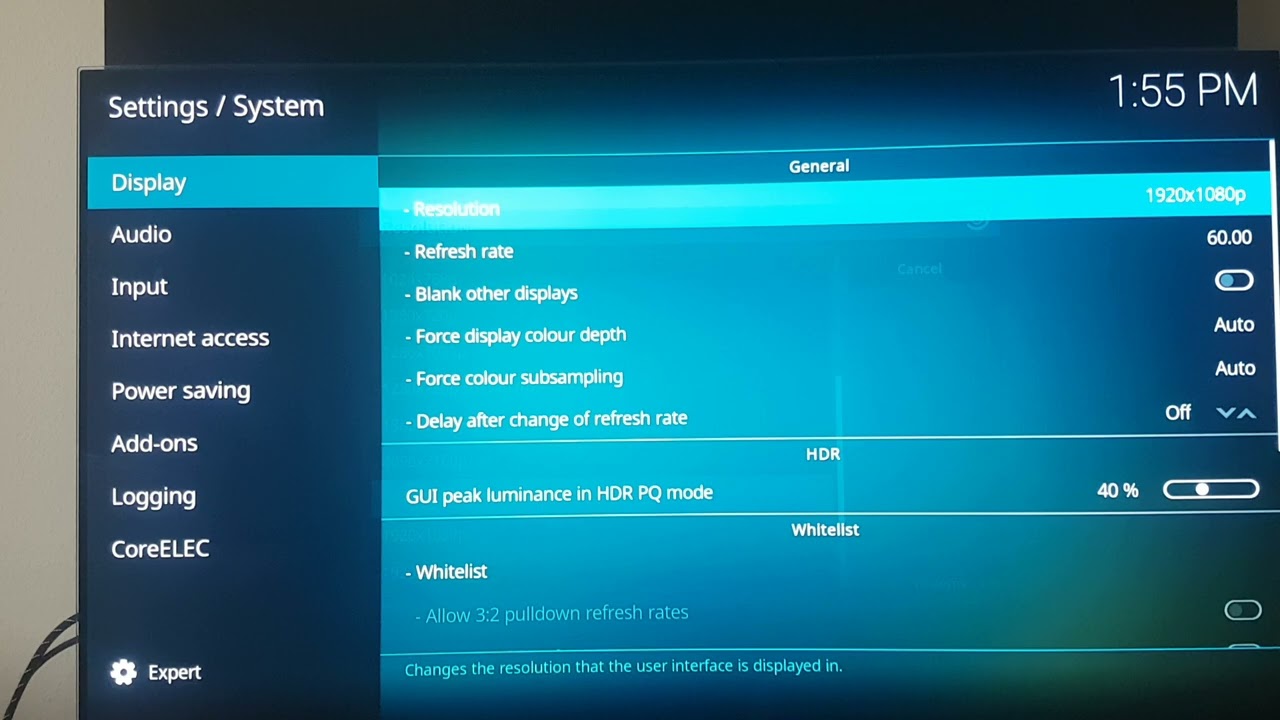

First video shows the resolution change in Kodi itself, you can hear the UI sounds, but everything is frozen until it reverts back to 1920x1080p.

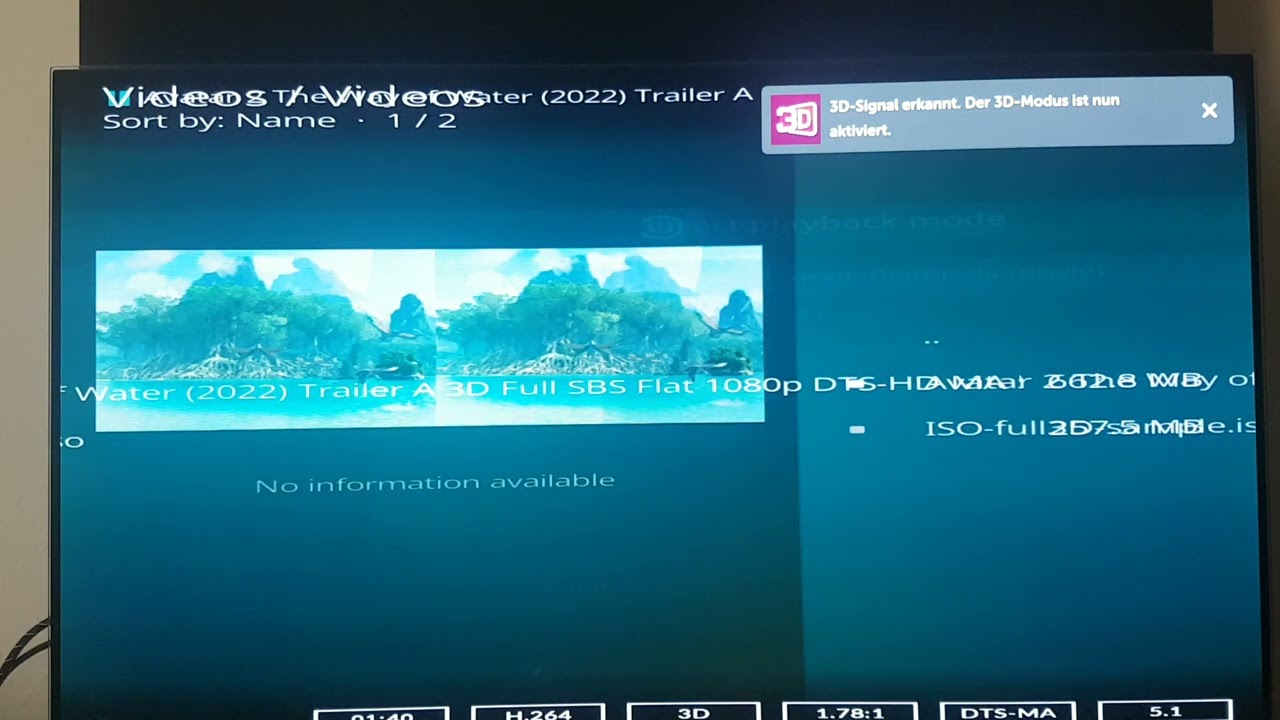

Second video shows what happens, when I start the Full SBS Sample, one more click to confirm the “preferred mode”, which you cannout really see due to the frozen UI. My TV detects, that something changes to 3D, but the UI is frozen on top. You can hear the sound, so the video is playing. You can then hear me navigating to the stop button blindly to stop the video and return to the (now completely messed up) UI. The messing up of the UI also happens in the current nightly for all non-MVC 3D-files, so thats not new :-).

As said previously, I am using a Ugoos AM6B+ (S922XJ) in combination with an LG E6 TV.

@Portisch: Would logfiles help? If so, what do you need?

And as mentioned before, I am more than happy to ditch Full SBS support, if we can keep MVC ;-).

2nd video due to new user limitation in posting here^^

I dont think it should choose normal 1080p for FSBS? It should do 3840x1080p (also called 1080p 3D), which is a HDMI standard defined in HDMI1.4

My screen does not have such resolution, share your EDID:

This is the rawedid-dump:

00ffffffffffff001e6d010001010101011a010380a05a780aee91a3544c99260f5054a108003140454061407140818001010101010108e80030f2705a80b0588a0040846300001e023a801871382d40582c450040846300001e000000fd003a3e1e883c000a202020202020000000fc004c472054560a20202020202020019f020367f1586160101f0413051403021220212215015d5e5f6566626364293d06c015075009570778030c002000b83c20c08a010203040140fff028103810263667d85dc401788003e200cfe305c000e3060d01e40f030018ee0146d00024180900ad5244a9230c662150b051001b304070360040846300001e00000000000006

I need to rework this whole resolution choose a bit as now it choose res and switch like to 1080p24hz from GUI 1080p60. Then the stereo mode selection comes up and the resolution is chosen again.

No problem here on your 9.2.8, although gui is mess after play stops.
But I’m telling you @Portisch your 9.2.8 is a thing of beauty & should be the benchmark to code upto CE21/22.



Btw @Xenothar any instructions on how to make a 3D full SBS like this Avatar, it seems better than 1080p MVC.

@xmlcom
Is your 3D TV also 4K like that of @Xenothar?

1 Like

Yes lg c6 is an e6 little sister but I’m telling you the 3d 2160p is amazing!
Btw i don’t know that film you asked earlier, if you do find out pls let us know, it seems an amazing 3d.

Yes. Years ago i had an E6 too and agree with you. Had also many problems with many 3D films. In the end I watched the Panasonic which is 1080 active and not passive like E6, if I remember well, and in the end sold the LG and welcome to Panny.
I have send today a request to you for the title of a film that you have made a short iso here, asking which film is that, I dont know it but I would like to find it.

Hi see my reply above, no lol i did not make it. Got most of it from here:https://kodi.wiki/view/Samples#3D_Test_Clips.
