FEL - Amlogic NO support

[Vasco]

Please use this thread to discuss and debug the newly arrived support for FEL in Amlogic NO.

For FEL support CORRECT dovi.ko module must be used: download it from FEL - Amlogic NO support - #3 by vpeter

doesn’t have FEL support:
S5 - S928X
T7 - A311D2

All “FEL is not working.. What is wrong…” question without logs or log snippets will be ignored.

[danalderman]

I’ve updated to the latest build and run the FEL test video but I don’t see the camera woman. Could I perhaps have the wrong dovi.ko? AM9 Pro → Sony X90K

My dmesg says:

\[   12.724930\] dovi_gen_5_15_stb26: disagrees about version of symbol module_layout
\[   12.724946\] please rebuild ko: dovi_gen_5_15_stb26
\[   12.724953\] dovi_gen_5_15_stb26: module license ‘AML’ taints kernel.
\[   12.724954\] Disabling lock debugging due to kernel taint
\[   12.725453\] dovi_gen_5_15_stb26: disagrees about version of symbol \__stack_chk_fail
\[   12.725457\] please rebuild ko: dovi_gen_5_15_stb26
\[   12.725807\] dovi_gen_5_15_stb26: using CFI init symbol \__cfi_jt_init_module
\[   12.725810\] dovi_gen_5_15_stb26: using CFI exit symbol \__cfi_jt_cleanup_module
\[   12.726152\] \[dovi_gen_5_15_stb26\]: \*\*\* amlogic_dolby_vision_init dv: gen \*\*\*
\[   12.726160\] error: dolby vision get fail ko, version: Shenzhen Sei Robotics Co., Ltd chip_name = gen \[stb:2.6:e\]-\[v1.0\]-\[Tue Aug 27 14:41:20 CST 2024\]-
\[jialong.jiang\]-[ ]-[ ]-[ ]-\[0\]
\[   12.726163\] \*\*\* register_dv_stb2.6_functions.\*\*\*
\[   12.726300\] \[dovi_gen_5_15_stb26\]: Creating DV mp success
\[   12.726496\] \[dovi_gen_5_15_stb26\]: Creating DV mp success
\[   12.726508\] enable DV HLG when stb v2.6. policy 123
\[   12.726513\] efuse_mode=0 reg_value = 0x18
\[   12.726515\] dv capability 7

Thanks for all your hard work and time.

[vpeter]

Source https://www.avsforum.com/threads/ugoos-am6b-coreelec-and-dv-profile-7-fel-playback.3294526/page-639?post_id=64598496#post-64598496

use only module from inside this file Send Files Online 🟢 File Sharing Service FEX.NET

[Gilgamesh]

lesss gooo everyone let’s get together all of the smart ones and forget about past shit and make this as good as AM6B+ NG with current custom builds.

[danalderman]

Working - Thank you!

[crazyturk]

Thanks to the CE team; everything is working fine with the FEL videos, the software provided today, and the 5.15_2.6_dovi_patched.ko file.

[clarkss12]

Installed the updated files an now the lady with the camera is showing at the 80 second mark. Using the Ugoos AM9 pro.

Thank you……….. awesome

[saxman]

I cant get it to work on ugoos sk1. I cant see the lady at 80s mark. I am using new patched dovi.ko

[chuckster]

@saxman

sk1

It’s not supposed to work on SK1 as it’s based on the S928X SoC for which FEL is not working (at least for now, devs are trying, but it’s not guaranteed).

[jamal2367]

The initial tests are really promising. FEL works very well on my S922X. I’ll be testing this soon on my new AM9 Pro with the S905X5-J when it’s arrived.

A big thank you to everyone involved who made this possible.

Thank you!

[frodo19]

Thank you to the CE team again!

[ari2asem]

@Vasco can you edit your first post, with adding information for which cpu this NO22 for is, with FEL support.

and CE team and all devs….thanks…

[Vasco]

The post refers to the SOCs that aren’t supported so you can count that all the other licensed ones are.

[ragico]

Thank you so much CE Team. You’re the Best.

[crazyturk]

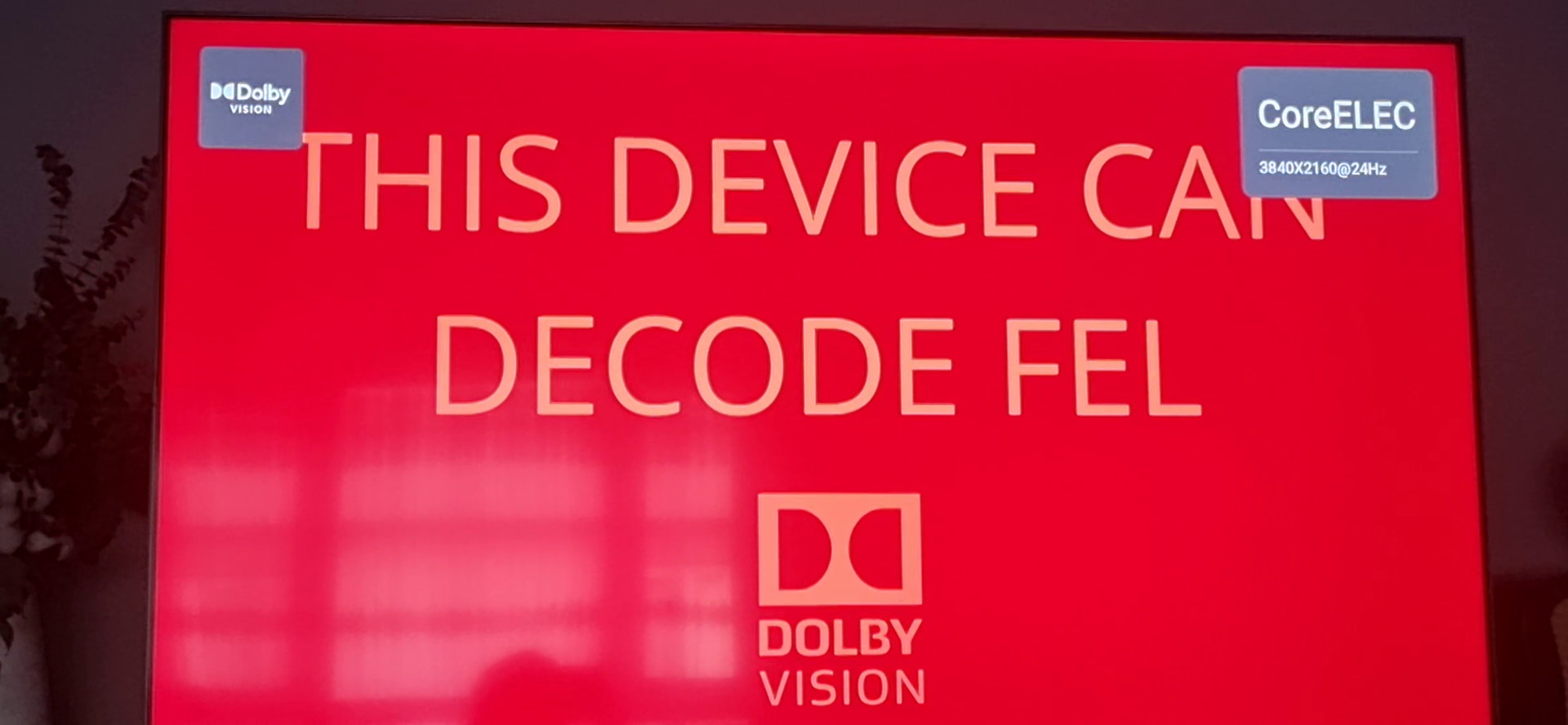

AM9 Pro FEL Video

[colorezu]

Hi, I cannt manage to install CoreElec into internal memory, I boot from Sd card, do you have any help?

[ragico]

Tested on homatics box r 4k plus and Ugoos AM9 Pro. VC1 codec no longer working. Only audio and black screen. Pity. Thanks again CE Team

[Portisch]

Fixed already in tomorrow nightly.

[ragico]

Thankssssssssssssssss Maestro

[colorezu]

Did U install on Sd Card or Internal?
