Thanks again and Happy Hanukkah/Xmas to you and everyone else.
So I ran cat /sys/kernel/debug/gpio and got command not found, great. However I noticed terminal emulator listed it as a A95X_R2 so I tried that config and DTB and it worked, time, colon, icons etc all great. You can update that Config to say it also works on the Goobang Doo XB-III.
Hello!
Does the display work with X96 Air 2/16 version?
Yes it does.
I tried this VFD, x96max_vfd.zip.
My screen is dark.
Read up (or search) in this thread, this box has been mentioned.
I tried all x96 max vfd.conf, didn’t work none.
Make sure that you’re on the latest nightly, then use this vfd:
x96-max-1gbit-vfd.conf
Can you post the output of cat /sys/kernel/debug/gpio in Android?
Like here
I think this box has the same problem as another variation of a X96, where we couldn’t figure out how to get it to work. Look for JohnBoyz posts in this thread.
Please test with this one and let me know if it works.
g12b_a311d_khadas_vim3.zip
I have a TX3 (S905X3) 4\32G and I managed to create a vfd file that works.
TX3(S905X3)vfd.conf (1.2 KB)
Thanks TheCoolest. That works fine.
The fix will be in tomorrow’s nightly build, so I you don’t need this experimental DTB anymore.
1 Like
Will there be patch for X96 Air 2/16G version too?

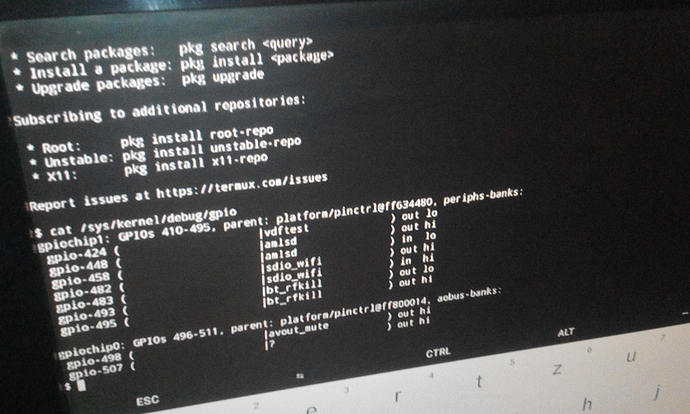

The difference:
X96 MAX gpio-474
My X96 Air gpio-424 port
No, we were never able to get the vfd to work on that box.
The .dtb modification required.
It’s not a DTB problem. There is no way to determine which pins the vfd controller uses.
