Time is correct shown.
Wifi, Play and Pause shown too.
It’s look like everything works correctly.
1 Like
Great, thanks.
I pushed this config to the rerpository.
Thank you very much.
I am pleased that another piece will be added to the repository.
I still have to figure out why DVB-T, DVB-S tuners do not work.
Hii notFound, do you still have the vfd.conf file for Tanix tx5 plus. Can’t download the link you posted. I have try a few for tanix and none works.
Use the TX5 Max config and remember to install vfd from repo.
Works for me with TX Mini, Max and Plus.
Thank you so much for the reply. I have try all of the Tanix files and only 1 works for me was the tx5 pro.
It’s works well but it’s in 24 hour time. Just wondering is there support for 12 hour clock?
1 Like
12 hour display is not supported right now.
Thank You, You guys are doing a wonderful jobs.
Hi Guys,
I’ve been trying to get OpenVFD working on a Z69 Pro 2GB just like @jimbo3146 did in his topic. Unfortunately just as he was unsuccessful I can’t get it to work either
.
To make sure this device also contained the fd628 chip I opened the case, and discovered that it did indeed contain the fd628. I’ve checked the dtb → dts file and at the very last line it does mention fd628:
fd628_dev {
compatible = "amlogic, fd628_dev";
status = "okay";
clk_pin = <0x28 0x5f 0x00>;
dat_pin = <0x28 0x60 0x00>;
stb_pin = <0x28 0x61 0x00>;
};
But these pins do not seem to work. I did however notice that the dts file lists a different id than CoreELEC advises:
model = "Amlogic";
compatible = "amlogic, Gxbb";
amlogic-dt-id = "gxl_p281_2g";
I tried that one as well but to no avail. Unfortunately there are no debug kernel options enabled in Android So I cannot see which GPIO’s are assigned in /sys/kernel/debug/gpio so that’s no good either. Then I looked at a debug app which instructed me to place a empty file with the name .AMLCOPYLOGS on a external storage media after which it copied some logfiles to that medium. It did include a dmesg which I hoped would show some references of SPI or fd628 but it didn’t. Only some mention of FD628_Demo:
[ 7.590398@3] type=1400 audit(1420070413.430:16): avc: denied { read write } for pid=4058 comm="FD628_Demo" name="fd628_dev" dev="tmpfs" ino=176 scontext=u:r:fd628:s0 tcontext=u:object_r:device:s0 tclass=chr_file permissive=1
[ 7.592757@3] type=1400 audit(1420070413.430:17): avc: denied { open } for pid=4058 comm="FD628_Demo" path="/dev/fd628_dev" dev="tmpfs" ino=176 scontext=u:r:fd628:s0 tcontext=u:object_r:device:s0 tclass=chr_file permissive=1
[ 7.593019@3] type=1400 audit(1420070413.440:18): avc: denied { read } for pid=4072 comm="FD628_Demo" name="operstate" dev="sysfs" ino=12666 scontext=u:r:fd628:s0 tcontext=u:object_r:sysfs:s0 tclass=file permissive=1
[ 7.593689@3] type=1400 audit(1420070413.440:19): avc: denied { open } for pid=4072 comm="FD628_Demo" path="/sys/devices/c9410000.ethernet/net/eth0/operstate" dev="sysfs" ino=12666 scontext=u:r:fd628:s0 tcontext=u:object_r:sysfs:s0 tclass=file permissive=1
[ 7.593895@3] type=1400 audit(1420070413.440:20): avc: denied { getattr } for pid=4072 comm="FD628_Demo" path="/sys/devices/c9410000.ethernet/net/eth0/operstate" dev="sysfs" ino=12666
[ 8.402648@0] type=1400 audit(1420070414.240:36): avc: denied { getattr } for pid=4072 comm="FD628_Demo" path="/sys/devices/c9410000.ethernet/net/eth0/operstate" dev="sysfs" ino=12666 scontext=u:r:fd628:s0 tcontext=u:object_r:sysfs:s0 tclass=file permissive=1
[ 8.451112@0] type=1400 audit(1420070414.340:37): avc: denied { getattr } for pid=4105 comm="bootanimation" path="/vendor" dev="rootfs" ino=1031 scontext=u:r:bootanim:s0 tcontext=u:object_r:rootfs:s0 tclass=lnk_file permissive=1
[ 8.923073@3] type=1400 audit(1420070414.810:38): avc: denied { read } for pid=4072 comm="FD628_Demo" name="operstate" dev="sysfs" ino=12666 scontext=u:r:fd628:s0 tcontext=u:object_r:sysfs:s0 tclass=file permissive=1
[ 8.940545@2] type=1400 audit(1420070414.810:39): avc: denied { open } for pid=4072 comm="FD628_Demo" path="/sys/devices/c9410000.ethernet/net/eth0/operstate" dev="sysfs" ino=12666 scontext=u:r:fd628:s0 tcontext=u:object_r:sysfs:s0 tclass=file permissive=1
[ 8.963356@3] type=1400 audit(1420070414.810:40): avc: denied { getattr } for pid=4072 comm="FD628_Demo" path="/sys/devices/c9410000.ethernet/net/eth0/operstate" dev="sysfs" ino=12666 scontext=u:r:fd628:s0 tcontext=u:object_r:sysfs:s0 tclass=file permissive=1
Which seems to be a process that makes use of /dev/fd628_dev:
CPU usage from 1224467ms to 322723ms ago (2015-01-01 00:30:25.759 to 2015-01-01 00:45:27.502):
6.5% 4058/FD628_Demo: 0.7% user + 5.8% kernel / faults: 6 minor
Decompiling that APK won’t help me much I suppose, since it interfaces with /dev/fd628_dev directly and does not use the GPIO’s.
So long story short, I would really like to get the display working since that’s the only physical sign that the device is turned on (without turning on the TV ofcourse
) but I’m out of options
Which version of CE are you using? And which DTB file?
Which SoC does your box use? You can see that in system information screen in CE itself.
Have you tried the vfd.conf file in the thread you’ve linked? Are you getting the same error as jimbo?
Also, what happens when you run cat /sys/kernel/debug/gpio in Terminal Emulator in Android?
Which version of CE are you using?
I’m running the lastest -ng release:
CoreELEC (official): 19.3-Matrix (Amlogic-ng.arm)
And which DTB file?
I’m currently using gxl_p212_2g like is advised on the Device Trees page:
Z69 S905X 2G gxl_p212_2g
Edit: Now I do however notice that the Z69 mentions the S905X, while my board seems to use the S905W.
But i’ve also tried gxl_p281_2g since it was mentioned in the decompiled android dtb file.
Still this made no difference.
Which SoC does your box use?
coreelec:~ # cat /proc/cpuinfo
model name : Amlogic S905W rev d
Hardware : Amlogic
Revision : 0400
Have you tried the vfd.conf file in the thread you’ve linked?
Yes, I did and same result no life on the display.
Are you getting the same error as jimbo?
Not quite but very similar:
[ 12.736942@2] OpenVFD: Version: V1.3.0
[ 12.736957@2] OpenVFD: vfd_gpio_clk: #0 = 0x00; #1 = 0x5F; #2 = 0x00;
[ 12.736962@2] OpenVFD: vfd_gpio_dat: #0 = 0x00; #1 = 0x60; #2 = 0x00;
[ 12.736967@2] OpenVFD: vfd_gpio_stb: #0 = 0x00; #1 = 0x61; #2 = 0x00;
[ 12.736972@2] OpenVFD: vfd_gpio0: #0 = 0x00; #1 = 0x00; #2 = 0xFF;
[ 12.736976@2] OpenVFD: vfd_gpio1: #0 = 0x00; #1 = 0x00; #2 = 0xFF;
[ 12.736981@2] OpenVFD: vfd_gpio2: #0 = 0x00; #1 = 0x00; #2 = 0xFF;
[ 12.736985@2] OpenVFD: vfd_gpio3: #0 = 0x00; #1 = 0x00; #2 = 0xFF;
[ 12.736989@2] OpenVFD: vfd_gpio_protocol: #0 = 0x00; #1 = 0x00;
[ 12.736995@2] OpenVFD: vfd_chars: #0 = 0x00; #1 = 0x01; #2 = 0x02; #3 = 0x03; #4 = 0x04;
[ 12.737003@2] OpenVFD: vfd_dot_bits: #0 = 0x00; #1 = 0x01; #2 = 0x02; #3 = 0x03; #4 = 0x04; #5 = 0x05; #6 = 0x06;
[ 12.737008@2] OpenVFD: vfd_display_type: #0 = 0x01; #1 = 0x00; #2 = 0x00; #3 = 0x00;
[ 12.737015@2] OpenVFD: Detected gpio chips: periphs-banks, aobus-banks.
[ 12.737022@2] OpenVFD: "periphs-banks" chip found. base = 401, pin count = 100, pin = 95, offset = 496
[ 12.737026@2] OpenVFD: "periphs-banks" chip found. base = 401, pin count = 100, pin = 96, offset = 497
[ 12.737029@2] OpenVFD: "periphs-banks" chip found. base = 401, pin count = 100, pin = 97, offset = 498
[ 12.737032@2] OpenVFD: Skipping vfd_gpio0 evaluation (0xFF)
[ 12.737034@2] OpenVFD: Skipping vfd_gpio1 evaluation (0xFF)
[ 12.737036@2] OpenVFD: Skipping vfd_gpio2 evaluation (0xFF)
[ 12.737038@2] OpenVFD: Skipping vfd_gpio3 evaluation (0xFF)
[ 12.737057@2] wifi is using the pin GPIOX_16 as pinmux
[ 12.737071@2] meson-gxl-pinctrl pinctrl@4b0: request() failed for pin 95
[ 12.737076@2] meson-gxl-pinctrl pinctrl@4b0: pin-95 (periphs-banks:496) status -22
[ 12.737080@2] OpenVFD: can't request gpio of gpio_clk
[ 12.737107@2] openvfd: probe of openvfd failed with error -22
what happens when you run
cat /sys/kernel/debug/gpioin Terminal Emulator in Android?
I tried but my Android kernel does not seem to have debug compiled in, I’m not very familiar with android maybe this have to be turned-on somehow? Right now the entire path /sys/kernel/debug is non existent.
Can you post the android dtb file? I’d like to take a look and compare.
Yeah sure.
Side note: I’ve dumped them from within CoreELEC using dd if=/dev/dtb of=/tmp/dtb.img since I had no access to /dev/dtb from Android.
I would like to attach the files, but since I’m a new user I am unable to, can you enable this for me?
I’ve 3 files to attach:
- an original dump.
- a dump with corrected header, otherwise
dtcwas not able do decompile thedtbfile. - a decompiled dts file.
Edit:
I’ve uploaded a .zip file containing all 3 files to github: Z69_Pro_dts.zip
Ok, try this dtb in CE and the vfd.conf file from the other thread.
gxl_p212_2g_nowifi.zip (13.9 KB)
Thanks for your help
.
Unfortunatly the screen is still off :
[ 12.860809@2] OpenVFD: Version: V1.3.0
[ 12.860836@2] OpenVFD: vfd_gpio_clk: #0 = 0x00; #1 = 0x5F; #2 = 0x00;
[ 12.860841@2] OpenVFD: vfd_gpio_dat: #0 = 0x00; #1 = 0x60; #2 = 0x00;
[ 12.860847@2] OpenVFD: vfd_gpio_stb: #0 = 0x00; #1 = 0x61; #2 = 0x00;
[ 12.860853@2] OpenVFD: vfd_gpio0: #0 = 0x00; #1 = 0x00; #2 = 0xFF;
[ 12.860858@2] OpenVFD: vfd_gpio1: #0 = 0x00; #1 = 0x00; #2 = 0xFF;
[ 12.860863@2] OpenVFD: vfd_gpio2: #0 = 0x00; #1 = 0x00; #2 = 0xFF;
[ 12.860868@2] OpenVFD: vfd_gpio3: #0 = 0x00; #1 = 0x00; #2 = 0xFF;
[ 12.860872@2] OpenVFD: vfd_gpio_protocol: #0 = 0x00; #1 = 0x00;
[ 12.860878@2] OpenVFD: vfd_chars: #0 = 0x00; #1 = 0x01; #2 = 0x02; #3 = 0x03; #4 = 0x04;
[ 12.860886@2] OpenVFD: vfd_dot_bits: #0 = 0x00; #1 = 0x01; #2 = 0x02; #3 = 0x03; #4 = 0x04; #5 = 0x05; #6 = 0x06;
[ 12.860892@2] OpenVFD: vfd_display_type: #0 = 0x01; #1 = 0x00; #2 = 0x00; #3 = 0x00;
[ 12.860903@2] OpenVFD: Detected gpio chips: periphs-banks, aobus-banks.
[ 12.860916@2] OpenVFD: "periphs-banks" chip found. base = 401, pin count = 100, pin = 95, offset = 496
[ 12.860920@2] OpenVFD: "periphs-banks" chip found. base = 401, pin count = 100, pin = 96, offset = 497
[ 12.860924@2] OpenVFD: "periphs-banks" chip found. base = 401, pin count = 100, pin = 97, offset = 498
[ 12.860927@2] OpenVFD: Skipping vfd_gpio0 evaluation (0xFF)
[ 12.860929@2] OpenVFD: Skipping vfd_gpio1 evaluation (0xFF)
[ 12.860932@2] OpenVFD: Skipping vfd_gpio2 evaluation (0xFF)
[ 12.860934@2] OpenVFD: Skipping vfd_gpio3 evaluation (0xFF)
[ 12.861030@2] OpenVFD: can't request gpio of dat_pin
[ 12.861096@2] openvfd: probe of openvfd failed with error -22
But the line mentioning the WiFi GPIO is indeed gone, but now something is claiming the dat_pin?.
Does the box have bluetooth?
No, not that I know of at least.
I’ve opened the box to have a look at the LCD screen (which had a fd628) and only saw one chip that had an antenna attached SV6051P that to me seems like a WiFI only chip.
Ok, I removed the bt entry in the DTB, which seems to hog the dat pin.
Let’s see if this makes any difference.
gxl_p212_2g_nowifi2.zip (13.8 KB)
1 Like
GREAT! making progress here.

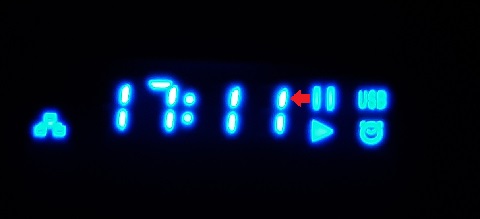

The screen turns on but some of the characters are incorrectly displayed:
The character with the arrow blinks and the time should be 17:10 instead of 17:11, also there is no USB attached at the moment neither am I playing a movie so pause and play shouldn’t be on?
