Kinhank G1

Fixed by Portisch, see Kinhank G1 - #77 by Portisch
Kinhank G1 - #99 by Portisch

Unfortunately this is not the case.
I using this dtb file does not solve the wifi problem.
As I wrote earlier, Wi-Fi and Bluetooth appear randomly.

After one turn on there is no Wi-Fi/Bluetooth and the next time it works fine.
It looks as if the drivers sometimes loaded and sometimes didn’t.

Perhaps there is a way around this inject bl301

I have Meredo Sound Bar that comes with infra red remote control
Have not used in awhile
Hooked it up today
Used remote control power button

Sound Bar turned on
As well as Kinhank G1

Tested multiple times
Wake from suspend
Wake from System Power Off

Works every time

Is there a way to capture this event ?
Command?
Would it be useful?

I have no linux machine
Limited to Windows
Putty

Its unfortunate you are having issues with wifi/bluetooth

Working on my Box
Both

G1 remote does not always pair

Sometimes after shutdown
When power back on

Connections/Network
Will only show
Ethernet
2.4 Ghz wifi

Click on any Connections
Refresh

Wifi list/available networks
Will populate

Other than that
All good

Isn’t it sometimes the case that G1 is turned on via HDMI CEC?

After pressing “power”, does the G1 device turn on immediately or only after a short while?

In my case, the Amazon Firestick remote control, after pressing the power button, turns on the TV, which in turn wakes up the Kinhank G1 device via HDMI CEC.

For some reason, I am not able to do the same with the original Kinhank G1 remote control.

Freddy, please check if after pressing the power button, the kinhank turns on as the first of the connected devices.

I do not use HDMI CeC

I have disabled the adapter in CoreELEC

Then you’re probably actually turning on the G1 via IR.

Can you take a photo of the remote control and write the model of the device?

Of course iam .

The ir signal from Meredo Sound Bar Remote

Is triggering event code 116 in G1

Event code 116 is almost always Power in ir config

I did see event code 536??? In Log from Zuma
Is Power _2

Wonder if that is Power switch on front of Box.

Edit: Event Code 356 not 536

for me on android
remote G1 ir wakes up my TCL, but remote TCL not wakes G1

Portisch,This dtb doesn’t work on emuelec.
The screen locks, what works is dtb sc2_s905x4_4g.dtb.
This starts the emuelec system but the wifi and bluetooth do not work

this wrong .dtb
correct dtb from tree folder with name kinhank g1

You can’t use coreELEC NE DTB Files for emuElec NG … Maybe I’m wrong …

Was referring to CoreELEC with IR infra red remote config .

In Android G10 works perfectly

For IR Config iam using Dune Homatics 4k Plus

remote.conf (1.5 KB)

For some reason my Meredo Sound Bar IR Remote Control Power Button

Wakes G1 from Suspend
Also from System Power Off

** I do not use HDMI CeC
I have disabled adapter in CoreELEC

Just for your info, how i am using my kinhank with ce with a tv remote controller :slightly_smiling_face:
I am using only my philips tv remote controller. When I turn on my tv right after that my avr and my kinhank is turning on an I can manage my tv and my kinhank only with this tv remote controller.
When I turn off my tv, the avr and kinhank are turned off as well.
The long pess is not working with this rc in ce, so i am using for it my rii i8+ mini keyboard…

2 Likes

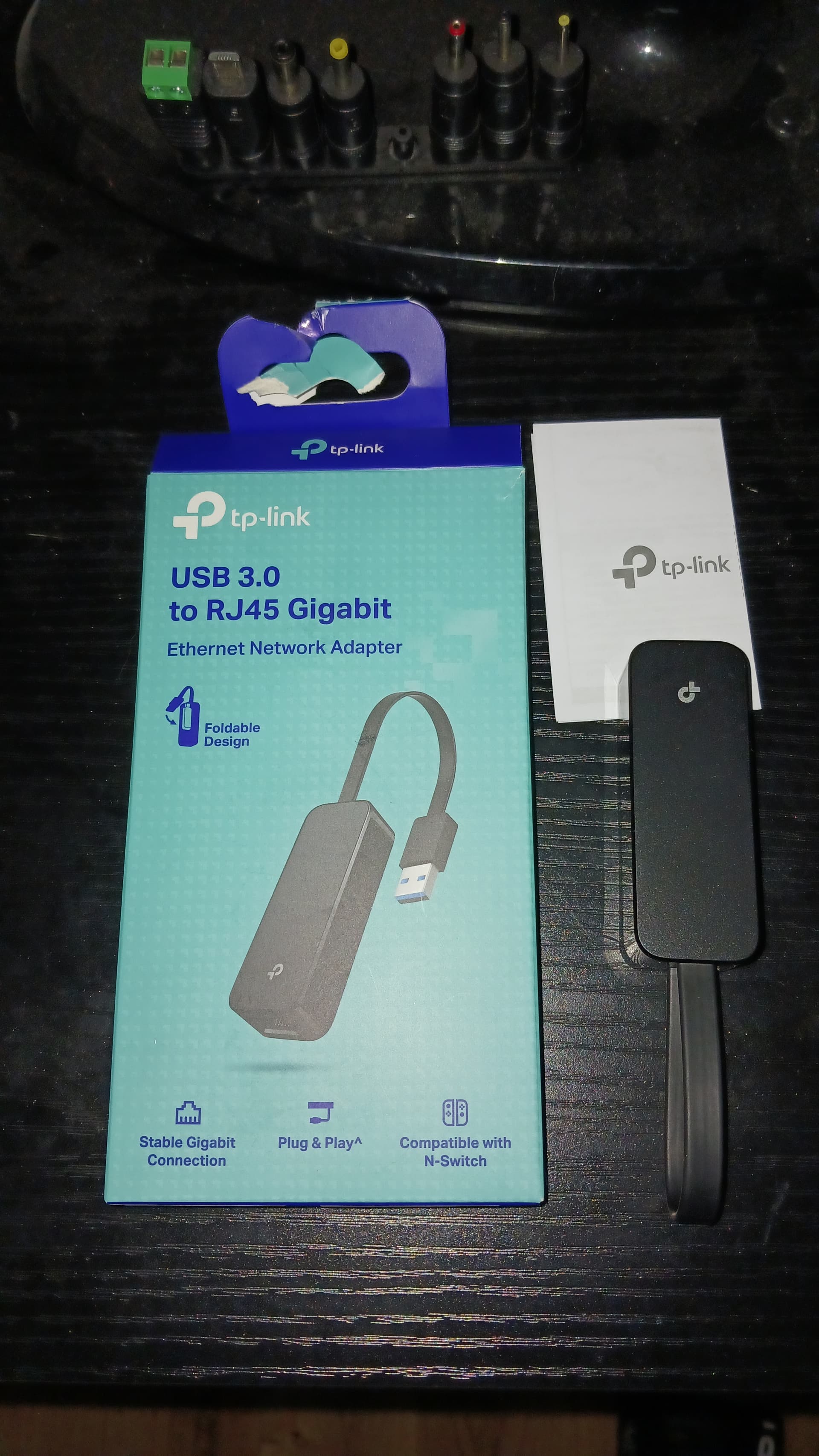

For those dissatisfied/ unhappy with 100 mb Ethernet

Can confirm TP Link Gigabit USB Ethernet Adapter
Model UE 306

Works great on Kinhank G1

Just plug n play !!!

2 Likes

Did you manage to fix dtb to boot correctly?
As I said, this dtb dtb “sc2_s905x4_kinhank_g1_4g_v3.dtb” when started locks the screen and does not exit.
This dtb dtb “sc2_s905x4_4g.dtb” gives the boot but without wi-fi and bluetooth working.

use sc2_s905x4_kinhank_g1_4g from nightly builds
don’t try old dtb from here

ok, I’ll try.
I’ll tell you later if it worked.

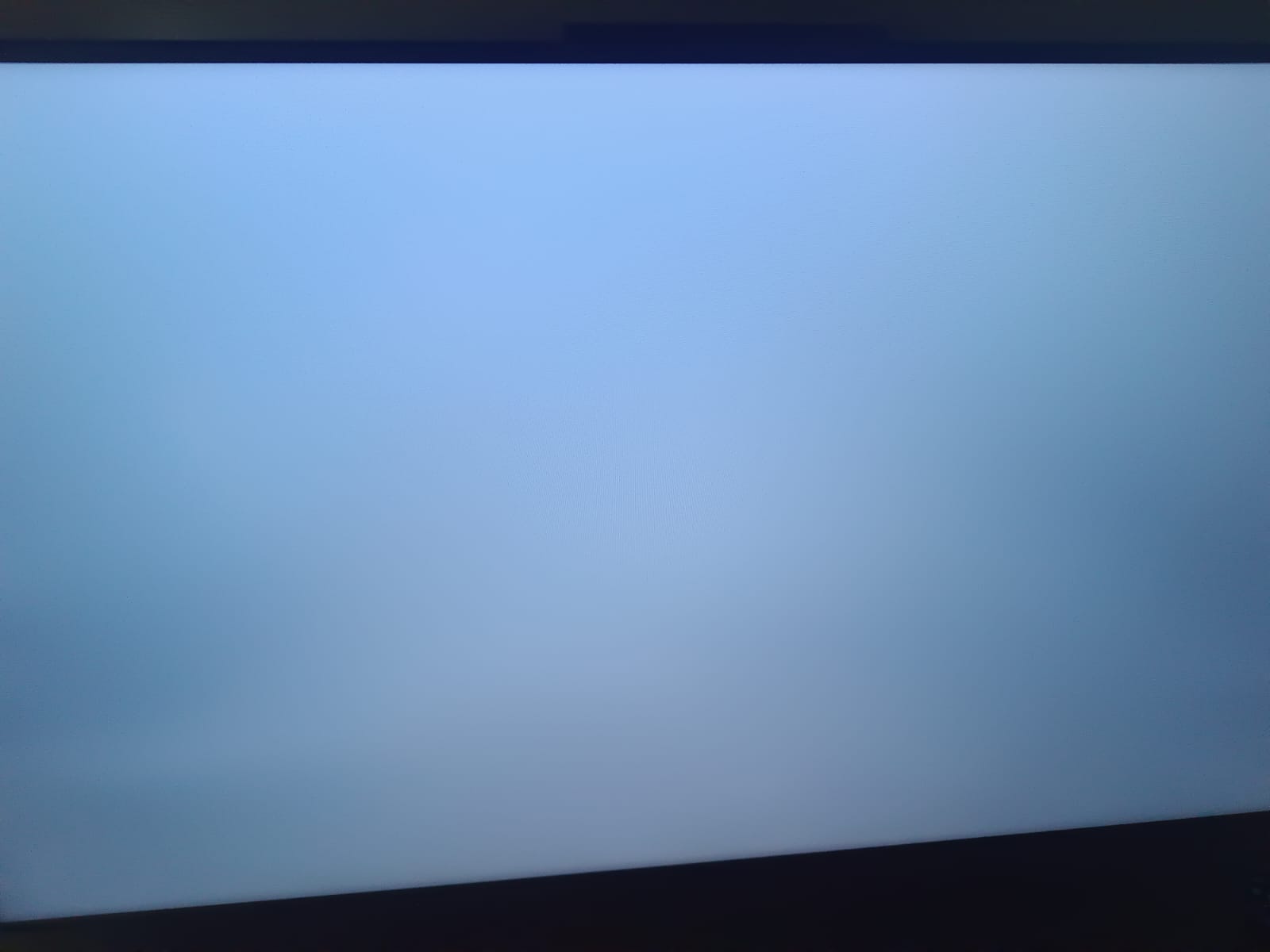

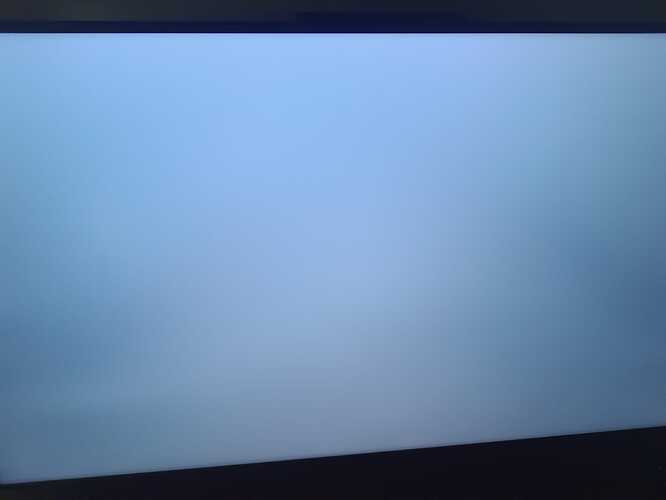

I did the test with the DTB you mentioned and it only stays on this screen

you change name file to dtb.img ?
