@Secam7 Please try with this DTB:
s4_s905w2_2g.dtb (66.5 KB)
Hi,
I tried to install this release to VIM3L eMMC wit OOWOW as mentioned here, but itâs not working.
This is what I tried:
- Format eMMC and install latest Generic image - freeze at Khadas logo
- Install CoreELEC 20 with Wizard to eMMC, reboot to load CE (works fine) â reboot to OOWOW, and write latest Generic image to eMMC - got black image after reboot
- Write CE image to a microSD, boot from it (works fine) â reboot to OOWOW, and write same image to eMMC - black image again.
Every time after I wrote the image file to eMMC, rebooted the OOWOW, mounted the mmcblk1p1 and copied the correct dtb to the root.
Is there anything what I can try?
Thanks!
Same here on Tanix Tx5 Plus Sm1 S905X3
The word Boot is stuck on front display
Clean install.
Yet on SC2 S905X4 both boxes
Open VFD working fine.
Strange it is S905X3 again with issue
I did a clean install and it didnât work the same and passthrough audio didnât work.
And now Iâm back to 20.2-Nexus.
VIM3 isnât supported by image on emmc as it doesnât include a u-boot. Install Android on emmc and CE on external media like USB or uSD. Then use the tool ceemmc to move CE to emmc.
Itâs better, but it still wonât start: amlogic-no.txt (20.7 KB)
The strange thing is that it started once and resized the sd card.
Yes and after resizing it restart itself and then stays on animated CoreELEC logo forever. If you reboot it, stays on black screen with corrupted file system on uSD card.
@Secam7 Please try this new DTB:
s4_s905w2_2g.dtb (66.5 KB)
Please add in config.ini:
coreelec='loglevel=7 nopkmute'
Then it should log everything over UART.
Now it starts, but no wifi: amlogic-no.txt (73.2 KB)
Good, please continue here about WiFi:
Latest nightly from today jan 10
Has fixed reboot /power down issue
ssh reboot
ssh shutdown
ssh shutdown -r
All good
Thank you
X96 AIR P2 (s905x3) and HK1 BOX (s905x3)
CoreELEC-Amlogic-no.aarch64-21.0-Omega_nightly_20240110-Generic.img.gz
sm1_s905x3_4g_1gbit.dtb
You used a USB device?
I have similar issues on BuzzTV HD5 but I have no idea what is wrong yet.
Tried it now, but not works:
CoreELEC:~ # ceemmc
Starting CoreELEC eMMC installation tool...
eMMC size: 0x0003a3e00000 [16GB]
No CoreELEC installation found on eMMC
Install in dual boot mode, CoreELEC and Android on eMMC
Use CoreELEC data from
[1] current used SD or USB device
[2] existing backup on current used SD or USB device
Install in single boot mode, only CoreELEC on eMMC
Use CoreELEC data from
[3] current used SD or USB device
[4] existing backup on current used SD or USB device
Please choose one option? [1/2/3/4]: 3
Free space of 'partition CE_FLASH': 512MB
Warning: Could not find 'dto' partition!
Could not find 'CE_STORAGE' partition!
Failed to read size of partition 'CE_STORAGE'!
Failed to create new partition table!
Android installed with with Amlogic USB Burner Tool, CE in microSD.
Some outputs, if itâs needed:
CoreELEC:~ # df -h
Filesystem Size Used Available Use% Mounted on
devtmpfs 912.3M 4.0K 912.3M 0% /dev
tmpfs 368.4M 15.2M 353.2M 4% /run
/dev/mmcblk1p1 511.7M 275.3M 236.4M 54% /flash
/dev/loop0 248.5M 248.5M 0 100% /
/dev/mmcblk1p2 27.4G 5.4M 27.4G 0% /storage
tmpfs 920.9M 0 920.9M 0% /dev/shm
tmpfs 4.0M 0 4.0M 0% /sys/fs/cgroup
tmpfs 920.9M 4.8M 916.1M 1% /var
tmpfs 920.9M 0 920.9M 0% /tmp
CoreELEC:~ # blkid
/dev/param: UUID="a6f09745-be09-4475-8184-761c14d1523d" BLOCK_SIZE="4096" TYPE="ext4"
/dev/vendor: LABEL="vendor" UUID="0c70056c-5d72-53f7-93e4-c56a1b61e40a" BLOCK_SIZE="4096" TYPE="ext4"
/dev/tee: UUID="70cb25da-e818-4510-9953-622357459b55" BLOCK_SIZE="4096" TYPE="ext4"
/dev/metadata: UUID="598ecf58-c9fa-4d11-9ef7-2c4239d453b7" BLOCK_SIZE="4096" TYPE="ext4"
/dev/system: LABEL="/" UUID="74ab2787-89b4-5f32-9f21-2c085107ac1e" BLOCK_SIZE="4096" TYPE="ext4"
/dev/product: LABEL="product" UUID="06344823-b858-5e63-9bb4-bf477b3d54d4" BLOCK_SIZE="4096" TYPE="ext4"
/dev/cache: UUID="c9c78339-906d-4397-9daf-bada6086c290" BLOCK_SIZE="4096" TYPE="ext4"
/dev/odm: LABEL="odm" UUID="e754e735-ce08-4b2e-9290-b85554b18e98" BLOCK_SIZE="4096" TYPE="ext4"
/dev/data: UUID="07324389-ba6f-4ad1-87ec-edd8e4224862" BLOCK_SIZE="4096" TYPE="ext4"
/dev/mmcblk1p1: SEC_TYPE="msdos" LABEL_FATBOOT="COREELEC" LABEL="COREELEC" UUID="1001-0456" BLOCK_SIZE="512" TYPE="vfat" PARTUUID="948cc562-01"
/dev/mmcblk1p2: LABEL="STORAGE" UUID="35842ba3-a305-44cb-9868-ded16249e0d0" BLOCK_SIZE="1024" TYPE="ext4" PARTUUID="948cc562-02"
/dev/loop0: BLOCK_SIZE="524288" TYPE="squashfs"
CoreELEC:~ # ls /dev/mmcblk*
/dev/mmcblk0 /dev/mmcblk0boot1 /dev/mmcblk1 /dev/mmcblk1p2
/dev/mmcblk0boot0 /dev/mmcblk0rpmb /dev/mmcblk1p1
CoreELEC:~ # mount
devtmpfs on /dev type devtmpfs (rw,relatime,size=934224k,nr_inodes=233556,mode=755)
proc on /proc type proc (rw,relatime)
sysfs on /sys type sysfs (rw,relatime)
tmpfs on /run type tmpfs (rw,nosuid,nodev,size=377200k,nr_inodes=819200,mode=755)
/dev/mmcblk1p1 on /flash type vfat (ro,noatime,fmask=0022,dmask=0022,codepage=437,iocharset=iso8859-1,shortname=mixed,errors=remount-ro)
/dev/loop0 on / type squashfs (ro,relatime,errors=continue)
/dev/mmcblk1p2 on /storage type ext4 (rw,noatime)
tmpfs on /dev/shm type tmpfs (rw,nosuid,nodev)
devpts on /dev/pts type devpts (rw,nosuid,noexec,relatime,gid=5,mode=620,ptmxmode=000)
tmpfs on /sys/fs/cgroup type tmpfs (ro,nosuid,nodev,noexec,size=4096k,nr_inodes=1024,mode=755)
cgroup2 on /sys/fs/cgroup/unified type cgroup2 (rw,nosuid,nodev,noexec,relatime,nsdelegate)
cgroup on /sys/fs/cgroup/systemd type cgroup (rw,nosuid,nodev,noexec,relatime,xattr,name=systemd)
pstore on /sys/fs/pstore type pstore (rw,nosuid,nodev,noexec,relatime)
bpf on /sys/fs/bpf type bpf (rw,nosuid,nodev,noexec,relatime,mode=700)
cgroup on /sys/fs/cgroup/misc type cgroup (rw,nosuid,nodev,noexec,relatime,misc)
cgroup on /sys/fs/cgroup/memory type cgroup (rw,nosuid,nodev,noexec,relatime,memory)
cgroup on /sys/fs/cgroup/devices type cgroup (rw,nosuid,nodev,noexec,relatime,devices)
cgroup on /sys/fs/cgroup/cpu,cpuacct type cgroup (rw,nosuid,nodev,noexec,relatime,cpu,cpuacct)
cgroup on /sys/fs/cgroup/pids type cgroup (rw,nosuid,nodev,noexec,relatime,pids)
cgroup on /sys/fs/cgroup/freezer type cgroup (rw,nosuid,nodev,noexec,relatime,freezer)
cgroup on /sys/fs/cgroup/rdma type cgroup (rw,nosuid,nodev,noexec,relatime,rdma)
cgroup on /sys/fs/cgroup/cpuset type cgroup (rw,nosuid,nodev,noexec,relatime,cpuset)
mqueue on /dev/mqueue type mqueue (rw,nosuid,nodev,noexec,relatime)
debugfs on /sys/kernel/debug type debugfs (rw,nosuid,nodev,noexec,relatime)
tracefs on /sys/kernel/tracing type tracefs (rw,nosuid,nodev,noexec,relatime)
tmpfs on /var type tmpfs (rw,relatime)
configfs on /sys/kernel/config type configfs (rw,nosuid,nodev,noexec,relatime)
fusectl on /sys/fs/fuse/connections type fusectl (rw,nosuid,nodev,noexec,relatime)
tmpfs on /tmp type tmpfs (rw,nosuid,nodev,nr_inodes=1048576)
sunrpc on /run/nfs/rpc_pipefs type rpc_pipefs (rw,relatime)
nfsd on /proc/fs/nfsd type nfsd (rw,relatime)
Yes, USB device

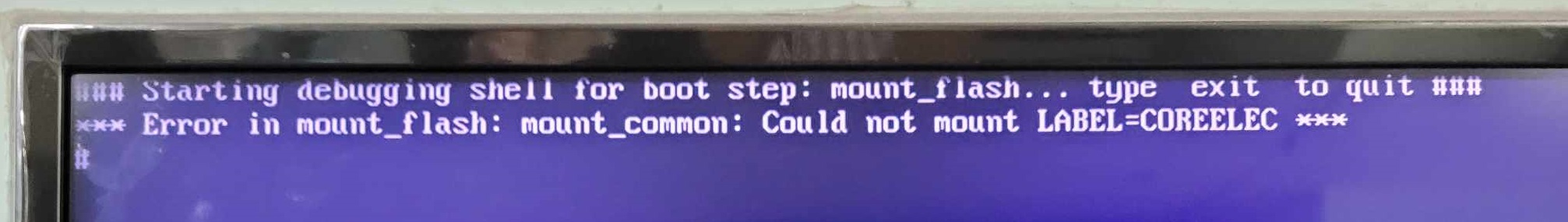

I have this mount problem with a 64 GB SD card but not with a 32 GB SD card.
If I free the USB ports on the device, there is no mount problem with a 64 GB SD card.
If I want to run it through the USB port it boots without any problems.
I am currently running it with a 32 GB SD card without any problems.
My device: GT KÄ°NG II
Same issue with latest build , sd card in a usb holder. Similar s905x3 4gb
How to make clear install CoreELEC 20.3 Amlogic-no on Odroid-N2 while on download page Releases ¡ CoreELEC/CoreELEC ¡ GitHub it is available CoreELEC-Amlogic-ng.arm-20.3-Nexus-Odroid_N2.img.gz to download only.
Its not clear at least to me.
Also I did âin-placeâ update from 20.2 to 20.3 and there is no issues so why clear install is needed?
Clean install with Amlogic-no
Did you understand what I have written?
Show me where is Amlogic-no version for Odroid-N2.
